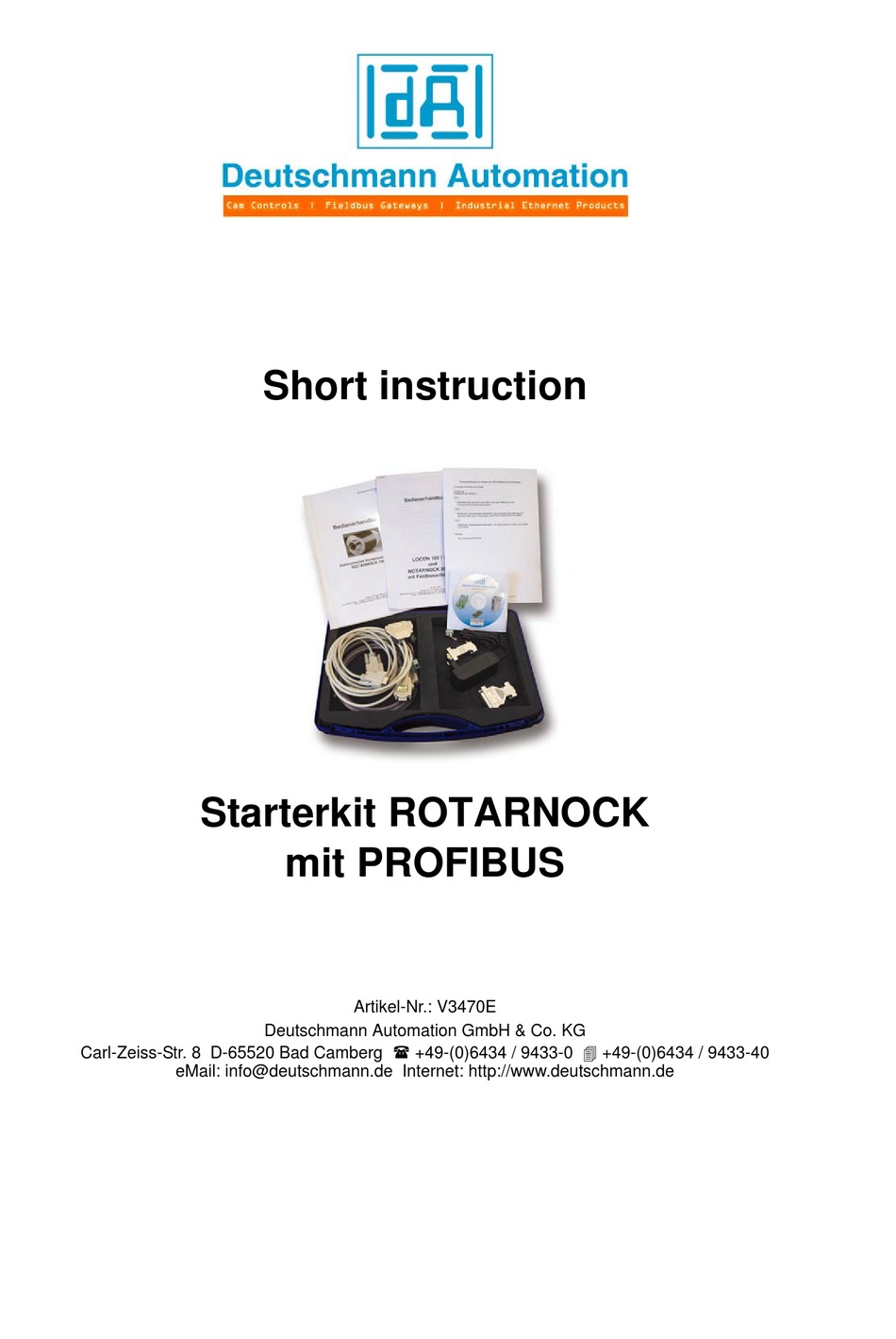

- Page 1 Short instruction Starterkit ROTARNOCK mit PROFIBUS Artikel-Nr.: V3470E Deutschmann Automation GmbH & Co. KG Carl-Zeiss-Str. 8 D-65520 Bad Camberg +49-(0)6434 / 9433-0 +49-(0)6434 / 9433-40 eMail: info@deutschmann.de Internet: http://www.deutschmann.de...
-
Page 2: Table Of Contents
Deutschmann Automation GmbH & Co. KG Introduction ......... . . 4 Generating an AWF-file automatically through WINLOC32 . - Page 3 Deutschmann Automation GmbH & Co. KG Starterkit ROTARNOCK with PROFIBUS V. 1.2 3.12.13...
-
Page 4: Introduction
Deutschmann Automation GmbH & Co. KG Introduction 1 Introduction In order to be able to follow this brief instruction step-by-step you have to install a few software programs on your PC: Programming software „WINLOC32“ on the Support CD under: \Software\WINLOC\32Bit\SETUP_WINLOC_29*_D.exe... -
Page 5: Generating An Awf-File Automatically Through Winloc32
Generating an AWF-file automatically through WINLOC32 Deutschmann Automation GmbH & Co. KG 2 Generating an AWF-file automatically through WINLOC32 Starting WINLOC32 (For the further operation of WINLOC32 the menue Help is available) The communication interface between PC and RS232-interface from the ROTARNOCK has to be defined under „Extras ->... - Page 6 Deutschmann Automation GmbH & Co. KG Generating an AWF-file automatically through WINLOC32 Supply the device with voltage. A window with the device‘s switch-on message opens. Read-out the device now (File-> Upload) (configuration + cam data) 3.12.13 Starterkit ROTARNOCK with PROFIBUS V. 1.2...
- Page 7 Generating an AWF-file automatically through WINLOC32 Deutschmann Automation GmbH & Co. KG The graphic window displays an empty data record after the upload. Now the cam values can be entered... (Depending on the device some sectors or functions may be different from the picture below) 3.12.13...
- Page 8 Deutschmann Automation GmbH & Co. KG Generating an AWF-file automatically through WINLOC32 After entering the cams the data should be saved by: File -> Save as. Now the values that have been entered into WINLOC32 have to be transferred to the software „S7DBGenerator.exe“.
- Page 9 Generating an AWF-file automatically through WINLOC32 Deutschmann Automation GmbH & Co. KG The following window opens..searching for the drive path of the „S7DBGenerator.exe“ (please use the Browser symbol [...] for it). The other input fields are not important for further proceeding. Confirm with OK afterwards.
-
Page 10: Operation Of The „Data Component Generator
Deutschmann Automation GmbH & Co. KG Operation of the „data component generator“ 3 Operation of the „data component generator“ Start „S7DBGenerator“ (provided that it has not been started through WINLOC32 yet) and switch the language to English by left click on the English flag.... - Page 11 Operation of the „data component generator“ Deutschmann Automation GmbH & Co. KG Angle-angle cams Angle-time cams Direction cams Idle times Logic In order to generate the data component click on „File“ and „Create DC“. Allocate a file name..and save.
-
Page 12: Operation Of The „Data Component Simulator
Deutschmann Automation GmbH & Co. KG Operation of the „data component simulator“ 4 Operation of the „data component simulator“ Start „DatenbausteinSimulator.exe“ Under „Optionen“ -> „Einstellungen“ you will get to the settings... 3.12.13 Starterkit ROTARNOCK with PROFIBUS V. 1.2... - Page 13 Operation of the „data component simulator“ Deutschmann Automation GmbH & Co. KG ... for the PROFIBUS-Dongle. • Adjust the COM-port for the PROFIBUS UART Dongle. • Enter the PROFIBUS Slave ID. „126“ is default on delivery (current ID is passed out with „(126)“...
- Page 14 Deutschmann Automation GmbH & Co. KG Operation of the „data component simulator“ There is a second window in the background. After setting the right COM-port it should look as followed: Under „Datei“ -> „Oeffnen“ Select the generated AWL-file with a click of the left mouse button on the browser box [...].
- Page 15 Operation of the „data component simulator“ Deutschmann Automation GmbH & Co. KG Select „laden und Übertragung starten“ afterwards. After a short moment you can see the current position and the „address index“ should be running continuously. Output 1 should now be set from „0-100“ (h0 - h64) Besides, the output status should change when the shaft is turned to a position between 0 and 100.
- Page 16 Deutschmann Automation GmbH & Co. KG Operation of the „data component simulator“ This method makes the testing of a data component rather simple. It can now be imported into the S7 as decribed in the instruction manual V3526E „L100, 200, R80, 100 with Fieldbus connec- tion“.
-
Page 17: Appendix
Appendix Deutschmann Automation GmbH & Co. KG 5 Appendix Hardware connection Cam control V3406 PROFIBUS Dongle V2766 Power supply V2757 RS232 cable V2771 Cable cam control - PC V3467 3.12.13 Starterkit ROTARNOCK with PROFIBUS V. 1.2... -
Page 18: Servicing
Deutschmann Automation GmbH & Co. KG Servicing 6 Servicing Should an error message occur, please first take all measures described in chapter Error mes- sages. Should questions occur that are not covered by this manual, please contact the responsible sales partner (see internet: http://www.deutschmann.de) or contact us directly. - Page 21 Servicing Deutschmann Automation GmbH & Co. KG 3.12.13 Starterkit ROTARNOCK with PROFIBUS V. 1.2...
