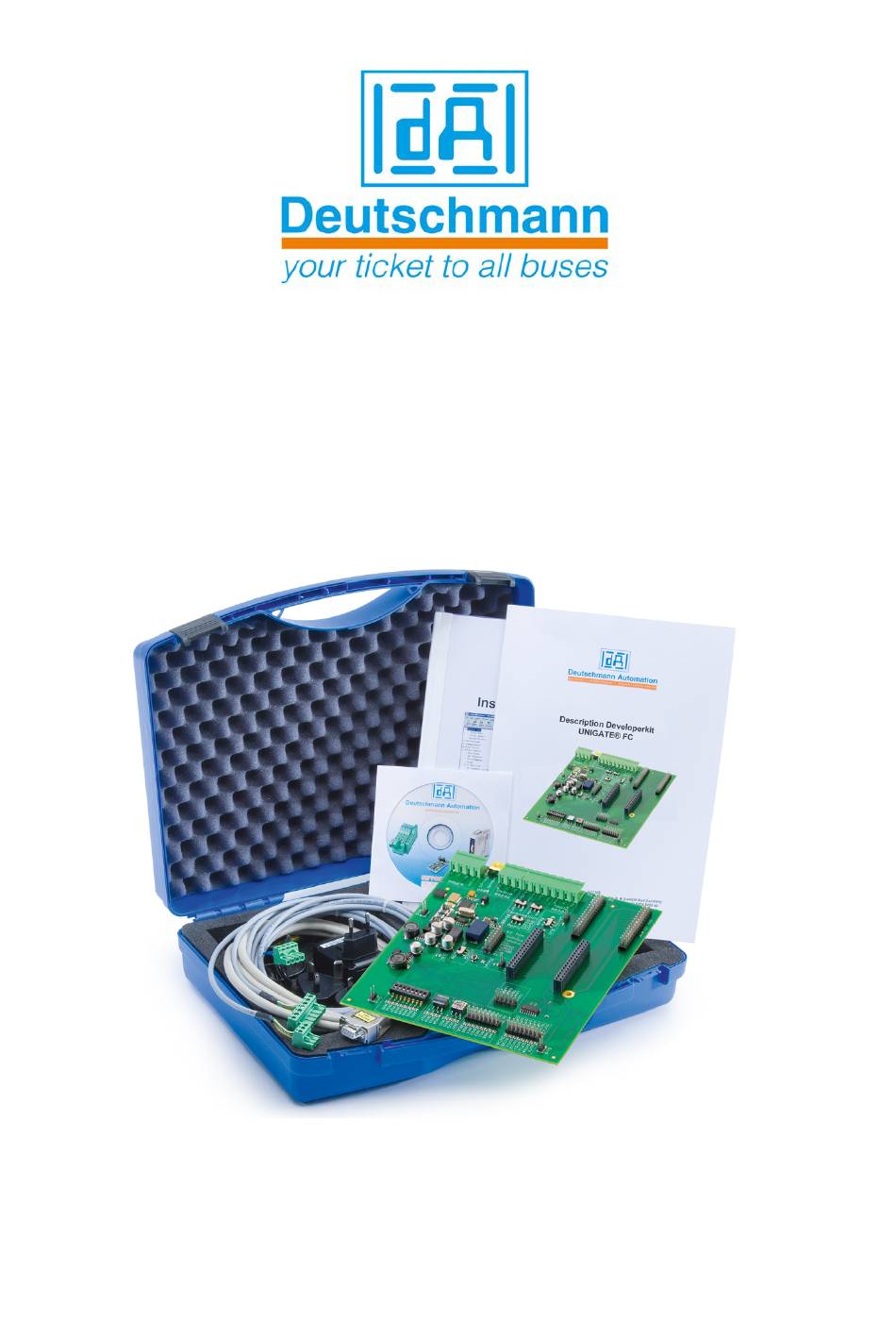

- Page 1 Description Developerkit ® UNIGATE Art. no.: V3853E Deutschmann Automation GmbH & Co. KG | Carl-Zeiss-Str. 8 | D-65520 Bad Camberg Tel. +49 6434 9433-0 | Hotline +49 6434 9433-33 | Fax +49 6434 9433-40 www.deutschmann.com | wiki.deutschmann.de...
- Page 2 Deutschmann Automation GmbH & Co. KG ® Description Developerkit UNIGATE FC V1.0 15.08.2012...
- Page 3 Deutschmann Automation GmbH & Co. KG These instructions will help you to easily and quickly start up your Developerkit ® UNIGATE PLEASE NOTE EVERY TIME BEFORE STARTING: Image 1 Image 2 Image 3 NOTE: When using the application interface RS232, the sliding switch “Appl.” (Image 1) ...
- Page 4 Deutschmann Automation GmbH & Co. KG 1. The Developerkit contains : ® ● 1 x V3852 Developerboard UNIGATE ● 1 x V3719 Developerkit power supply unit 4 pole screw-/plug-connector (POWER) 1 9V-33V Colour Signal 4 pole screw-/ 2 0V plug-connector...
- Page 5 Deutschmann Automation GmbH & Co. KG ® ● 1 x V3719-A Developerkit serial cable (connection cable COM <-> Developerboard UNIGATE Board FC 1.80 m 9 pole D-Sub female 9 pole D-Sub 7 pole screw-/plug-connector (Appl. RS232) 1 Rx 2 Tx...
-
Page 6: Quick Start
Deutschmann Automation GmbH & Co. KG 2. Accessories: You can obtain a Master simulation of the Fieldbus side as an Add-on for the Developerkit (separately for each Fieldbus). In addition to the appropriate Fieldbus adapter, you can also receive the required connecting cable. PC software for the presentation of Fieldbus data, as well as documentation. - Page 7 Deutschmann Automation GmbH & Co. KG ® 5. Overview Developerboard UNIGATE ® Slot UNIGATE Note the direction. RJ45-socket of the UG-FC module in direction of the edge of the board. ® ATTENTION: The UNIGATE FC must never be inserted the wrong way...
- Page 8 Deutschmann Automation GmbH & Co. KG Boot jumper (without jumper): ® The UNIGATE FC can be put in the firmware update mode via this jumper. In order to do this, the jumper must be set during the PowerUp or Reset – the red boot LED lights up.
- Page 9 Deutschmann Automation GmbH & Co. KG Mounting hole: ® 1 hole is provided for (optional) mounting of the UNIGATE FC. It’s connected with Ground (PE). Should you have any further queries, the respective manuals are provided along with the Developerkit, or you can take a look at our homepage www.deutschmann.com...
- Page 10 Deutschmann Automation GmbH & Co. KG ® Description Developerkit UNIGATE FC V1.0 15.08.2012...
