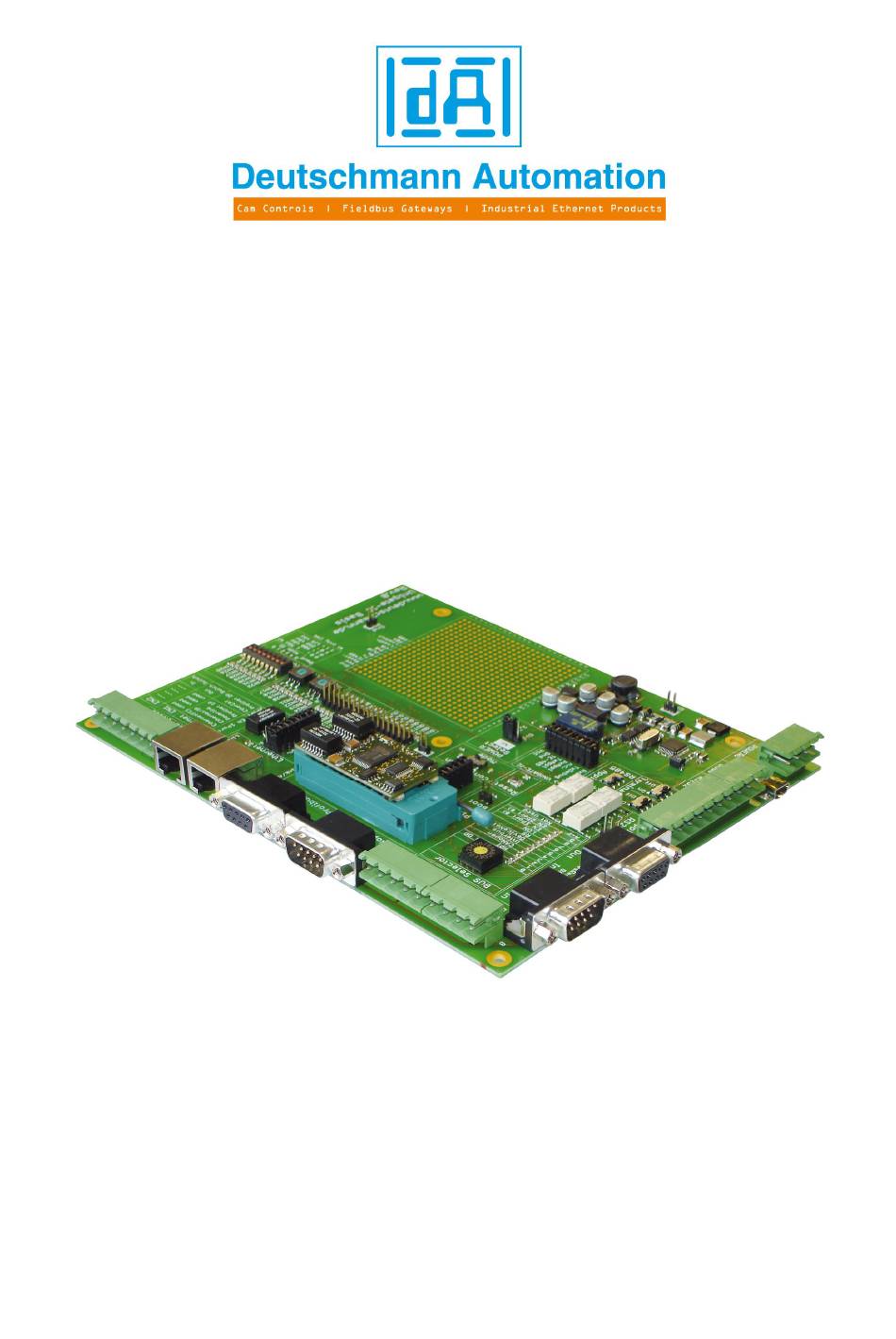

- Page 1 UNIGATE® IC – AB Art. no.: V3720E Deutschmann Automation GmbH & Co. KG l Carl-Zeiss-Str. 8 l D-65520 Bad Camberg Phone +49 (0) 6434 9433 0 l Hotline +49 (0) 6434 9433 33 l Fax +49 (0) 6434 9433 40...
- Page 2 Deutschmann Automation GmbH & Co. KG Description Developerkit UNIGATE® IC-AB V1.01 27.03.2009...
- Page 3 Deutschmann Automation GmbH & Co. KG These instructions will help you to easily and quickly start up your Developerkit UNIGATE® IC-AB. ý PLEASE OBSERVE THE FOLLOWING WITHOUT FAIL BEFORE EACH START-UP: Image 1 Image 2 Image 3 Image 4 Image 5 - POWER Select must be jumpered at 5V (Image 1) or 3.3V (Image 2) in accordance with...
- Page 4 Deutschmann Automation GmbH & Co. KG 1. The Developerkit contains : ● 1 x V3718 Developerboard UNIGATE® IC-AB Note: The coordinate markings of the hole matrix unfortunately “ went missing” in the 1 lot. We would like to apologise for this fault and provide you with the above reference drawing! Description Developerkit UNIGATE®...
- Page 5 Deutschmann Automation GmbH & Co. KG ● 1 x V3719 Developerkit IC-AB power supply unit 4 pole screw-/plug-connector (POWER) Colour Signal 1 9V-33V 4 pole screw-/ 2 0V plug-connector 3 0V White 4 PE Black Blue Blue Power unit 12V ●...
-
Page 6: Quick Start
Deutschmann Automation GmbH & Co. KG Attention: Please always use one of the 3 application interfaces only! ● 1 x V5001 USB cable 1 m The USB cable connects the Developerboard with the PC (1 Appl. RS and 2 Debug RS). - Page 7 Deutschmann Automation GmbH & Co. KG 5. Overview Developerboard UNIGATE® IC-AB: Slot UNIGATE® IC (ZIF - zero insertion force socket): PIN 1 of the IC is on the ZIF socket lever. ATTENTION: The UNIGATE® IC must never be inserted the wrong way round in the socket! Sliding switch POWER ON/OFF.
- Page 8 Deutschmann Automation GmbH & Co. KG Reset key: A UNIGATE® IC reset is activated by pressing the reset key. The red reset LED lights up each time the key is pressed. Boot jumper (without jumper): UNIGATE® IC can be put in the firmware update mode via this jumper.
- Page 9 Deutschmann Automation GmbH & Co. KG Multi-pin connector (with jumper) signals series connection: The signals of the series connection between IC and RS drivers are applied on this jumper strip. I. e. you can disconnect the lines here and also directly tap the signals of the series interface.
- Page 10 Deutschmann Automation GmbH & Co. KG Should you have any further queries, the respective manuals are provided along with the Developerkit or you can take a look at our homepage www.deutschmann.de There you will also find the most up to date versions of software, manuals etc.
- Page 11 Deutschmann Automation GmbH & Co. KG 27.03.2009 Description Developerkit UNIGATE® IC-AB V1.01...
