Savant ITP-E5500V2 Series Quick Reference Manual

Savant® Touch 5.5 Inch Control Screen [ITP-E5500V2x] Quick Reference Guide
Box Contents
(1) Touch 5.5 Inch Control Screen (ITP-E5500V2x-xx)
(1) Installation Kit (075-0190-xx0)
(1) Mounting Bracket (For standard 1-gang electrical box)
(2) Mounting Bracket Screws (6-32 x 1 in.)
(1) Regulatory Statement (009-1950-xx)
Specifications
Environmental
Temperature 32° to 104°F (0° to 40°C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weights
Device
Height 5.84 in (14.84 cm)
Width 3.44 in (8.74 cm)
Depth 1.33 in (3.38 cm)
w/ Mounting Bracket
2.33 in (5.91 cm)
Weight 0.35 lbs (0.16 kg)
Power
Power over 802.3af compliant
Ethernet (PoE)
Power Average: 4.6 W
Consumption Maximum: 5.5 W
Compliance
Safety and FCC Part 15
Emissions
RoHS Compliant
Supported Release
Savant OS da Vinci 9.4.5, 10.0.1, and higher
Network Requirements
For more information, see the Savant Device Networking Guidelines
on the Savant Customer Community.
Touch 5.5 in Control Screen V2 QRG | 009-2064-00
Copyright © Savant Systems, Inc | 220711
Shipping
7.25 in (18.41 cm)
4.50 in (11.43 cm)
2.75 in (6.98 cm)
0.75 lbs (0.34 kg)
CE UKCA WEEE

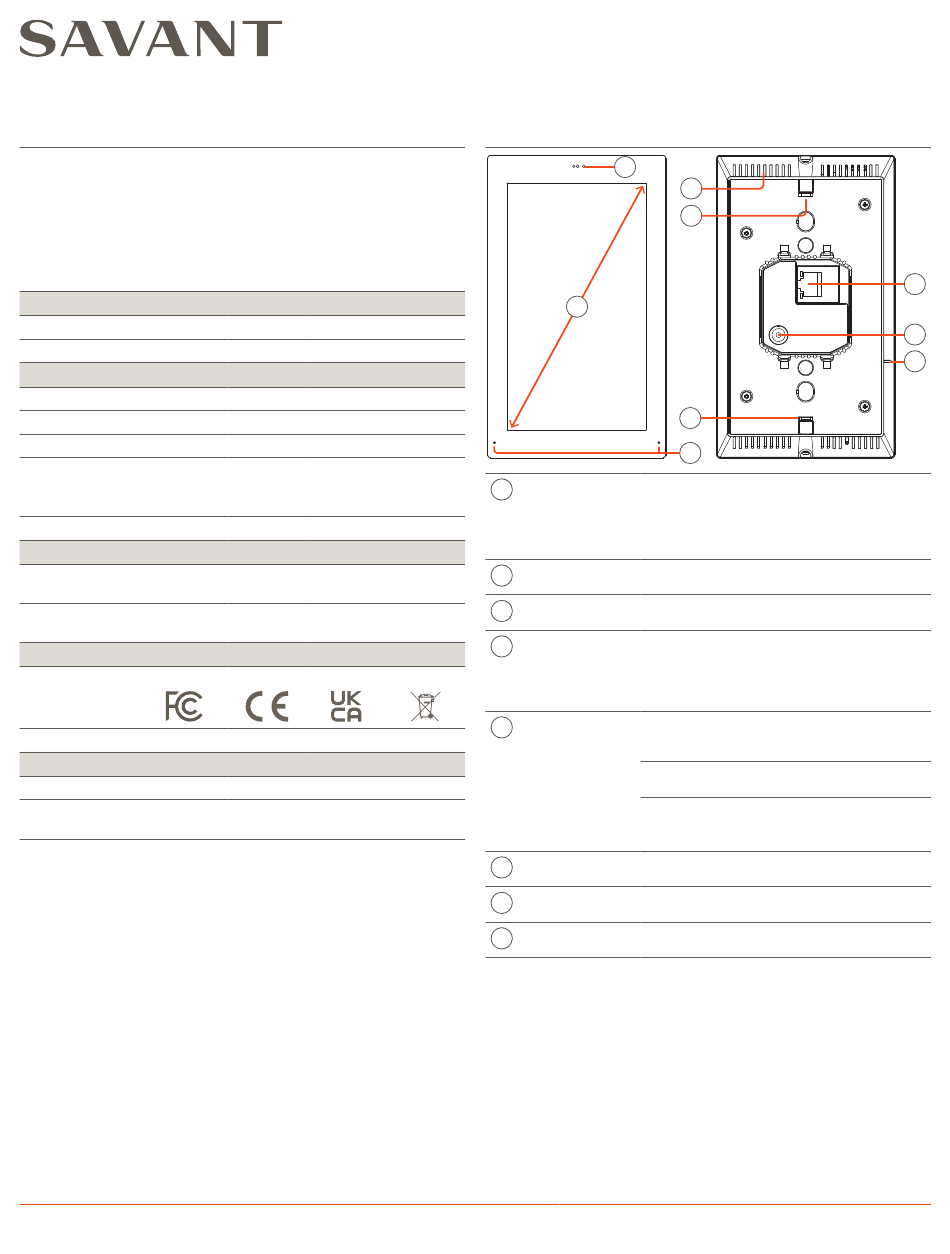

Device
A
B
Proximity Sensor
A
Display
B
Embedded
C
Speaker
Mounting Slots
D
Ethernet
E
Alternate Power
F
Input
Reset Button
G
Embedded
H
Microphone
1 of 2
C
D
D
H
Sensor (proximity) mounted in front panel
will wake up the display when movement is
detected in front of display.
Sensor operating at 940 nm, affective range
about 3.28 ft (1 m).
Screen Size: 5.5 in (13.77 cm)
Resolution: 1920 x 1080 | 16.7 M colors
For audio output.
Slots for mounting touch panel to mounting
bracket. Insert tabs from the mounting
bracket into these slots. Once inserted,
secure the touch panel to the bracket using
the two captive screws.
8-pin RJ-45 port:
10/100/1000 Base-T auto-negotiation port
with link and activity LEDs.
Link LED Orange - Link is established. Off
– No link established
Link Green Blinking - Indicates data
Activity activity.
LED Off – No Activity
Not Used.
Using a paperclip or similar, press and
release Reset button to reset the display.
For voice input.
45 Perseverance Way, Hyannis, MA 02601
Savant.com
E
F
G
| 508.683.2500
