Savant ITP-E5500-30 Series Quick Reference Manual

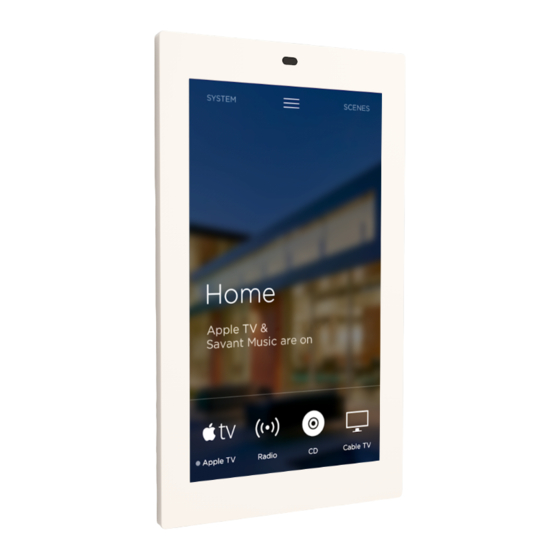

Savant Touch 5.5 Inch Control Screen (ITP-E5500x-30)
Quick Reference Guide
Box Contents
(1) Touch 5.5 Inch Control Screen (ITP-E5500x-30)
(1) Installation Kit
(1) Mounting Bracket (For standard 1-gang electrical box)
(2) Mounting Bracket Screws (6-32 x 1 in.)
(1) Regulatory Statement (009-1950-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weights
Height 5.85 in (14.86 cm)
Width 3.44 in (8.74 cm)
Device: 1.33 in (3.38 cm)
Depth
Mounting: 0.56 in (1.42 cm)
Net: 0.35 lb (0.16 kg)
Weight
Shipping: 0.75 lb (0.34 kg)
Power
Power over
802.3af compliant
Ethernet (PoE)
Power Average: 4.6W
Consumption Maximum: 5.5W
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 9.2.2
Network Requirements
Savant requires the use of business class/commercial grade network
equipment throughout the network to ensure the reliability of
communication between devices. These higher quality components
also allow for more accurate troubleshooting when needed. Connect
all Savant devices to the same local area network (LAN) or subnet as
the Host. Savant recommends not implementing any type of traffic
management, packet shaping, or similar within the network topology
for Savant devices, as this may interfere with performance.
Network Configuration
To ensure that IP addresses do not change due to power outage
or other network interruptions, Savant recommends using DHCP
reservation at the router. Using this method, all IP addressing can
be managed from a single UI, avoiding the need to access devices
individually.
– Using a paper clip or similar, press and release the Reset button on
the side of the touch panel (See Rear Panel descriptions section).
Allow the display to reset and obtain a new IP Address.
Savant ITP-E5500x-30 QRG | 009-1935-01
200609 | © 2020 Savant Systems, LLC
CE WEEE
1 of

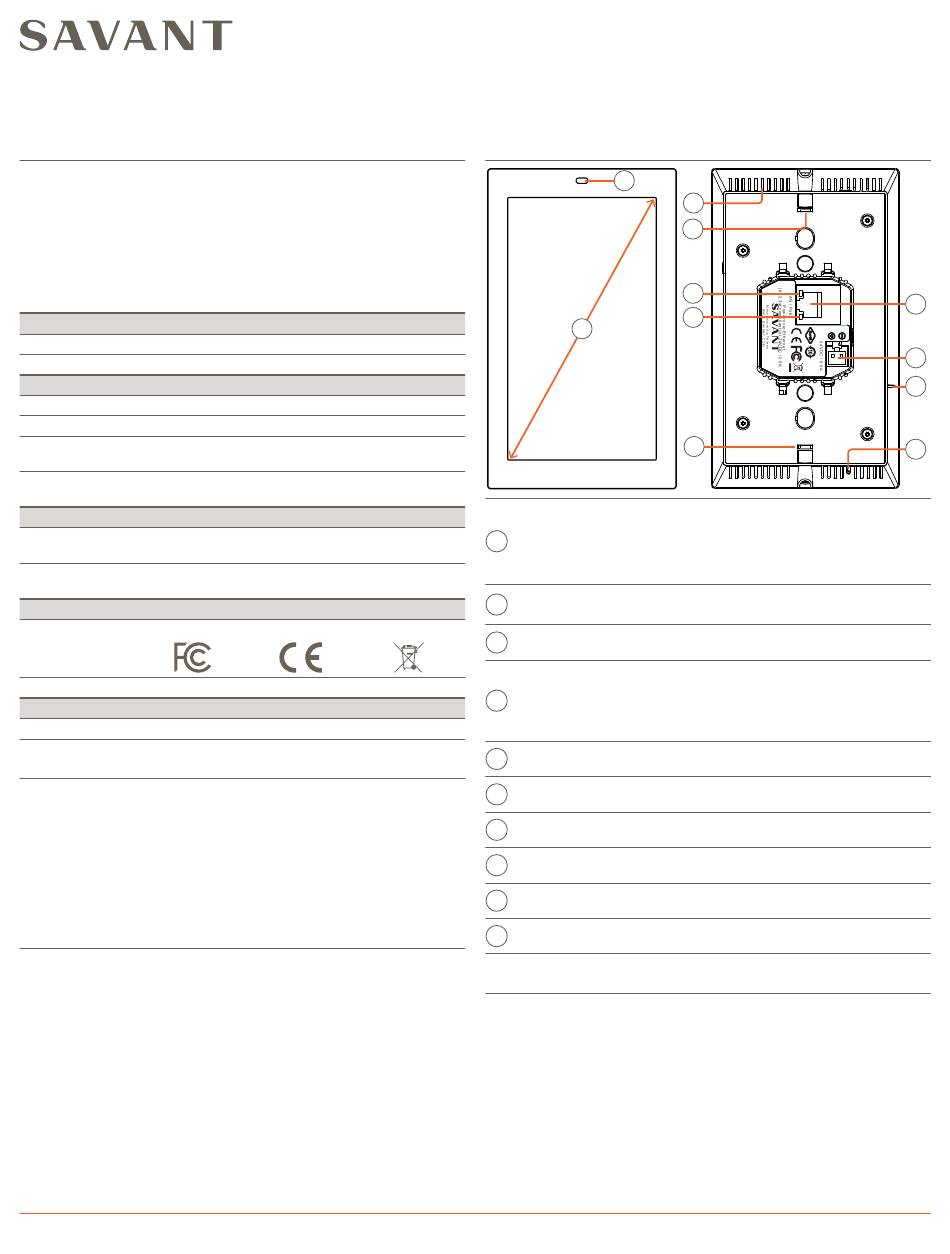

Front Panel
A
B
Sensor (proximity) mounted in front panel
will wake up the display when movement is
A detected in front of display.
Proximity Sensor
Sensor operating at 940 nm, affective range
about 3.28 ft (1 m).
Screen Size: 5.5 in (13.77 cm).
B
Display
Resolution: 1920 x 1080 | 16.7M colors
Embedded
C
For audio output.
Speaker
Slots for mounting touch panel to mounting
bracket. Insert tabs from the mounting
D
Mounting Slots bracket into these slots. Once inserted, secure
the touch panel to the bracket using the two
captive screws.
Orange - Link is established.
E
Link LED
Off – No link established
Green Blinking - Indicates data activity.
F
Link Activity LED
Off – No Activity
8-pin RJ-45 port: 10/100/1000 Base-T auto-
G
Ethernet
negotiation port with link and activity LEDs.
Alternate
H
Not Used.
Power Input
Using a paperclip or similar, press and release
I
Reset Button
Reset button to reset the display.
Embedded
J
For voice input.
Microphone
Network Changes
If the IP Address range in your network has changed, Savant
recommends the following steps to refresh any IP connection and
ensure that the display is communicating with the network correctly.
– Reboot the device for the Settings Menu. Navigate from the Home
Screen to Settings > Touch Panel Settings > Reboot.
2
Rear Panel
C
D
E
F
C
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
G
H
I
J
