Savant ITP-E8000x-30 Quick Manual

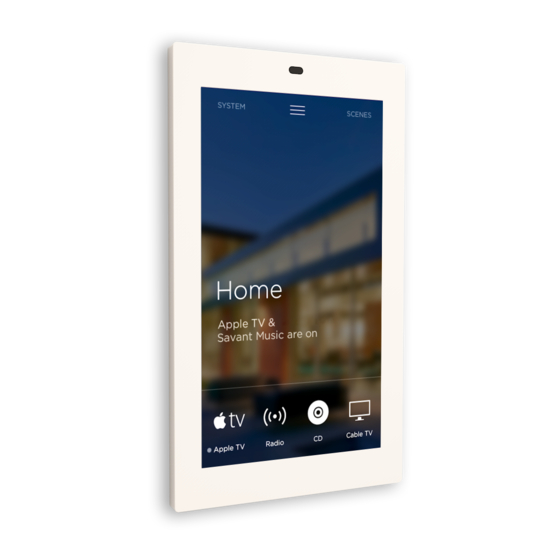

Savant Touch 8 Inch Control Screen (ITP-E8000x-30)
Quick Reference Guide

Box Contents

(1) Touch 8 Inch Control Screen (ITP-E8000x-30)
(1) Installation Kit
(1) Installation Template (009-1561-xx)
(1) Mounting Bracket (For standard 2-gang electrical box)
(4) Mounting Bracket Screws (6-32 x 1 in.)
(1) Regulatory Statement (009-1950-xx)

Specifications

Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Dimensions and Weights
Height 5.84 in (14.84 cm)
Width 8.80 in (22.35 cm)
Device: 1.43 in (3.63 cm)
Depth
Mounting: 0.62 in (1.58 cm)
Net: 0.95 lb (0.44 kg)
Weight
Shipping: 1.85 lb (0.83 kg)
Power
Power over
802.3at compliant (PoE+)
Ethernet (PoE)
Power Average: 5.14W
Consumption Maximum: 6.76W
Compliance
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 9.2.2

Network Requirements

Savant requires the use of business class/commercial grade network
equipment throughout the network to ensure the reliability of
communication between devices. These higher quality components
also allow for more accurate troubleshooting when needed.
Connect all Savant devices to the same local area network (LAN) or
subnet as the Host. Savant recommends not implementing any type
of traffic management, packet shaping, or similar within the network
topology for Savant devices, as this may interfere with performance.

Network Configuration

To ensure that IP addresses do not change due to power outage
or other network interruptions, Savant recommends using DHCP
reservation at the router. Using this method, all IP addressing can
be managed from a single UI, avoiding the need to access devices
individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.

Network Changes

If the IP addressing range has changed for the local network, Savant
recommends rebooting the device via the Settings menu to refresh the
network connection and ensure optimal communication:
Navigate from the Home Screen Settings > Touch Panel Settings >
Reboot
Savant ITP-E8000x-30 QRG | 009-1936-01
200609 | © 2020 Savant Systems, LLC
CE WEEE
1 of

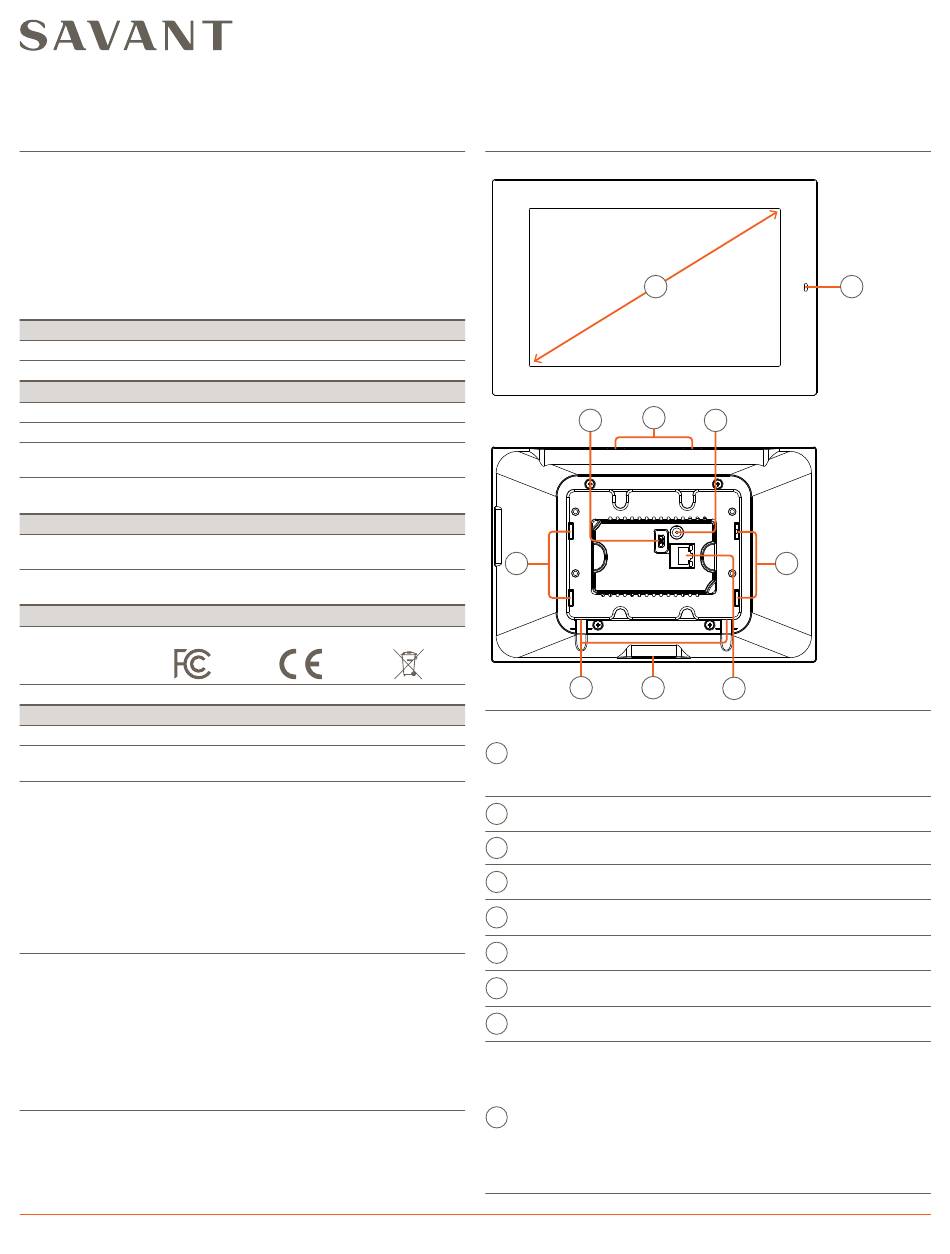

Device
Front Panel
B
D
C
Rear Panel
F
G H
Sensor (proximity) mounted in front panel
will wake up the display when movement is
A detected in front of display.
Proximity Sensor
Sensor operating at 940 nm, affective range
about 3.28 ft (1 m).
Screen Size: 8.0 in (20.30 cm).
B
Display
Resolution: 1280 x 800 | 16.7M colors
C
Micro USB Not Used.
Embedded
D
For audio output.
Speaker
Alternate
E
Not Used
Power Input
Align the mounting frame hooks and press
F
Mounting Slots
down to seat.
Used to secure touch panel to bracket after
G
Captive Screws
mounting frame hooks have been seated.
Embedded
H
For voice input.
Microphone
8-pin RJ-45 port:
10/100/1000 Base-T auto-negotiation port
with link and activity LEDs.
Link LED:
I
Ethernet Orange - Link is established.
Off – No link established
Link Activity LED:
Green Blinking - Indicates data activity.
Off – No Activity
2
A
E
F
I
45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500
