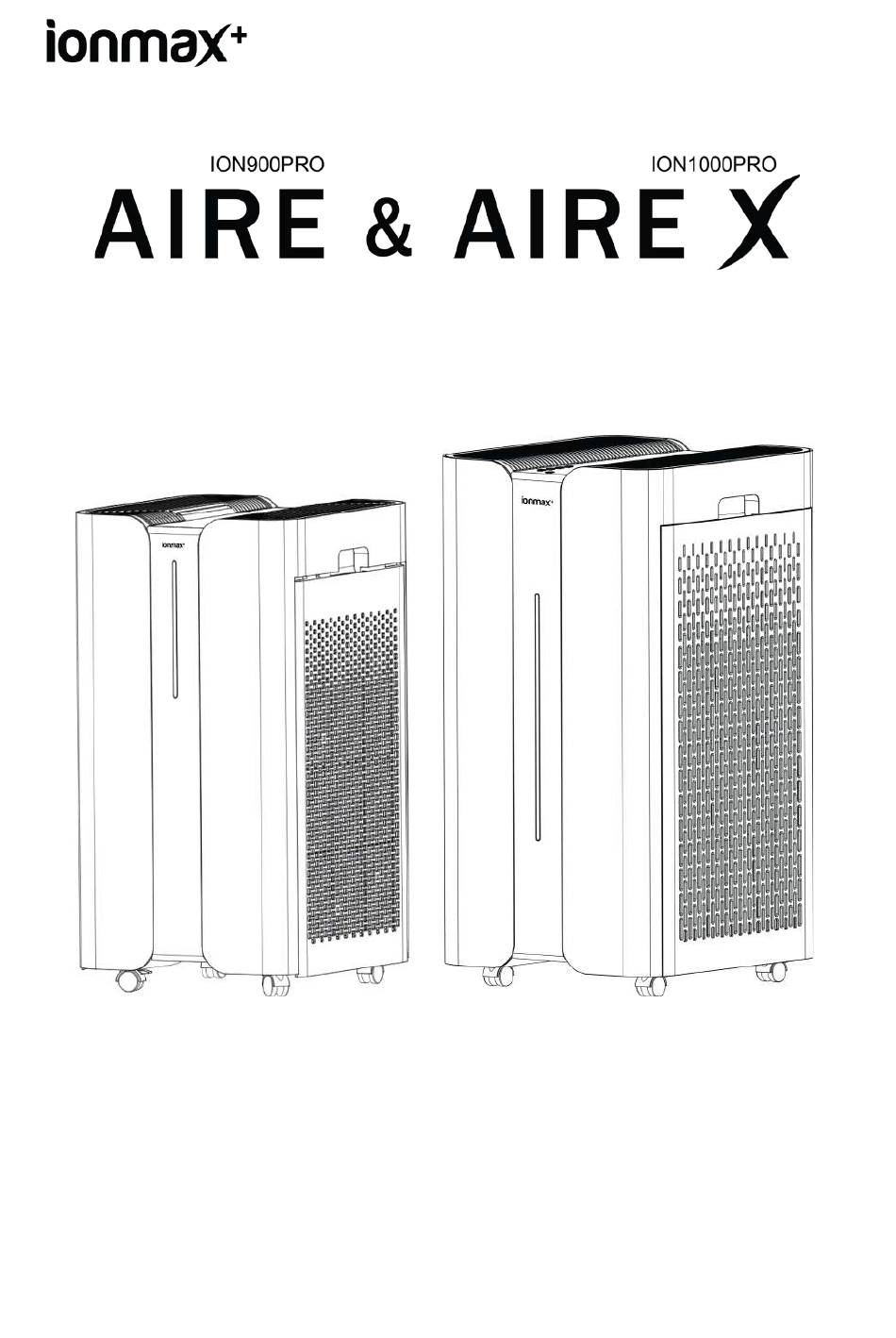

- Page 1 High-Performance HEPA UV Air Purifier User Manual Version 1.0. Updated July 2022.
- Page 2 Thank you for purchasing the Ionmax+ Aire air purifier. The Ionmax+ Aire air purifier can help to improve the indoor air quality in your home or office. Paired with the Ionmax WiFi app, you can easily control and monitor your air purifier and indoor air quality from your mobile phone.
-
Page 3: Table Of Contents
Table of Contents Safety Instructions Product Diagram Specifications Purification System Unit Setup Operating Instructions Power Button IONX-Shield Button Child Lock Button UVX-Shield Button Sleep Button Timer Button Filter Reset Fan Speed Button WiFi Button Mobile App Setup Cleaning and Maintenance Storage Instructions Filter Replacement Troubleshooting Guide... -
Page 4: Safety Instructions
Safety Instructions PLEASE READ ALL THE TIPS AND WARNINGS BELOW BEFORE USING THE AIR PURIFIER. ● Use the unit only as directed in the User Manual. ● Do not allow children or persons with reduced physical, sensory, or mental capabilities to operate the unit without adult supervision. ●... -
Page 5: Product Diagram
Product Diagram Ionmax+ Aire Ionmax+ Aire X Ⓐ Air Outlet Ⓔ Air Inlet Ⓑ Control Panel Ⓕ Air Quality Sensor Ⓒ Air Quality Indicator Ⓖ Power Cord Ⓓ Body Ⓗ Universal Wheels... -
Page 6: Specifications
Specifications Ionmax+ Aire Ionmax+ Aire X ION900PRO ION1000PRO 2 (1) 2 (2) 2 (1) 2 (2) Room Size 77 m - 234 m 85 m - 260 m 1) ANSI/AHAM AC-1 2015 1) ANSI/AHAM AC-1 2015 2) NRCC-54013-2011 2) NRCC-54013-2011... -
Page 7: Purification System
Purification System ① Pre-Filter Traps large airborne particles, such as hair, dust, and pet dander. ② Antibacterial HEPA H13 Filter Captures 99.97% of microscopic allergens and germs as small as 0.3 microns from the air with a proven ability to kill bacteria and prevent mould growth. ③... -
Page 8: Unit Setup
Unit Setup 1. Remove the unit from the box and plastic bag. 2. Place the unit on a firm, flat, and level surface. 3. Open the side panels and remove the plastic bags from the filters (refer to Filter Replacement Instructions for a detailed guide). -
Page 9: Operating Instructions
Operating Instructions Power Button Connect the unit to a suitable power supply, then touch the Power Button. The unit will switch on with a notification sound and begin operation in Auto mode. The Air Quality Indicator will flash for about 30 seconds while the Air Quality Sensor starts up. The unit will then indicate the detected indoor air quality level through the PM2.5 level on the digital display and the Air Quality Indicator’s colour. -
Page 10: Ionx-Shield Button
IONX-Shield Button Touch the IONX-Shield Button to enable the Ioniser function. The IONX-Shield Indicator will light up, and the built-in negative ion generator will start to release negative ions to freshen the air. Touch the IONX-Shield Button again to disable the Ioniser function. The IONX-Shield Indicator light will switch off. -
Page 11: Filter Reset
Filter Reset When the Filter Replacement Indicator (below) starts blinking, the unit’s filters require replacement. Replace the filters following the Filter Replacement Instructions. After replacing the filters, hold the Filter Reset Button for 3 seconds until the Filter Replacement Indicator bar stops blinking, which indicates that the Filter Reset is successful. Fan Speed Button The unit operates at four fan speeds: HIGH... -
Page 12: Mobile App Setup
Scan the QR code or visit bit.ly/ionmax-app EZ Mode Connection This is the default connection mode in the Ionmax app and the easiest way to connect. ① Log in to an existing account for the Ionmax app, or register a new account. - Page 13 ⑤ From your phone’s list of detected Wi-Fi networks, select the network named “SmartLife-XXXX”. If the “Internet may not be available” notification appears, select “Connect only this time” to continue. ⑥ Return to the Ionmax app. The app will search for the air purifier and connect automatically.
-
Page 14: Cleaning And Maintenance
Cleaning and Maintenance Proper use and regular maintenance can ensure efficient operation and extend the unit's life. Always switch off the unit and unplug the power supply before cleaning the unit. Clean the unit at least once a month. Wipe down the outer case of the unit using a soft, Remove the sensor cover. -
Page 15: Storage Instructions
Storage Instructions If the unit will not be in use for a long time, please pack and store the unit properly. ● Unplug the unit's power supply. ● Clean the pre-filter. ● Use a soft cloth to clean the air intake and air outlet. ●... - Page 16 Filter Replacement Instructions The Ionmax+ Aire comes with the filters fitted inside. Please remove the plastic packaging from the filters before using the air purifier. When replacing with new filters, remove all plastic packaging and place the filters into the unit, as described here.
-
Page 17: Troubleshooting Guide
Troubleshooting Guide Before carrying out any of the following service checks, unplug the unit from the power supply. DO NOT attempt to repair or adjust this unit's electrical or mechanical functions. All servicing should be performed by qualified personnel only. Problem Probable Cause Solution... -
Page 18: Warranty Details
WARRANTY DETAILS Congratulations on your purchase! It is our aim to provide you with quality products that you can trust. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. -
Page 19: Warranty Registration
WARRANTY REGISTRATION Register your Ionmax+ Aire online at my.andatech.com.au or fill out this form and forward to the address below with a copy of your proof of purchase. Contact us on 1300 800 200 or visit ionmax.com.au for options to extend your warranty. - Page 20 1300 800 200...
