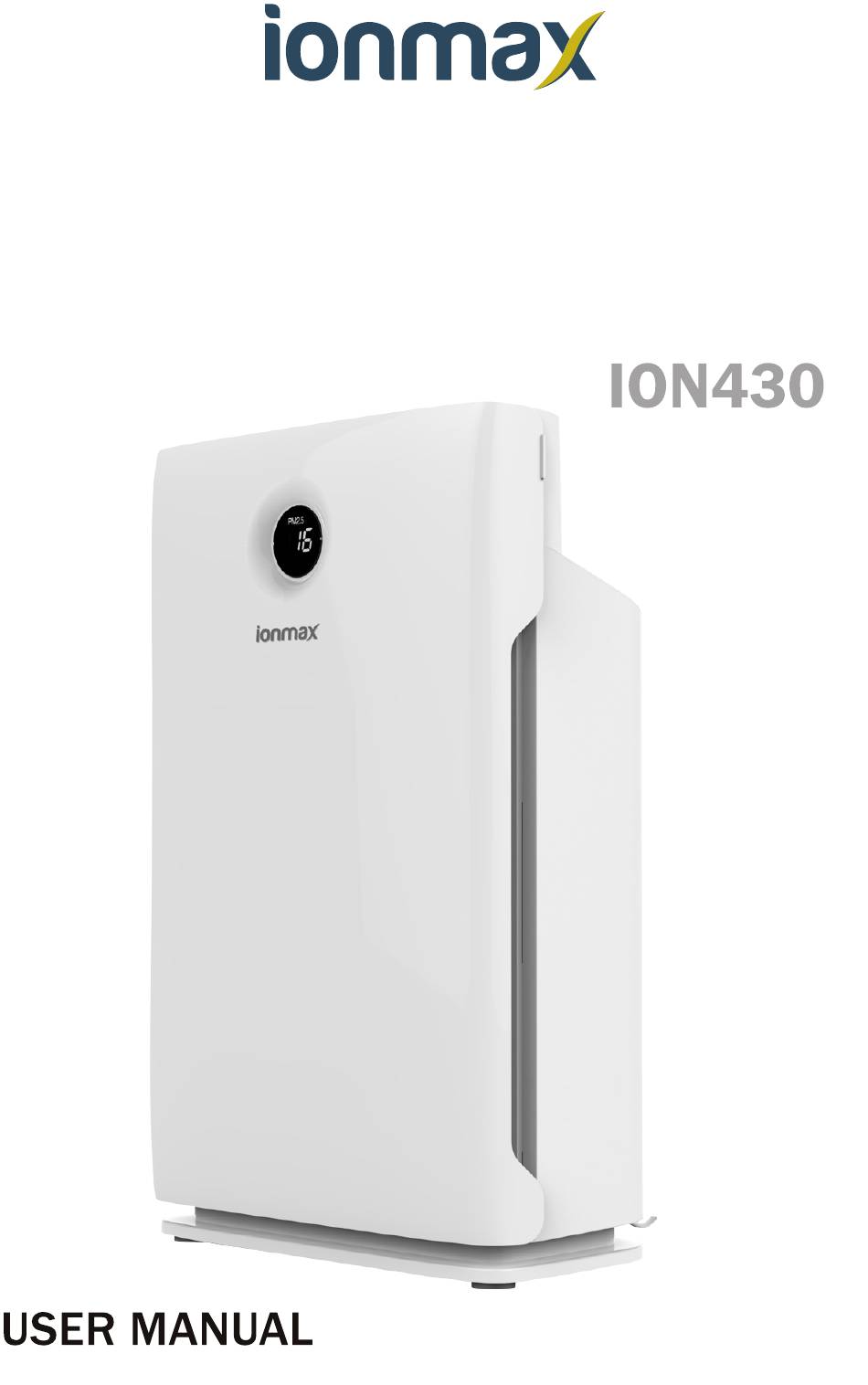

- Page 1 UV HEPA AIR PURIFIER Version 1.0. Updated April 2020.
-
Page 2: Table Of Contents
DEAR CUSTOMER Thank you for purchasing the Ionmax ION430 UV HEPA Air Purifier. The Ionmax ION430 can help to improve the indoor quality in your home or office. Please read this manual carefully before use to ensure proper usage and save these instructions for future reference. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS PLEASE READ ALL THE TIPS AND WARNINGS BELOW BEFORE USING THE AIR PURIFIER. ● Use only as directed in the User Manual. ● Do not allow children or persons with reduced physical, sensory, or mental capabilities to operate the unit without adult supervision. ●... -
Page 4: Product Diagram
PRODUCT DIAGRAM UV bulb SPECIFICATIONS Model Ionmax ION430 Voltage 220-240V, 50Hz Power Rating Coverage Area Up to 40sqm Noise Level 66dBA (max) CADR 340m³/h Filter Life 2,000 hours Weight 7.0 KG Dimensions 380 (W) x 210 (D) x 590 (H) mm... -
Page 5: Purification System
PURIFICATION SYSTEM Clean Polluted Cleanable Pre-Filter Traps large particles such as human hair, pet dander and dust particles. Helps to extend the life of the HEPA and Activated Carbon filters. True HEPA Filter Traps up to 99.97% of allergens and airborne contaminants down to 0.3 microns in size. -
Page 6: Air Quality Indicator
AIR QUALITY INDICATOR Fine Particulate Matter Relative Air Humidity in % Temperature in °C The digital display on the front of the air purifier indicates the current air quality by measuring the level of fine particulate matter (PM ), indoor relative humidity, and indoor temperature. -
Page 7: Control Panel
Child lock CONTROL PANEL Timer Power Filter reset Fan speed button button On/Off button button button TIMER BUTTON The air purifier can be timed to operate for intervals of 1, 2, 4, or 8 hours, stopping automatically when the selected operating time has elapsed. Press this button repeatedly until the desired timer setting is selected (the LED will light up). -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS Note: Remove plastic bags from filters before first use. Plug the appliance into a suitable electrical outlet. Press the power button to turn the appliance on. Change the timer, fan speed or UV settings if desired (refer to Control Panel description). -
Page 9: Filter Replacement
Reset button to reset the built-in filter replacement timer. FILTER REPLACEMENT INSTRUCTIONS The ION430 comes with the filters fitted inside, but you will need to remove the plastic packaging from the filters before using the air purifier for the first time. - Page 10 Step 3. Place the Carbon filter into the air purifier with the tag pointing out towards you. Step 4. Place the pre+HEPA filter into the air purifier with the tag pointing out towards you. Step 5. Reattach the front panel by mounting the panel onto the bottom of the air purifier first (A).
- Page 11 PRE-FILTER MAINTENANCE ● Clean the pre-filter regularly to maintain air purifier performance. ● The pre-filter can be gently vacuumed using hand tool attachments (no rotating brushes). ● Do not use any solutions, brushes or sharp objects to clean the pre-filter, as this can damage the filter.
-
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Probable Cause Solution Power cable not plugged in Plug in power cable Power cable not plugged in Plug in power cable Unit not properly correctly operating Front cover not attached Reattach the front cover properly Filters not unpacked Unpack the filter packaging (see Filter Replacement Instructions) -
Page 13: Warranty Details
WARRANTY DETAILS It is our aim to provide you with quality products that you Congratulations on your purchase! can trust. Our products come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or a refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. -
Page 15: Warranty Registration
WARRANTY REGISTRATION Register your Ionmax ION430 online at my.andatech.com.au or fill out this form and forward to the address below with a copy of your proof of purchase. Contact us on 1300 800 200 or visit andatechdistribution.com.au for options to extend your warranty. - Page 16 andatechdistribution.com.au 1300 800 200...
