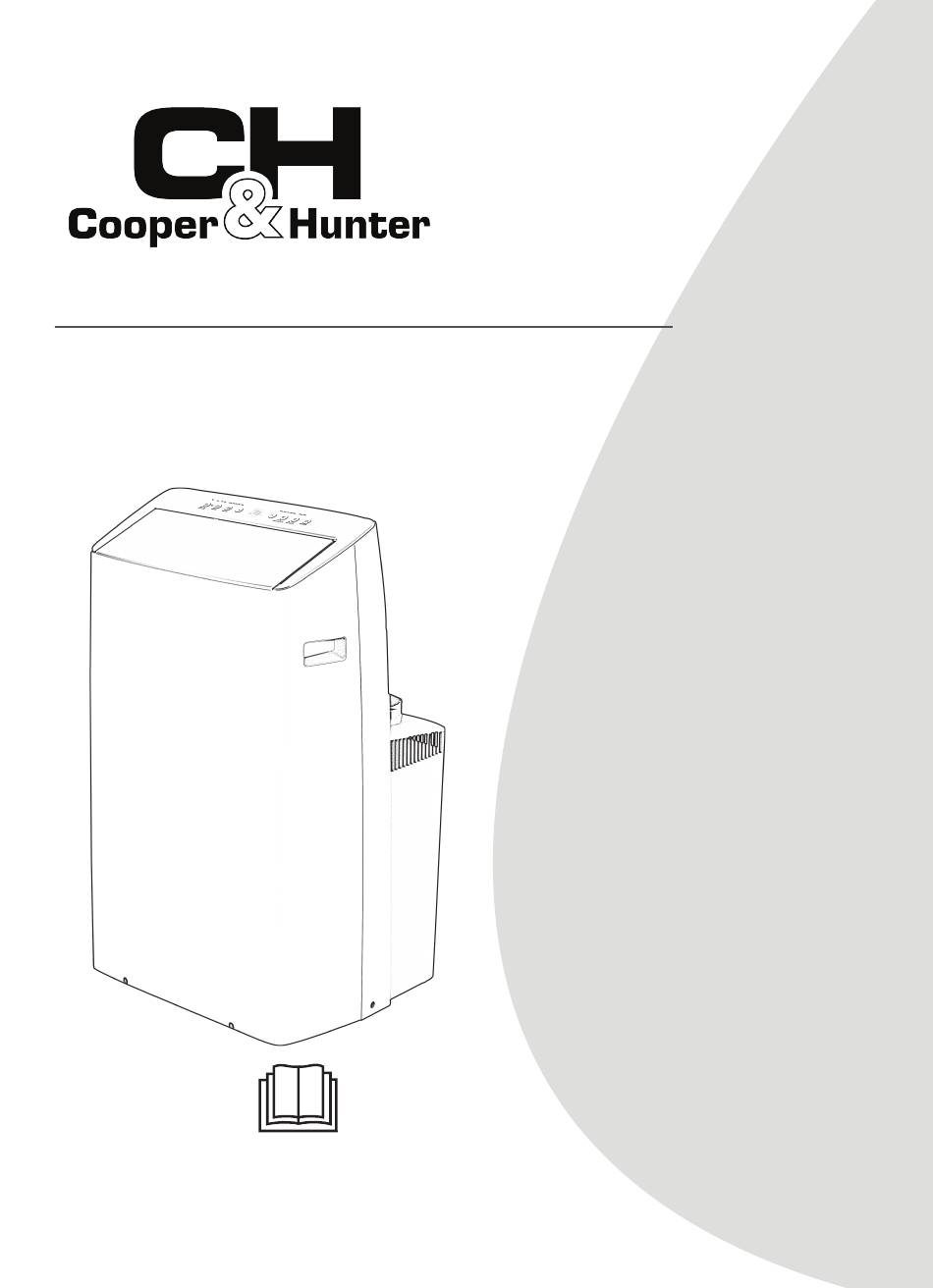

MOBILE AIR CONDITIONER(Local Air Conditioner)
Owner's Manual &
Installation Manual
IMPORTANT NOTE:
Read this manual carefully before installing
or operating your new air conditioning
unit. Make sure to save this manual for
future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CH-STLS-14AC and is the answer not in the manual?

Questions and answers

Related Manuals for Cooper & Hunter CH-STLS-14AC

Summary of Contents for Cooper & Hunter CH-STLS-14AC

  • Page 1 MOBILE AIR CONDITIONER(Local Air Conditioner) Owner’s Manual & Installation Manual IMPORTANT NOTE: Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference.

  • Page 2: Table Of Contents

    Table of Contents Safety Precautions Safety Precautions ........................Installation Instructions Preparation..........................Design Notice..........................Ambient Temperature Range For Unit Operating................ Choosing The Right Location...................... Recommend Installation......................Energy Rating Information ......................Tools Needed..........................Accessories..........................Window Installation Kit......................Installation..........................HEAT PUMP HOSE INSULATION FOAM(only for heat pump mode)..........

  • Page 3: Safety Precautions

    Safety Precautions Read Safety Precautions Before Operation and Installation To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage. CAUTION WARNING This symbol indicates the possibility of...
  • Page 4 In a thunderstorm, the power must be cut off to avoid damage to the machine due to lightning. • Your air conditioner should be used in such a way that it is protected from moisture. • e.g. condensation, splashed water, etc. Do not place or store your air conditioner where it can fall or be pulled into water or any other liquid.
  • Page 5 • Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol,etc. • Always transport your air conditioner in a vertical position and stand on a stable, level surface during use.
  • Page 6 WARNING for Using R32/R290 Refrigerant Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without continuously operating ignition sources (for exam- ple: open flames, an operating gas appliance or an operating electric heater). Do not pierce or burn.
  • Page 7 AVERTISSEMENT Ne pas utiliser de produits permettant d’accélérer le dégel ou de produits de nettoyage autres que ceux recommandés par le fabricant. L’appareil doit être entreposé dans un endroit sans source d’allumage fonctionnant en continu (par exemple : amme nue, appareil au gaz en marche ou radiateur électrique en marche). Ne pas percer ni bruler.
  • Page 8 Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed. 3)General work area All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out.
  • Page 9 but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include: That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; That there no live electrical components and wiring are exposed while charging, recovering or purging the system;...
  • Page 10 12.Removal and evacuation When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to: Remove refrigerant;...
  • Page 11 16.Recovery When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, en- sure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available.

  • Page 12: Installation Instructions

    Installation Instructions Preparation NOTE: All the illustrations in the manual are for explanation purpose only. Your machine may be slightly different. The actual shape shall prevail. The unit can be controlled by the unit control panel alone or with the remote controller.

  • Page 13: Recommend Installation

    Recommend Installation NOTICE 应品质要求 ，增加上出 The appearance of your unit might be slightly different. 风口与障碍 物距离 50cm(工程 WARNING 师提供的数 据)。 This air-conditioning unit is a hermetically sealed unit that contains fluorinated • gasses. For specific information on the type of gas and the amount, please refer to the relevant label on the unit itself.

  • Page 14: Tools Needed

    Tools Needed -Philips screwdriver; -Knife or scissors; -Tape measure or ruler; -Saw (optional, to shorten window adaptor for narrow windows) Accessories NOTE: Your window Installation Kit fits windows 19.1’’-63.8’’(48.4-162cm). Please doublecheck all packaging materials to make sure accessories do not get accidentally thrown away. Items with (*) are on some models. Slight variations in design may occur.
  • Page 15 TYPE ONE TYPE TWO Three Window Sliders Two Window Sliders Three Window Sliders Two Window Sliders with side holes without side hole with side holes without side hole DOE机型中单页的DOE说明，现整合到整机说明书中。 Use the table below to determine what combination of Window Sliders is correct for your window Table 2(For some units) window dimension...

  • Page 16: Installation

    Installation Type 1: Hung window installation Foam seal B 1. Cut the adhesive foam seal A and B strips to (Adhesive type-shorter) the proper lengths, and attach them to the window sash and frame as shown Fig.1. Foam seal A (Adhesive type) Fig.1 2.
  • Page 17 5. Attach the hose to the window slider panel by inserting the end of the hose into the opening on the slider.(see Fig.6) Fig.6 Type 2: Sliding window Installation (Optional) Foam seal B 1. Cut the adhesive foam seal A and B strips to (Adhesive type-shorter) the proper lengths, and attach them to the window sash and frame as shown.(see Fig.7)
  • Page 18 3. Insert the window slider assembly into the window track. If the hose opening is covered by the window frame, rotate the panel so the Window slider B (if required) thicker side faces the window frame. (see Fig.9) Window slider A For some units, attach the Window Kit Brace to the back of the hose panel to brace against the window so the window slider panels do...

  • Page 19: Heat Pump Hose Insulation Foam(Only For Heat Pump Mode)

    HEAT PUMP HOSE INSULATION FOAM(only for heat pump mode) NOTE: When the unit is at heat mode, the heat pump hose insulation foam must be fixed in the hose of unit. If you are experiencing condensation on the outer section of the hose during heating operation, apply the included heat pump insulation foam to the outside of the hose.

  • Page 20: Operating Instructions

    Operating Instructions Control Panel Features NOTE: The following control panels are for explanation purpose only. The control panel of the unit you purchased may be slightly different according to the models. Your machine may not contain some indicators or buttons. The actual shape shall prevail. LED Display Wireless Indicator(Optional) Swing (Connect)
  • Page 21 Mode Button ION feature(on some models) · Selects the desired operating mode. Each time you · Press SWING button and TIME button at press the button, a mode is selected in a sequence the same time for 3 seconds to initiate ION that goes from AUTO, COOL, DRY, FAN and HEAT feature and the ION light illumiantes, the LED (Heat models only).

  • Page 22: Operation Instructions

    Operation Instructions COOL operation HEAT operation(cooling only models without) · Press the "MODE" button until the "COOL" · Press the "MODE" button until the "HEAT" indicator light comes on. indicator light comes on. · Press the ADJUST buttons "UP" or "DOWN" to ·...

  • Page 23: Water Drainage

    AUTO-RESTART AIR FLOW DIRECTION ADJUSTMENT If the unit breaks off unexpectedly due to the power The louver can be adjusted automatically. Adjust the cut, it will restart with the previous function setting air flow direction automatically: automatically when the power resumes. ·...
  • Page 24 · When the water level of the bottom tray reaches a prede- termined level, the unit beeps 8 times, the digital display area shows "P1" . At this time the air conditioning/dehum- idification process will immediately stop. However, the fan motor will continue to operate(this is normal).

  • Page 25: Maintenance

    Maintenance Safety Precautions · Always unplug the unit before cleaning or servicing. · DO NOT use flammable liquids or chemicals to clean the unit. · DO NOT wash the unit under running water. Doing so causes electrical danger. · DO NOT operate the machine if the power supply was damaged during cleaning. A damaged power cord must be replaced with a new cord from the manufacturer.

  • Page 26: Troubleshooting Tips

    Troubleshooting Tips Problem Possible Causes Solution The Water Collection Tray is full. Turn off the P1 Protection Code unit, drain the water from the Water Collection Tray and restart the unit. Unit does not turn on when pressing In COOL mode: room ON/OFF button temperature is lower than Reset the temperature...
  • Page 28 www.cooperandhunter.us Replacement 2 year Warranty www.cooperandhunter.com The warranty should be registered on our website PRODUCT REGISTRATION: Model No.: ______________________________________________________________________________________________ Serial No.: _______________________________________________________ Date of Installation: ______________________ Owner Name: ____________________________________________________________________________________________ Address of Installation:_____________________________________________________________________________________ Place Of Purchase: _______________________________________________________________________________________ Date of Purchase: _______________________________________________________________________________ Visit our website for: Visit our YouTube Channel for: •...
  • Page 29 LIMITATIONS OF WARRANTIES: ALL IMPLIED WARRANTIES AND/OR CONDITIONS (INCLUDING IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE OR PURPOSE) ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. SOME STATES OR PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY OR CONDITION LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.
  • Page 30 The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version. CP001UI-PTTY 16120600001190 20211122...
