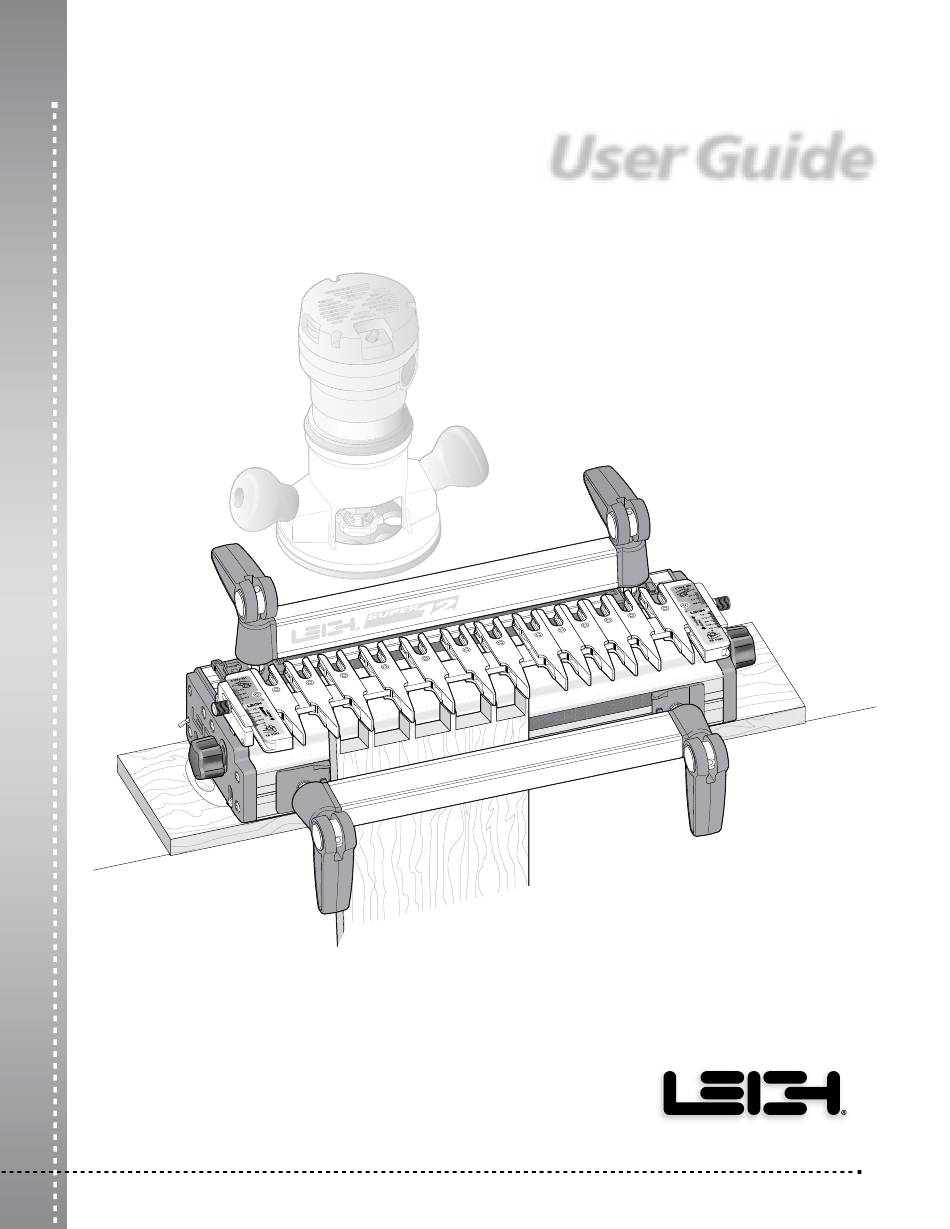

- Page 1 LEIGH SUPER JIGS User Guide User Guide For Leigh Super12, Super18 and Super24 Dovetail Jigs Leigh Router Joinery Jigs See page 79 for customer support 800-663-8932 Leigh Woodworking Tools www.leightools.com...
- Page 2 Watch the Online Congratulations! You now own a most useful and versatile Instructional dovetailing tool. The Leigh Superjig Dovetail Jig will help you cut an infinite variety of joints, and all of its major func- Video tions are described in detail in this user guide, plus there’s a...
- Page 3 Chapter 14 – Box Joints .................... 57 Chapter 15 – Hints and Tips ..................63 Appendix I – Attaching the Leigh e-Bush to the Router ........67 Appendix II – Bit Selection ..................69 Appendix III – Jig Parts ..................... 75 Appendix IV –...
- Page 4 The Leigh jig’s guidefinger assembly can be in any one of four joint modes, depending on what type of joint and which part of the joint you are routing.
- Page 5 SUPERJIG-12-18-24 User Guide INTRODUCTION Which Way Round Should the Board Go? As virtually all dovetail joinery is used to make boxes, drawers and chests etc., we devised these simple (and hopefully intuitive) icons to indicate which side of a board faces inwards or outwards on the finished “box”, and which side of the board faces outward (toward you, the operator), when it is clamped in the jig.
- Page 6 VRS can be used with a small shop vac or a large built in system. The VRS is easily attached without jig modification. Each VRS comes complete with all mounting hardware needed for any Leigh 24" D-Series jig, all Super Jigs or the earlier model Leigh D1600.
