Summary of Contents for ROOMS TO GO Ovis 60699

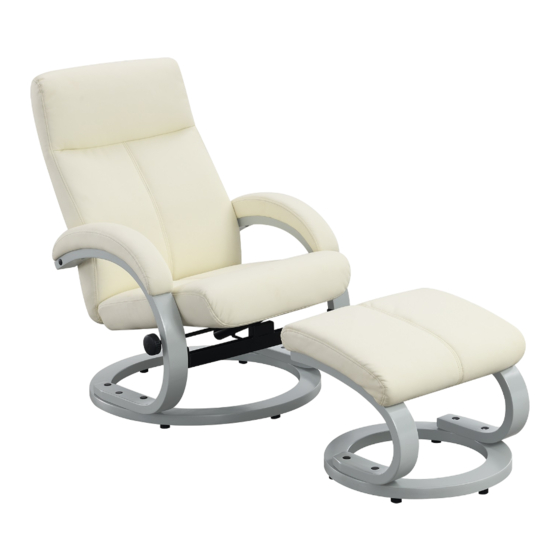

- Page 1 60699 Recliner & O oman...
- Page 2 Estimated Time for Assembly 10:00 - 15:00 Weight Limitation 300 lbs Tools Needed All necessary tools are included in the package.
- Page 3 PLEASE CONTACT US FOR QUESTIONS Email our support team: help@ovis.co...
-
Page 4: Package Content
PACKAGE CONTENT 4 PCS 4 PCS 10 PCS 2 PCS 2 PCS 1 PC M6 X 40 M6 X 45 M8 X 40 M8 X 60 M8 X 25 M8 X 60 4 PCS 10 PCS 2 PCS 1 PCS 3 PCS M6 X 14 M8 X 22... - Page 5 M8X40 4 sets...
- Page 6 M6X40 4 sets OTTOMAN FINISHED !
- Page 7 M8X40 6 sets Do not tighten bolts completely, will be tighten in later step.
- Page 8 M6X45 4 pcs Make sure factory installed nut is horizontally aligned for “B” bolt as shown If the installed nuts are not aligned horizontally, use the tip of allen wrench to adjust Tighten all bolts alignment in this step...
- Page 9 1set M8 X 60 “ F” buckle into “G”...
- Page 10 M8X60 2 pcs...
- Page 11 2 sets M8 X 25 “ E” buckle into “G”...
- Page 13 To recline the chair back, sit down and turn the side handle counter clockwise. Then adjust the chair back to your desired position and retighten the side handle by turning it clockwise FINISHED !
-
Page 14: For Additional Help
FOR ADDITIONAL HELP: Email our support team: help@ovis.co THANK YOU FOR YOUR PURCHASE!
