DR-30M
Motion sensor (PIR),
detection range 30 m
Do not dispose of this device in the trash along with other waste!
According to the Law on Waste, electro coming from households free of charge and can
give any amount to up to that end point of collec� on, as well as to store the occasion of
the purchase of new equipment (in accordance with the principle of old-for-new, regard-
less of brand). Electro thrown in the trash or abandoned in nature, pose a threat to the
environment and human health.
Purpose

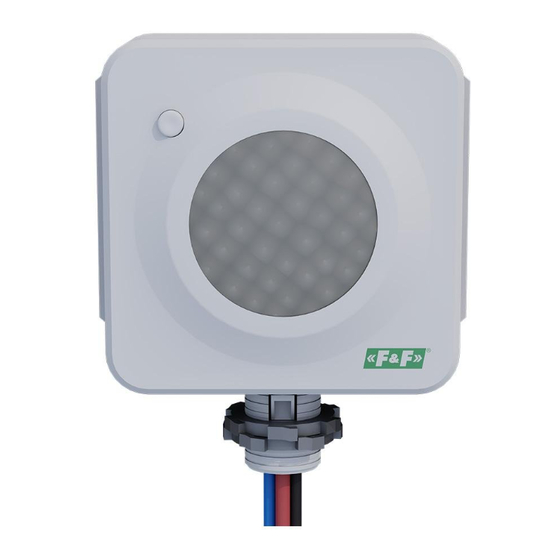

The DR-30M sensor is used for automatic, temporary switching
of lighting when a moving person or other object is detected. It is
especially recommended for use in high rooms and storage halls
up to 12÷15 meters high.
Functioning
The sensor detects sources of infrared radiation and analyzing
parameters such as the amount of heat emitted and the speed at
which the object moves determines the switching of the lighting.
Infrared sensors have the highest performance when detecting
motion perpendicular to the sensor axis and the lowest when
motion is directly in the direction of the sensor. Only if there is
no movement in the detection area triggers the lighting support
time. Another movement in the detection area and its subsequ-
ent disappearance in the course of time measurement starts the
support time from the beginning.
F&F Filipowski sp. j.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
- 1 -
Advertisement
Table of Contents
Related Manuals for F&F DR-30M
Summary of Contents for F&F DR-30M
- Page 1 Electro thrown in the trash or abandoned in nature, pose a threat to the environment and human health. Purpose The DR-30M sensor is used for automatic, temporary switching of lighting when a moving person or other object is detected. It is especially recommended for use in high rooms and storage halls up to 12÷15 meters high.
- Page 2 Thanks to the advanced digital signal processing technology, the DR-30M is capable of detecting movement at distances up to 30 m (wall mounting) and in a circle with a diameter of 20 m in the case of ceiling mounting (mounting height 15 m). The motion sensor has a built-in programmable twilight switch that prevents the lighting from being switched on during the day.
-
Page 3: Sensor Description
Sensor description Configuration The DR-30M sensor is supplied with the following settings: » the brightness level below which switching can occur: (50 lx), » switch-on time: 6 min. » detection range: 30 min. Press and hold the change settings button to enter the sensor settings mode. - Page 4 Release the button when the expected setting is indicated. Then set the desired value with short presses of the button. If the button is not pressed for 5 seconds, the signal li- ght will flash twice quickly, after which the current set- ting will be saved and the sensor will exit configuration mode.
- Page 5 Brightness level setting Without pressing <10 lx a button 1 press 50 lx 2 presses 150 lx 2000 lx (last setting – the indicator light will flash twi- 3 presses ce quickly, the setting will be saved and the detector will exit the configuration mode) Detection range setting Without pressing 10 m...
-
Page 6: Detection Area
Detection area Ceiling mounting Mounting height Detection range (diameter) 10 m 12 m 18 m 15 m 20 m - 6 -... - Page 7 Wall mounting Dimensions...
- Page 8 Mounting 1. Disconnect the power supply. 2. Remove the external (back) sensor cover. 3. Connect the wires according to the wiring diagram. 4. Fasten the base to the floor with two screws. 5. Assemble the sensor housing - push on the outer cover. 6.
- Page 9 The sensor is inactive for the first 30 seconds after the power supply is switched on. During this time, the PIR system warms up. The motion sensor can work indoors and outdoors in places where it is not exposed to direct rain or snowfall and to the possibility of splashing the sensor housing and its electrical connection points with water or other liquid.
- Page 10 Ceiling mounting Wall mounting - 10 -...
-
Page 11: Wiring Diagram
Wiring diagram - 11 -... - Page 12 Technical data power supply 100÷277 V AC maximum load current (AC-1) 16 A maximum load continuous 2300 W momentary 3000 W twilight activation threshold 10÷2000 lx motion detection 0.6÷1.5 m/s switch-on time 30 s÷20 min. (±10 s) detection angle 80° max detection range (T<22°C) ceiling mounting diameter 20 m...
-
Page 13: Power Table
Power table The maximum load capacity of the relay contacts depends on the nature of the load and the supply voltage. When installing the controller, observe the following indicative load ratings: tungsten halogen fluorescent energy-saving 2000 W 1250 W 1000 W 500 W 250 W The above data are indicative and will heavily depend on the design of a specific receiver (that is especially important for LED bulbs, energy-saving lamps, electronic transformers and... -
Page 14: Warranty
Warranty The F&F products are covered by a warranty of the 24 months from the date of purchase. Effective only with proof of purchase. Contact your dealer or directly with us. CE declaration F&F Filipowski sp. j. declares that the device is in conformity with the essential requirements of The Low Voltage Directive (LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC) Directive 2014/30/UE.
