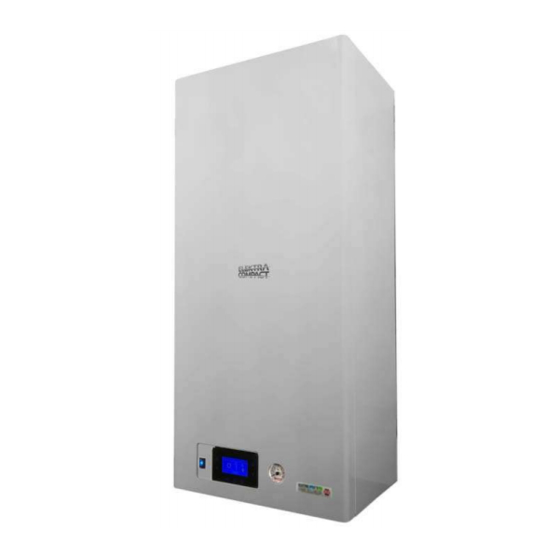

- Page 1 ® ELECTRIC ONLY HEATING WALL BOILER series Elektra Compact.. N 6-7-8-9-12-15-18 kW USER AND MAINTENANCE MANUAL EQUIPMENT CONFORM O IEC 60335- 2 IEC 60335- EN 60335- :2 + A 1:20...
- Page 3 ELECTRIC WALL BOILER Series ELEKTRA Compact.. N Thank you for choos ing an electric wall boile r FIAMMA, built with the most modern technologies, safe and tough materials, so as to ensure maximum efficiency of use, total quality of the device and extreme safety for user. The Elektra Compact series is built according to European standards dir.
- Page 4 WARNINGS: THIS APPLIANCE MAY BE USED BY CHILDREN FROM 8 YEARS OF AGE AND OVER AND BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE, PROVIDED THAT THEY SUPERVISED HAVE RECEIVED INSTRUCTIONS FOR THE SAFE USE OF THE APPLIANCE, SO THAT THEY UNDERSTAND THE RISKS INVOLVED.
-
Page 5: Overall Dimensions
OVERALL DIMENSIONS The Elektra Compact.. N series is available in seven power versions, with same overall dimensions: Elektra Compact 6 kW N 6 kW maximum electric power Elektra Compact 7 kW N 7 kW maximum electric power Elektra Compact 8 kW N 8 kW maximum electric power Elektra Compact 9 kW N 9 kW maximum electric power... - Page 6 HYDRAULIC CONNECTIONS - Connection arrangement diagram: Central Heating Delivery: ¾” M Central Heating Return: ¾” M VSR Central Heating Safety Valve (0.3 MPa - 3 bar): ½” F The appliance is designed to be continuously connected to the water mains without intermediate fittings.
-
Page 7: Main Technical Features
MAIN TECHNICAL FEATURES Elektra Compact 6 kW N 6 kW maximum electric power Single-phase power supply: 230-240 V - 50 Hz Weight: 38 kg. Central heating system: 6 kW electric/thermal power from no.2 heating elements (no.2 of 3x1 kW). Maximum head available to the circulator approx 7 m. Expansion vessel capacity 9 litres. - Page 8 MAIN TECHNICAL FEATURES Elektra Compact 15 kW N 15 kW maximum electric power Single-phase power supply: 230-240 V - 50 Hz Weight: 40 kg. Central heating system: 15 kW electric/thermal power from no.3 heating elements (no.2 of 3x2 kW and no.1 of 3x1 kW). Maximum head available to the circulator approx 7 m.
-
Page 9: Control Panel
POSITIONING OF THE BOILER The appliance must always be installed on a vertical solid wall capable of supporting its weight, using the support bracket included in the packaging. The bracket must be secured to the wall by means of three M8 screws with appropriate plugs for the type of wall (not supplied with the boiler). - Page 10 Keypad (control panel) ▲ ▲ ▼ ▼ ■ ● ◄ Function Display / Increase of the central heating system setpoint (or room ▲left (SW1) temperature) Display / Decrease of the central heating system setpoint (or room ▼left (SW2) temperature) ◄ Safety thermostat error reset / back function (SW3) ●...
- Page 11 ◄ (SW3): If the boiler has locked, press this button to attempt to release it. WARNING: the locking function is a software function. Release can be attempted for a maximum of 5 times during a period of 15 minutes. ● SW4): Can be used to access the "...
-
Page 12: Switching On The Boiler
SWITCHING ON THE BOILER The boiler is switched on by pressing the luminous main switch found on the left of the display in the dashboard. If the boiler is connected to a single-phase power supply source, the button lights up when pressed (230-240 V - 50 Hz). After the short graphic presentation, set the day and time (if required) and choose summer/winter operating mode ■... - Page 13 STATUS / DISPLAY DESCRIPTION Sanitary hot water setpoint DHW Set. Room setpoint Room Set. Presence of fault or lock X ERROR F X No communication between the display and the boiler board Communication error NOTE: In the fault log, the communication error is assigned code 250 "Degassing"...
-
Page 14: Symbol Mode
On the bottom left is the value of the system pressure detected by the pressure transducer and on the bottom right the current boiler operating mode ( winter mode, summer mode). SYMBOL MODE DESCRIPTION Central heating and sanitary hot water functions off. Central heating function off. -
Page 15: Settings Menu
SETTINGS MENU ● From the main screen, press (SW4) to access the " SETTINGS MENU ". The screen displayed will be as follows: The keys take on different functions depending on the actual screen displayed. The frame at the edge of the screen allows to indicate which function the corresponding button is ▼... - Page 16 Info boiler Select " Info boiler " in the " SETTINGS MENU " to view information regarding the devices connected to the boiler: The table below summarizes all the possible devices that can be displayed in the " Info boiler ", their description, and the values that they can assume: INFO INFORMATION DESCRIPTION / VALUES...
- Page 17 INFO INFORMATION DESCRIPTION / VALUES BOILER Circ feedb Primary zone pump status: ON: Active Pump Zone 1 OFF: Not active Secondary zone pump status: ON: Active Pomp Zone 2 OFF: Not active Mixing valve closing status: ON: Active Mix closing OFF: Not active Mixing valve opening status: ON: Active...
- Page 18 Setting boiler The second item " Setting boiler ” of the " SETTINGS MENU " can be used to view and modify the boiler and central heating system setting parameters. The parameters and their meanings are described in detail in the relevant paragraph. The menus for setting the boiler and heating system parameters have been sorted into sub-menus according to the type of setting and access right.
- Page 19 Access to the other sections of the " PARAMETERS MENU " (" Factory menu ", " Device menu ") is password protected, meaning that the correct password must be entered in the password screen. Accessing " Faults history " allows to view the list of the faults occurred in the boiler.
- Page 20 The " Degasser " option allows to activate the boiler circulator, to remove air residues ▼ ▲ ■ from the system. Also in this case, (SW6) [-], (SW7) [+] and (SW5) [OK] can be used to activate or deactivate the function. During this function, the PWM circulator maximum and minimum speed operating statuses are alternated, in order to facilitate the escape of air bubbles from the hydraulic circuit.
- Page 21 Setting display The third item of the " SETTINGS MENU " can be used to change the display settings. In the first screen, it is possible to change language, time, contrast and brightness. In the second screen, it is possible to change the touch sensitivity, perform a factory reset and monitor the serial communication between the display and the board of the boiler.
- Page 22 The " Data monitor " option allows to check the communication between the display and the board of the boiler. The following screen appears: in which the status of the exchanged data is shown next to the index on each line. If the data has been exchanged correctly, "...
- Page 23 The " PROV " method requires a smartphone to perform the procedure. The steps are as follows: 1) Select the fourth item " Start wizard " so that the boiler can generate a local network under the name " CHRONO WIFI ".
- Page 24 The fifth item " info WiFi " shows further information regarding the WiFi communication status. In particular: STATUS: the network status (connection enabled STATUS=1 otherwise STATUS=0). SSID: the name of the connected network. IP: the IP address assigned by the DHCP server to the boiler. SIGNAL: the signal strength detected by the boiler.
- Page 25 Returning to the " Setting WiFi " screen, the second page I will offer further options: 1) The first option, " WiFi monitor ", opens a screen where it is possible to view further WiFi connectivity information. In particular, in the first row shows the " WIFI ” connectivity status: WIFI DISCONNECTED: means the that boiler is not connected to the WiFi network.
- Page 26 Always in the second page of " Setting WiFi ”, the " Password App ” option can be used to change the password for accessing the smartphone application and control the operation of the boiler (the default password is " 0000 "). It is recommended that the password is changed once the boiler is connected to the WiFi network.
- Page 27 Programming The " Programming " menu allows to manage weekly schedules. In this way, the boiler communicates the ON request following the set daily program. Time resolution is 30 minutes. Selecting " Set program ", in the " Programming " sub-menu will open a screen where it is possible to change the weekly schedule.
- Page 28 Then set the heat request, either " ON " or " OFF ", moving around the display using the ▲ ▼ (SW7) [►] and (SW6) [◄] keys to ■ select, followed by (SW5) [OK] to confirm, or ◄ (SW3) [ESC] to change the band start time. ■...
- Page 29 The last item, " Set thermostat ", allows to choose whether to link the request of switching on of the boiler in heating mode issued by the current daily program with the status of the room thermostat on the board. In particular, in the "...
-
Page 30: Touch Screen Calibration
TOUCH SCREEN CALIBRATION A touch key calibration is completed the first time the power is switched on. Do not touch any keys until the Reset language selection screen appears. In case of button problems with the sensitivity of the touch keys after the first switch on, try to reset the display with the "Reset"... -
Page 31: Installation
INSTALLATION TECHNICAL NOTE FOR THE INSTALLER AND THE MAINTENANCE TECHNICIAN. PLUMBING DIAGRAM version: Elektra Compact ... kW N SYSTEM DIAGRAM LEGEND: 1 Central heating circuit expansion tank 9 litres 8 Safety valve 3 bar (central heating) 2 Electric boiler body 12 kW 9 Exhaust tap (air vent) 3 Bimetal safety thermostat 100°C 10 Variable head circulator... -
Page 32: Wiring Diagram (Single Phase)
WIRING DIAGRAM (single phase) ZONE VALVE 230-240V black white yellow F.E. blue black brown black brown grey yellow Interface 961.O2 green 51 51 50 49 48 47 46 45 44 43 42 41 40 38 37 36... - Page 33 GENERAL WIRING DIAGRAM - POWER (Single-phase) brown blue brown ON/OFF blue blue SIEMENS SIEMENS blue 960ELT black black black brown Contact brown brown Legend of wiring diagrams Phase Neutral Contactor sectioned phase Pump Gate command, triac no. 1 (12 kW version - 4 kW load) Gate command, triac no.
- Page 34 TRIAC - Wiring diagram ..7/8 kW .. 6 kW GATE G2 GATE G2 TRIAC 2 (1 kW) TRIAC 2 (1/2 kW) BIANCO da p.to 6 BIANCO da p.to 6 spinotto J5 NERO sez. 2,5 mm spinotto J5 NERO sez. 2,5 mm GATE G3 GATE G3 TRIAC 3 (2 kW)
- Page 35 TRIAC - Wiring diagram .. 9 kW ..12 kW GATE G2 GATE G2 TRIAC 2 (2 kW) TRIAC 2 (2 kW) BIANCO da p.to 6 BIANCO da p.to 6 spinotto J5 NERO sez. 2,5 mm spinotto J5 NERO sez. 2,5 mm GATE G3 GATE G3 TRIAC 3 (4 kW)
- Page 36 TRIAC - Wiring diagram ..15/18 kW GATE G2 TRIAC 2 (3/4 kW) BIANCO da p.to 6 spinotto J5 NERO sez. 4,0 mm GATE G3 TRIAC 3 (4/6 kW) NERO da p.to 7 spinotto J5 NERO sez. 4,0 mm GATE G4 TRIAC 4 (2 kW) ROSSO da p.to 2 spinotto J5...
- Page 37 Function Value Maximum primary circuit temperature 80 °C Circulator lock prevention operation time 10 sec Circulator lock prevention activation time 24 hours Anti-freeze temperature On (circulator only) < 8 °C Anti-freeze Temperature On (circulator and power) < 5 °C Anti-freeze Temperature Off >...
- Page 38 Description Value idx: 012 Boiler with PSA water pressure switch connected to poles 36 and 37 and safety thermostat connected to poles 42 and 43 (compatibility for val: 000 960ELT.FG3.00 board replacement) Boiler with safety thermostat connected to poles 36 and 37 and val: 001 system pressure transducer connected to poles 41, 42 and 43 The board is configured for operation with idx:...
- Page 39 Installation and sliding temperature operation The connection of the External Probe (SE) requires the use of the Original FIAMMA Kit code F.532, offered as part of the accessories for Elektra series electric boilers. The electric connection must be to the terminals (S and E) outside the main electric panel already arranged in the standard wiring of the boiler.
-
Page 40: Anti-Freeze Function
ANTI-FREEZE FUNCTION When the delivery probe detects a temperature below 7°C, the circulator is activated. If the temperature drops below 4°C, the main exchanger is switched on until the delivery temperature is raised to 20°C. The anti-freeze function is also active when the boiler is OFF (in stand-by mode but with the illuminated main switch on). -
Page 41: Fault Codes
FAULT CODES Faults are indicated by an " ERROR X ” message, with X being the corresponding error code. "ERROR” Meaning Code Functional system shutdown due to system pressure below 0.7 bar idx: 012 val:1 Central heating probe fault (SM) Safety thermostat (TS) trip. -
Page 42: Spare Parts
SPARE PARTS Detail view: Electric Box Detail view: Body / Heating Elements... - Page 43 Boiler front Spare parts legend Elektra Compact N upper sheet metal cover Cod.P.8092 Elektra Compact four-pole power terminal block Cod.P.2054 Power supply line terminal 230-240 V (L) x 10 pcs Cod.FGB.2073 Neutral power supply terminal 230-240 V (N) x 10 pcs Cod.FGB.2072 ...
- Page 44 Drain tap ¼" Cod.FGB.225 Elektra Compact C/BP-L delivery pipe Cod.P.7807 Elektra Compact N bottom grid Cod.P.8079 Hydraulic connection template Code P.8078 Elektra Compact C/N/BP-L/BP electronic board Cod.P.2057 Elektra Compact d.P.2153 O-Ring seal x heating element 3x2 kW Cod.FGB.238 Elektra Compact 6-12-18 N heating element 3x2 kW Code FGB.224 Contact safety thermostat 100°C Cod.P.1195...
-
Page 45: Dichiarazione Di Conformita
Tipo di apparecchio -Type of equipment : Caldaia murale elettrica / Electric wall boiler Marchio commerciale - Trademark : (dicitura FIAMMA / FIAMMA marked) Tipo / Modello – Type / Model : Vedi Modello su targhetta dati See the model in data code ELEKTRA.. - Page 46 Type of equipment - Tipo di apparecchio : Electric wall boiler / Caldaia murale elettrica Trademark - Marchio commerciale : (marked FIAMMA / FIAMMA dicitura) Type / Model - Tipo / Modello : See the model in data code / Vedi Modello su targhetta dati ELEKTRA..
- Page 48 Green Acres – Oakley Green Road – WINDSOR BERKSHIRE SL4 4QF. Tel. 01628.636099 – 01628.676900 – Fax. 01628.676958 – E-mail: contact@electriccombiboilers.uk www.electriccombiboilerscompany.com FIAMMA GIRO s.r.l. Company group Sede legale e stabilimento: via L. Landucci n°.2/B - 51100 PISTOIA - ITALY Tel.(+39).0573.532812 Fax.(+39).0573.532890 - E.mail: fiammaPT@fiammagiro.it...
