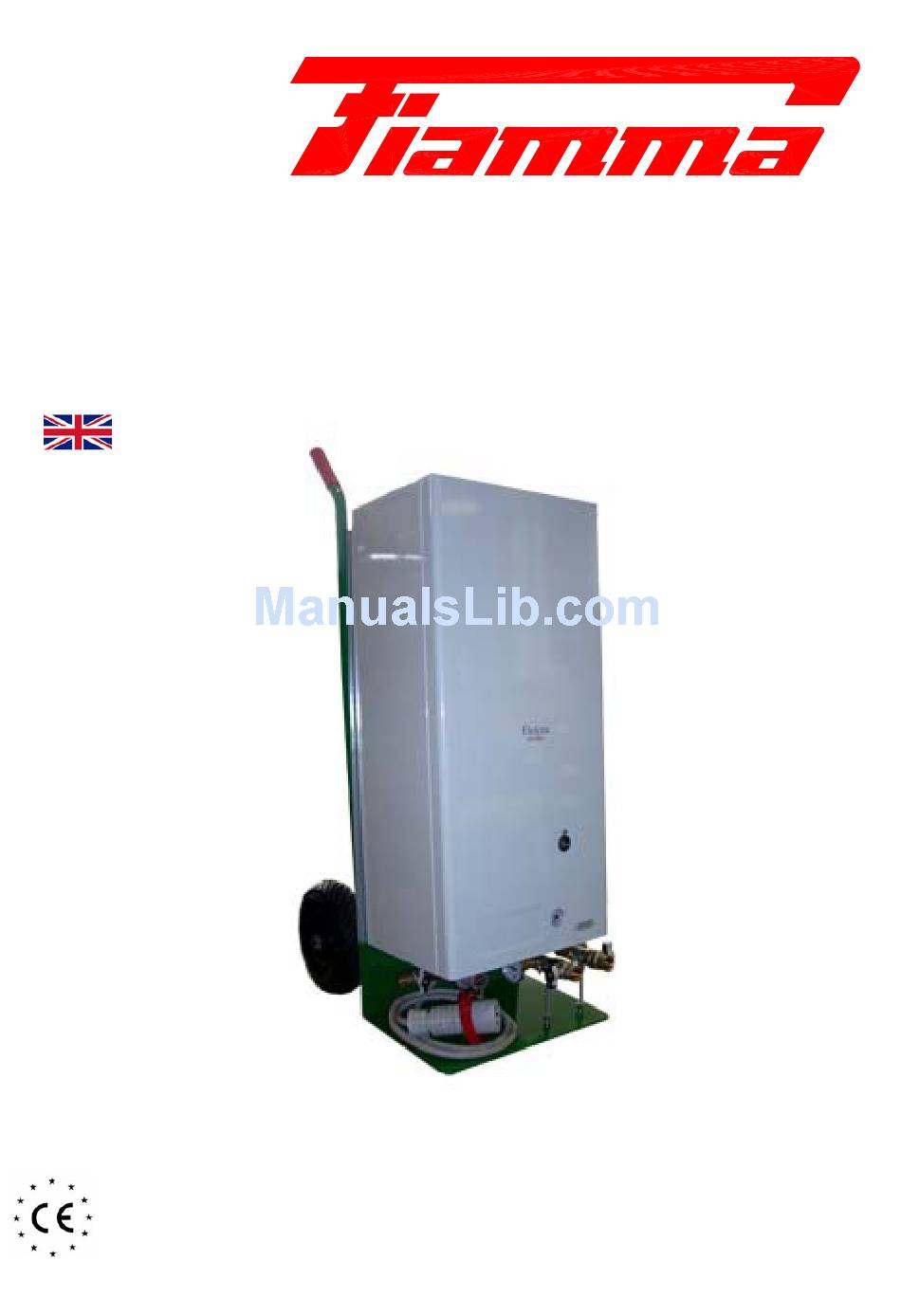

ELECTRIC WALL BOILER
ONLY HEATING
Elektra.. 18 kW N
Power supply: 400 V / 50 Hz + N (three-phase power)
USER AND MAINTENANCE MANUAL
EQUIPMENT CONFORM TO EC DIRECTIVE 2006/95 / EC. And built in compliance with IEC 60335-2-21:
2012 IEC 60335-1: 2010 EN 60335-2-21: 2003 + A1: 2005 + A2: 2008 - EN 60335-1: 2012 - EN 62233: 2008
Trolley series
016
®

Advertisement

loading

Related Manuals for Fiamma Elektra 18 kW N 016 TROLLEY

Summary of Contents for Fiamma Elektra 18 kW N 016 TROLLEY

  • Page 1 ® ELECTRIC WALL BOILER ONLY HEATING Elektra.. 18 kW N Trolley series Power supply: 400 V / 50 Hz + N (three-phase power) USER AND MAINTENANCE MANUAL EQUIPMENT CONFORM TO EC DIRECTIVE 2006/95 / EC. And built in compliance with IEC 60335-2-21: 2012 IEC 60335-1: 2010 EN 60335-2-21: 2003 + A1: 2005 + A2: 2008 - EN 60335-1: 2012 - EN 62233: 2008...
  • Page 3 Trolley Presentation Thank you for choosing an electric wall boiler FIAMMA, built with the most modern technologies, safe and tough materials, so as to ensure maximum efficiency of use, total quality of the device and extreme safety for user. The series Elektra.. is built according to European standards dir.
  • Page 4 WARNINGS: THIS EQUIPMENT MAY BE USED BY CHILDREN FROM 8 YEARS AND UP TO PERSONS WITH CAPACITY PHYSICAL, SENSORY MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE, A CONDITION THAT SUPERVISION OR WHO WILL GET DIRECTIONS FOR USE IN THE DEVICE SAFELY TO UNDERSTAND THE RISKS INVOLVED.
  • Page 5 DIMENSIONS The series Elektra.. N has four power levels, but the same overall dimensions: Elektra 18 kW N TROLLEY 18 kW maximum electrical output ◄ ► ◄ ► ▲ ▼ Appliance dimension: Packaging dimensions: L (Width): 400 mm Width: 440 mm H (Height): 875 mm Height:...
  • Page 6 Hydraulic connections - Dimensional of connection arrangement Heating delivery: ¾” Heating return: ¾” VSR Heating safety valve (0,3 MPa - 3 bar): ½” Manual filling tap (restoring water pressure) The unit is expected to be connected in a continuous manner to the water mains without the use of a set of junctions.
  • Page 7 MAIN TECHNICAL FEATURES Elektra 18 kW N TROLLEY 18 kW maximum electrical output Three-phase electrical supply: 400 V - 50 Hz. Weight: 39 kg. Electrical / heat power available at heating of 18 kW obtained by n°.3 Resistance group (n°.3 da 3x2 kW). Maximum head available at the pump of 7 m.c.a.

  • Page 8: Control Panel

    CONTROL PANEL General Display hydrometer switch The control panel is composed of: display, function selection keys, general switch and the hydrometer it si placed in the lower left corner in front of the unit (see image above). Using analogical hydrometer The analogical hydrometer control panel has a dial with unit of measure in a bar, by 0 to 6 bar.
  • Page 9 Keyboard panel (Control panel) Meaning of the keys in user mode Function Change and set parameters (J5) Change and set parameters (J6) - ON - OFF switching (long press) ON/OFF (J7) - Display temperature output / Display setpoint output - Unlock error of safety thermostat MODE (J4) Summer –...
  • Page 10 CHOICE OF THE OPERATION MODE (Winter/Summer) Pressing the key MODE (J4), i twill be chosen the mode of operation, wintry or summery. Pressing repeatedly each time for at least 5 seconds, you switch from WINTER to SUMMER or from SUMMER to WINTER then. When the device will be in WINTER mode, on the display will appear the Symbol (snow).

  • Page 11: Hydraulic Scheme

    INSTALLATION TECHNICAL NOTE FOR INSTALLER AND TECHNICAL MAINTENANCE HYDRAULIC SCHEME (Elektra 18 kW N TROLLEY version) Legend - TS Safety thermostat. - rs Filling tap. - PA Water pressure switch. - CC Boiler body. - VSR Safety valve heating circuit ½”x0,3 MPa (3 bar). Thermowell for immersion sensor.
  • Page 12 CONNECTING SCHEME 230-240V black white yellow green F.E. brown blue black brown black black grey Interfa c e 961.O 43 4241 40 51 51 50 49 48 47 46 45 44 38 37 36 PS A...
  • Page 13 MAIN ELECTRIC SCHEME brown brown brown blue brown ON/OFF blue blue SIEMENS SIEMENS blue MAIN PCB black black Combination triac controls - PHASES black R,S,T Contact brown brown Legend electric scheme Single phase Neutral Selected phase from contactor RT-ST-TT Electric pump (circolatore a prevalenza variabile) Control of contact TS on contactor of power (C-NO) Control gate triac n°1 (4 KW power) Control gate triac n°2 (2 KW power)
  • Page 14 TRIAC – Connection scheme...
  • Page 15 MANUFACTURE CONSTANTS Function Value Maximum temperature primary circuit 80 °C Time of pump functioning in anti-lock 10 sec Intervention time anti-lock pump 24 hour Temperature antifreeze On (only circulator) < 8 °C Temperature antifreeze On (heat exchanger ignition) < 5 °C Temperature antifreeze Off >...
  • Page 16 SELECTION JUMPERS (move the jumpers with no power board) Jumper position 0 Jumper position 1 Jumper Default High temperature (radiator) Low temperature (floor) Combined Heating only Sanitary with tank Sanitary instantaneous CONTROL OF MAIN HEAT EXCHANGER (BOILER BODY) According to the required power during the heat request, the controls by G1 to G3, G5 and G5B related to the main exchanger are turned on all or partially.

  • Page 17: Antifreeze Function

    Installation and functioning at sliding temperature For the connection of the External Probe, it shall be used the Original Kit FIAMMA code F.532 provided in the accessories of the electric boilers Elektra. The electrical connection shall be done in the external terminal at the general electric panel already prearranged in the standard cabling of the boiler.
  • Page 18 REQUEST HEATING At the closing of the room thermostat contact, if the board is in winter mode, the system pump is only activated if the primary exchanger temperature is higher than the set temperature using the parameter P6. If the temperature value detected by the primary exchanger probe is lower than the flow temperature setpoint set, the triacs are turned on in sequence according to the power required.
  • Page 19 Filling and venting Fill and vent the system correctly. If direct venting of the rotor compartment is necessary, the venting function can be started manually. By turning the control button to the central position, to the vent symbol, the vent function is activated after 3 seconds. The duration of the vent function is 10 minutes and is shown by the rapid flashing of the green LED.
  • Page 20 MEANING OF THE KEYS OF TEMPERATURE MENU To log in temperature menu, press simultaneously (J3) and (J5) keys. The symbol will appear on the display. Function ON/OFF (J7) Exit by temperature menu Temperature index increase (J2) Temperature index decrease (J3) MEANING OF KEYS OF PARAMETERS MENU To log in parameter menu, press simultaneously (J2) and...
  • Page 21 When the user closes the contact of the room thermostat, the system requests the setting of the system design temperature that will be used for the execution of the second part of the test (t. 1 b = test 1 - second part) according to UNI EN 1264-4, paragraph 4.1.4, with a duration of 96 hours. With the keys (J2) and (J3) you set the project value for the system, then when the...
  • Page 22 If you wish to continue with the second part of the test, set the set point in hours using the keys (J2) and (J3) and confirm the value set with MODE (J4). The display shows that the second test is being carried out with the text t. 2. The count of the test hours starts again from zero and takes place only if the temperature measured by the probe of the main heat exchanger is higher than or equal to the design temperature, the other way around the number of hours is replaced with the word "---"...
  • Page 23 MALFUNCTIONING CODE In the presence of anomalies shows " Err F X " where X is the corresponding error code. Code “Err” Meaning Hardware EEPROM failure Insufficient system water pressure Boiler delivery probe error Safety thermostat block. To restore press the ON / OFF (J7) system RESET OF THE APPARATUS (RESET) To unlock the device, press the ON / OFF (J7) button which also has the "Reset"...
  • Page 24 FUNCTIONING WITH REMOTE CONTROL ENCRONO OT1 or OT2 Elektra.. , can be connected by means of its board and an additional module to install on a prearranged part, to a compatible remote control device Opentherm®, like Encrono OT1 or OT2. This can be obtained by means of the interface board (additional module).
  • Page 25 RANGE OF SETPOINT ADJUSTABLE BY MEANS OF REMOTE CONTROL ÷ Interval of temperature setting with high 30 °C 75 °C - step 1 °C temperature system (JP7 = 0) Pre-set value: 60 °C ÷ Interval of temperature setting with low 15 °C 40 °C - step 1 °C temperature system (JP7 = 1)

  • Page 26: Spare Parts

    SPARE PARTS Particular - Upper particular / resistance / Boiler body / resistances...
  • Page 27 Front unit Spare parts - Legend Tetrapolar terminal block for Elektra Cod.P.2054 12/18………………..……………… Tetrapolar terminal block for Elektra 24………………..…………………. Terminal of the electric supply line 230-240 V (Ph)…..………..…….. Cod.P.2073 Terminal of the electric supply line 230-240 V (blue - N)…………..Cod.P.2072 Terminal line of electrical ground (yellow/green)…….………………..
  • Page 28 Right side panel of casing ……………………………………………… Cod.P.2029 Electrical wiring……………….……..…………………………………… Cod.P.7500 Body boiler Elektra 6/12 N/C/B/BP-L……….………………………….. Cod.F.1955 Body boiler Elektra 18 N/C/B/BP-L…………………………………….. Cod.F.1956 Body boiler Elektra 24 N/C/B/BP-L…………………………………….. Cod.F.1957 Return tube (heating plant-dima) …..…..……………………………... Cod.P.2042 Outlet tube hot water heating plant-boiler body……..……………….. Cod.P.2079 Lower panel (lower grid)…………………………………………………...

  • Page 31: Dichiarazione Di Conformita

    Tipo di apparecchio -Type of equipment : Caldaia murale elettrica / Electric wall boiler Marchio commerciale -Trademark : (dicitura FIAMMA / FIAMMA marked) Tipo / Modello – Type / Model : Vedi Modello su targhetta dati See the model in data code ELEKTRA 6-12-18-24 ..
  • Page 32 Green Acres – Oakley Green Road – WINDSOR BERKSHIRE SL4 4QF. Tel. 01628.636099 - 01628.676900 - Fax. 01628.676958 - E-mail: euroboilerparts@hotmail.co.uk www.euroboilerparts.co.uk FIAMMA GIRO s.r.l. Company group Sede legale e stabilimento: via L. Landucci n°.2/B - 51100 PISTOIA - ITALY Tel.(+39).0573.532812 Fax.(+39).0573.532890 - E.mail: fiammaPT@fiammagiro.it...
