5216 Portside Dr., Medina, OH 44256 USA • PH: 1 330.723.0599 • FAX: 1 330.722.5037
FOR CUSTOMER SERVICE CALL
330-723-0599. DO NOT CALL
RETAILER OR RESELLER FOR SERVICE
AS THEY ARE NOT AUTHORIZED TO
RESOLVE ANY SERVICE ISSUES.
FOR WARRANTY AND FEDERAL SAFETY
STANDARD COMPLIANCE CERTIFICATES,
PLEASE VISIT OUR WEBSITE AT
www.childcraftbaby.com
ASSEMBLY ASSISTANCE
IMPORTANT: Retain for future reference and
read carefully.
Child Craft strives for the highest quality in our
products but occasionally a missing part or
problem can occur during assembly.
If any parts are missing or broken or you need
assistance with assembly, DO NOT return the
product to your dealer. Go to our website at
www.childcraftbaby.com or call Child Craft for
assistance at 1-330-723-0599 (Monday through
Friday, 9:00 a.m.– 4:00 p.m. Eastern Time). Please
have the model number and manufacture date
available when you call or write us at:
Child Craft, 5216 Portside Dr., Medina, OH 44256
ASSEMBLY INSTRUCTIONS
• Adult assembly required.
• Read all instructions BEFORE assembly and USE
of product.
• Unpack carton, remove packing materials,
including polybag. Identify and check all parts.
www.childcraftbaby.com
Denman Chest
Model Covered: F03602
KEEP INSTRUCTIONS FOR FUTURE USE

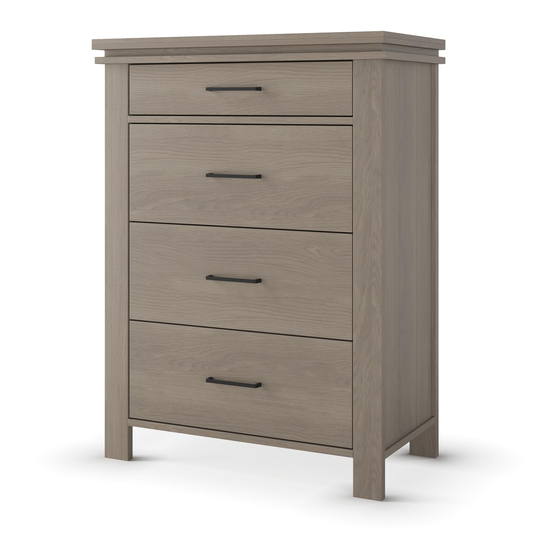

Assembled Chest
Record the information for your product here:
Model number:
Manufacture date: ___________________
PO number:
1
.
___________________
___________________
AB20449_G1
