- Page 1 DDC-12 DMX Controller...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 29.04.2022, ID: 258125 (V3)
-
Page 3: Table Of Contents
1.1 Further information........................... 6 1.2 Notational conventions........................7 1.3 Symbols and signal words....................... 7 Safety instructions............................. 9 Features............................... 12 Starting up..............................13 Connections and controls........................16 Technical specifications........................19 Plug and connection assignment....................20 Protecting the environment......................21 DDC-12 DMX Controller... - Page 4 DDC-12 DMX Controller...
-
Page 5: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. DDC-12 DMX Controller... -
Page 6: Further Information
Our online guides provide detailed information on technical basics Online guides and terms. Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. DDC-12 DMX Controller... -
Page 7: Notational Conventions
The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. DDC-12 DMX Controller... - Page 8 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – danger zone. DDC-12 DMX Controller...
-
Page 9: Safety Instructions
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. DDC-12 DMX Controller... - Page 10 Unplug the external power supply before electrical storms occur and when the device is unused for long periods of time to reduce the risk of electric shock or fire. DDC-12 DMX Controller...
- Page 11 Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐ teries. NOTICE! Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. DDC-12 DMX Controller...
-
Page 12: Features

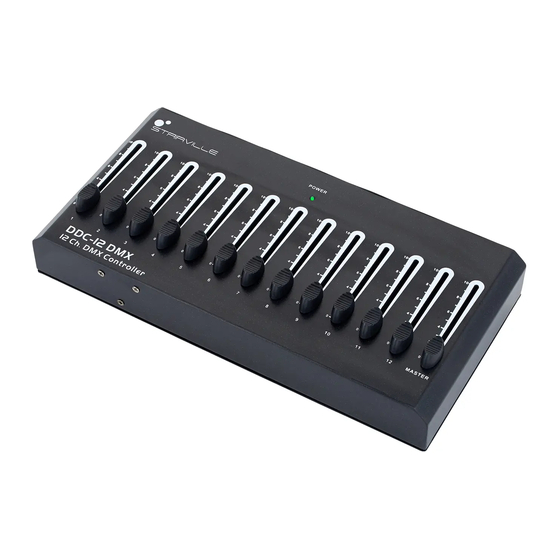

Features Features Special features of this 12-channel DMX controller 12 channel faders Master fader Compact design Simple operation Power adapter included DDC-12 DMX Controller... -
Page 13: Starting Up
Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Power supply You can use either a 9-V battery or the 9-V connector for external power supply. Before con‐ necting check for correct polarity. DDC-12 DMX Controller... - Page 14 Possible data transmission errors For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. DDC-12 DMX Controller...
- Page 15 Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). DDC-12 DMX Controller...
-
Page 16: Connections And Controls
Connections and controls Connections and controls Top view ö POWER MASTER DDC-12 DMX Controller... - Page 17 The channel faders allow up to twelve DMX channels to be controlled individually. In the device software, assign each connected DMX devices a channel in accordance with its position in the daisy chain: first device = 1 … last device = 12. DDC-12 DMX Controller...
- Page 18 Connections and controls Rear panel & DMX OUT DC INPUT POWER 9VDC 100mA Min. 4 [DMX OUT] DMX output 5 [POWER] Main switch. Turns the device on and off. 6 [DC INPUT] Connecting socket for power supply unit DDC-12 DMX Controller...
-
Page 19: Technical Specifications
Dimensions (W × H × D) 301 mm × 50 mm × 155 mm (w/o faders) 301 mm × 65 mm × 155 mm (w/ faders) Weight 1.2 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) DDC-12 DMX Controller... -
Page 20: Plug And Connection Assignment
The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) DDC-12 DMX Controller... -
Page 21: Protecting The Environment
Batteries must not be disposed of as domestic waste or thrown into fire. Dispose of the bat‐ teries according to national or local regulations regarding hazardous waste. To protect the environment, dispose of empty batteries at your retail store or at appropriate collection sites. DDC-12 DMX Controller... - Page 22 Dispose this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. DDC-12 DMX Controller...
- Page 24 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
