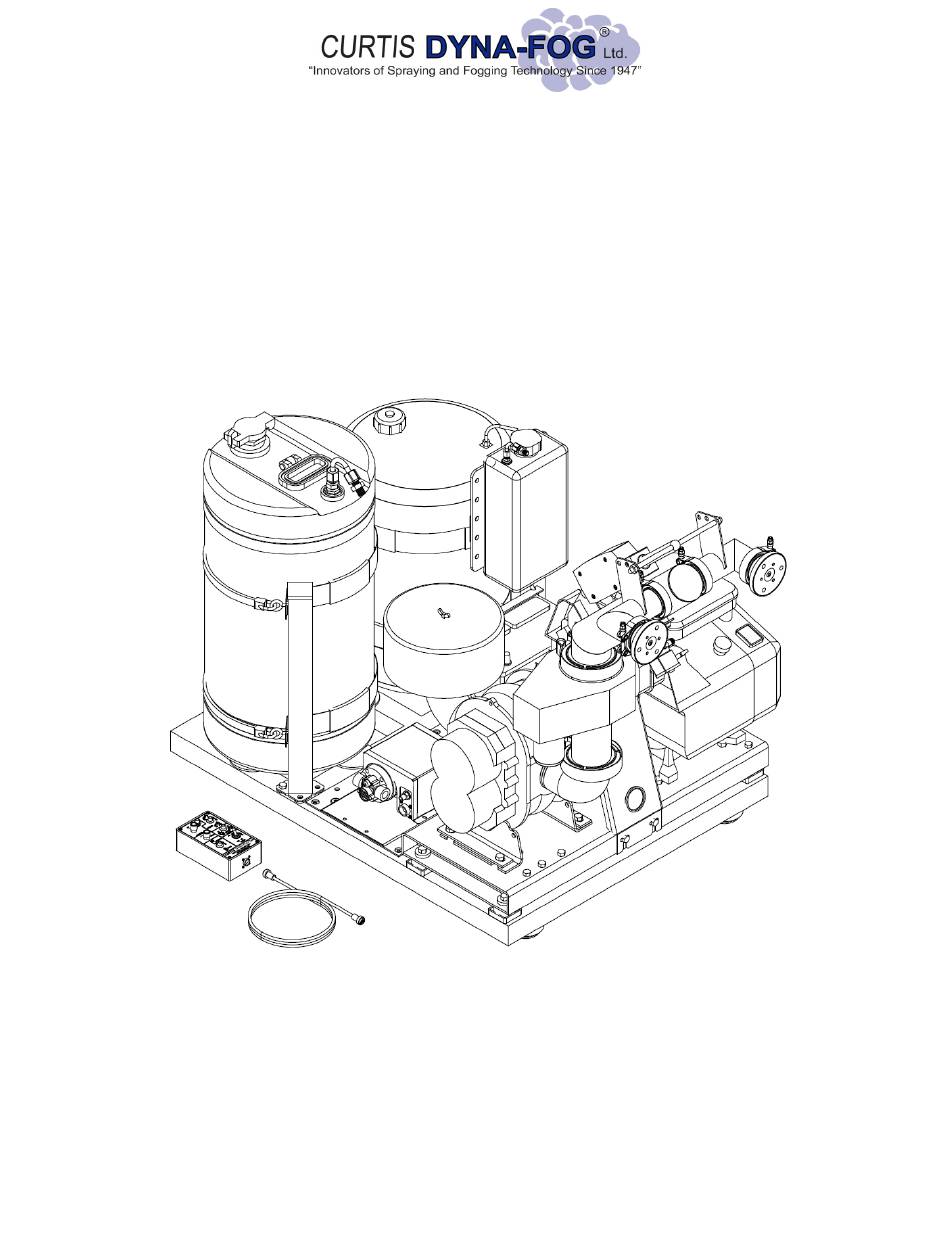

MAXI-PRO
2D ULV
Multi-Purpose
Cold Fog Aerosol Applicator
Instruction Manual for Operation and Service
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAXI-PRO 2D ULV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Curtis Dyna-Fog MAXI-PRO 2D ULV

Summary of Contents for Curtis Dyna-Fog MAXI-PRO 2D ULV

  • Page 1 ™ MAXI-PRO 2D ULV Multi-Purpose Cold Fog Aerosol Applicator Instruction Manual for Operation and Service...
  • Page 2 ™ ® DYNA-FOG Maxi-Pro MODEL 2745, SERIES 2 Covered By United States Patent Number 6,206,300 Other US and Foreign Patents Pending Manufactured by: Curtis Dyna-Fog, Ltd. 17335 U.S. Highway 31 North Westfield, Indiana 46074, U.S.A. www.dynafog.com...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Machine Specifications Major Components Diagram Forward Description . ..7 Working Principles ..8 Fluid Systems Diagram Assembly Instructions ...10 Charging The Battery ...10-11 Machine Installation Safety Precautions....................13-14 Operation........................15 Pre-Spray Check List...................16 Engine Reparation....................17 Starting The Engine ........18 Liquid Flowability Measurement..............19-20 Typical Insecticide Flow Rate................21...
  • Page 4 Boom Assembly .43-44 Ulv Nozzle Assembly Flexible Coupling Assembly ..46 Fuel Tank Assembly ..47 Formulation Tank Assembly Flush Tank Assembly Fluid Systems Diagram Idleback Kit Engine Owner Manual ..............See Attached Manual Blower Service & Repair . .See Attached Manual...

  • Page 5: Machine Specifications

    MACHINE SPECIFICATIONS MAXI-PRO 2D, MODEL 2745 SERIES 2 TYPE: ULV Chemical Aerosol Applicator ENGINE: Briggs & Stratton, OHV Commercial Grade, Twin Cylinder, 4-cycle, gasoline powered, electric start with heavy duty alternator. Tachometer /Hour meter. BLOWER: Positive displacement. Straight lobe, rotary type, direct drive. Output Air Pressure: Rated at 0-10 PSI (.68 Bar).

  • Page 6: Major Components Diagram

    MAJOR COMPONENTS DIAGRAM...

  • Page 7: Forward

    FOREWORD The application of insecticides is the predominant method by which man attempts to control the size of insect populations. Due to environmental and economical reasons, it is desirable to treat a given area with the least amount of insecticide that can be made to be effective.

  • Page 8: Working Principles

    WORKING PRINCIPLES An 18 Horsepower, electric start, four-cycle gasoline engine with a flexible coupling on its output shaft is used to drive a positive displacement rotary-blower. The air entering the blower is first filtered through a large stainless steel filtering element. The blower supplies air pressure to the nozzle.

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Uncrate the unit and remove all packing materials. NOTE: It is a good idea to retain the original machine shipping carton for storage. Place the remote control unit where it will not be damaged while the machine being installed. Remove the machine from the shipping skid by removing the three lag screws that retain the shipping brackets.
  • Page 11 CAUTION NEVER FILL BATTERY IN MACHINE AS SPILLS WILL DAMAGE FINISH AND CAUSE PREMATURE CORROSION AND/OR DAMAGE TO COMPONENTS. Charge 12 volt battery at 3 - 4 amps until the acid temperature is above 80°F (26° C), and the hydrometer reading is 1.250 or higher. Acid temperature must never exceed 125 °F while charging.

  • Page 12: Machine Installation

    MACHINE INSTALLATION Remove the machine from the skid and lift the machine onto the vehicle with the discharge end of the machine toward the rear of the vehicle. Pass the remote control unit through an open window and locate it within reach of the person operating the machine.

  • Page 13: Safety Precautions

    SAFETY PRECAUTIONS WARNING READ AND UNDERSTAND THESE SAFETY PRECAUTIONS BEFORE OPERATING MACHINE ENGINE AND FUEL; This machine uses gasoline as the fuel for the internal combustion engine and all precautions commonly applying to this volatile fuel should be observed. Exercise extreme caution to avoid spilling of gasoline. If spillage occurs, wipe it off and allow evaporation time before starting the engine.
  • Page 14 a. Fire Extinguisher, chemical-type rated for fuel fires. b. First Aid Kit. c. Eye Wash Solution. d. Safety Glasses. e. Container of Oil Dry Compound. f. Gloves Rated for High Temperature. g. Respirator Adequate for Formulation being used. 5. CHILDREN: Many spraying operations are performed in residential areas, commonly at dusk.

  • Page 15: Operation

    MACHINE OPERATION CAUTION READ THIS COMPLETE OPERATION SECTION AND THE SECTION ON SAFETY PRECAUTIONS BEFORE STARTING THE MACHINE FOR THE FIRST TIME. For first time operation, the sections on MACHINE INSTALLATION and MACHINE OPERATION must be performed before proceeding with this section. When operating this machine for the first time, move to an uncongested and well-vented work area away from flammable materials.

  • Page 16: Pre-Spray Check List

    PRE-SPRAY CHECK LIST Verify that the remote control box is within easy reach of the operator. 2. Verify that the adjustable nozzle boom is in the correct position as required for the spraying operation to be accomplished, and that the ring clamp which allows this positioning is tight.

  • Page 17: Engine Reparation

    ENGINE PREPARATION Oil Recommendations Change and add oil according to chart below. Do not overfill. Use high quality detergent oil classified "For service SC, SD, SE, SF, SG" as B&S "warranty certified" SAE 30 oil, part no. 100005. Use no especial additives with recommended oils. (*) Air cooled engines run hotter than...

  • Page 18: Starting The Engine

    STARTING THE ENGINE CHOKE ENGINE: Move engine choke control to position lever in "choke" position (pulling the control rod). NOTE: This should fully close choke on carburetor. Note: The manual choke is provided for cold starting of the engine. Once the engine has been allowed to warm-up, choking the engine should not be needed for restarting.

  • Page 19: Liquid Flowability Measurement

    MEASURING LIQUID FLOWABILITY (VISCOSITY) In order to achieve consistent results in generating aerosols with a volume-median- diameter (VMD) in the sub 20 micron range, several variables must be kept under control at the same time. The ability of an aerosol generator to consistently break up a liquid into appropriate sized droplets depends on (3) key elements: The available energy flow (air flow) through the nozzle is governed by the blower speed.
  • Page 20 To measure the flow ability (viscosity) of your formulation: 1. Place a sample of the formulation liquid to be dispensed in the relative viscosity meter provided with the machine such that the liquid level is above the top line. 2. Hold the meter vertical and allow the liquid to flow through the brass orifice at the outlet end of the meter into an appropriate container.

  • Page 21: Typical Insecticide Flow Rate

    TYPICAL FLOW RATES FOR INSECTICIDES TABLE 1 FLOW RATE PYRETHRIN D1BROM VEHICLE DURSBAN TECHNICAL OZ/MIN OZ/MIN SPEED MPH (CHLORPYRIFOS) MALATHION OZ/MIN OZ/MIN 1.4-2.7 2.0-2.5 3.0-6.0 1.0-2.1 2.7-5.3 4.0 - 5.0 6.0-12.0 2.0-4.3 — 6.0-7.5 9.0-18.0 3.0-6.5 — 8.0-10.0 — 4.0-8.6 FLOW RATE VEHICLE SPEED...

  • Page 22: Particle Size Tables

    PARTICLE SIZE (VMD) IN MICRONS RESPECT TO FLOW RATE AND BOOM PRESSURE TABLE 2 DIBRON (NAILED) (TIME THROUGH FLOW METER APPORX. 34 SECONDS) LIQUID LIQUID FLOW RATE FLOW RATE BOOM PRESSURE OZ/MIN ML/MIN 4PSI 3PSI 2PSI 8PSI 8PSI 4.7 VMD 5.7 VMD 8.4 VMD 10 VMD...

  • Page 23: Syncroflow Section

    SYNCROFLOW SYSTEM When equipped, the Curtis Syncroflow System allows the dispensing of formulation to be either a constant flow ("manual") regardless of vehicle speed, or a variable flow ("syncroflow") which is correlated to vary proportionately with vehicle speeds from 0 to 20 m.p.h.
  • Page 24 Adjust the knob for the rate of flow specified by the formulation label that pertains to your vehicle speed. Example: If a formulation label calls for an output of 3 oz at 5 MPH (89 ml at 8 Km/h), 6 oz at 10 MPH (177 ml at 16 Km/h), 9 oz at 15 MPH (266 ml at 24KM/h), and 12 oz at 20 MPH (335 ml at 32 Km/h), you may set the flow rate at any of these speeds.

  • Page 25: Maintenance

    PREVENTIVE MAINTENANCE NOTE: A successful maintenance program begins after the first use of the machine and not after the machine has ceased to function. PREVENTIVE MAINTENANCE: Occasionally inspect mounting hardware to ensure that fasteners are tight. Loose hardware can cause excessive vibration leading to major failure of components.

  • Page 26: Maintenance Schedule

    MAINTENANCE SCHEDULE TABLE 5 NOTE: Change oil more often when operating in high ambient temperatures. Clean air filters more often under dusty conditions or when airborne debris is present. See engine and blower manuals.

  • Page 27: Formulation/Flush Solenoid Valve

    3-WAY SOLENOID VALVE (FORMULATION/FLUSH) The corrosion resistant 3-way solenoid valve is located under the Nozzle Boom assembly (close to blower brackets) and is used as a selector to route either formulation (spray) or flushing solution (flush) from their respective tanks to the nozzles. This is done by placing the "MODE"...
  • Page 28 FLUSHING SYSTEM The system must be flushed after each use to protect the equipment from the corrosive materials in the formulation. CAUTION Never handle any parts that come in contact with formulation until the unit has been thoroughly flush with isopropyl alcohol or other recommended flushing agent.

  • Page 29: Formulation Filter

    FORMULATION FILTER The system is equipped with an in line low profile filter located at the formulation tank standpipe. This filter is to prevent any foreign matter from entering the 3-way solenoid valve and the nozzle system. Located inside the filter housing is a fine mesh stainless steel screen and an Atlas gasket seal.

  • Page 30: Blower Filter

    FILTER - SILENCER (Rotary Blower) General: The air blower filter - silencer is mounted on the air blower. Dirt and other foreign particles are filtered from the incoming air by means of the reusable stainless element. The design is such that it partially silences the air also. Note: DO NOT run the machine without this filter silencer assembly, as this would cause serious damage to the blower unit.

  • Page 31: Nozzles

    ULV NOZZLE ASSEMBLY The design of the ULV Nozzle is such that it should require little maintenance if the machine is properly flushed after each use. However, if it becomes necessary to clean the entire Nozzle Assembly, refer to steps 1-7. To inspect the inside of the Nozzle it is not necessary to remove the entire Nozzle Assembly from the machine.
  • Page 32 IMPORTANT If for any reason it becomes necessary to have to remove the spray tube from the nozzle cone, care must be taken to hold dimension “A” when reassembling. Dimension “A” is the distance from the end of the spray tube to the front face of the nozzle cone. Be careful not to damage the output end of the spray tube when disassembling.

  • Page 33: 3-Way Solenoid Valve

    3- WAY SOLENOID VALVE ASSEMBLY (INSTRUCTIONS FOR REBUILDING AND CLEANING) Using a screwdriver, snap off the retaining clip which secures the coil assembly. Remove the retaining clip, the nameplate spacer and the coil housing. Slide the coil off the valve body, and using a spanner nut (P/N 62650-15), remove the core housing for cleaning or rebuilding.

  • Page 34: Hi-Flex Coupling Installation Instructions

    HI-FLEX COUPLING INSTALLATION INSTRUCTIONS FLANGE AND BUSHING INSTALLATION Make sure the bore and tapered cone surface of the bushing and flanges are free of all foreign substances such a paint or dirt. 1. Place *QD bushing on the shaft over the key with flange end first. The end of bushing should be flush with the end of the shaft for best results.
  • Page 35 Bolts of *QD Bushing: 1/4-20 x 1-1/4 , grade 5. Bolts of Flange Assembly: 5/16-18 Socket Head Cap, equivalent to grade 8. The second *QD bushing is placed on the other shaft as described on step 1 and the second flange assembly is slipped over the bushing and assembled to the distance of 1 -1/8"...
  • Page 36 INSTALLATION OF FLEXIBLE ELEMENT 5. You may loosen the flange assembly screws as much as possible without disassembly of cover or you may remove the screws completely thus disassembling the cover. In either case wrap the flexible element around the flange assembling. Make sure the beads of the element are fully worked down upon the seats of covers as shown in the detail on the right drawing.

  • Page 37: Storage And Shipment

    STORAGE & SHIPMENT PREPARING THE BLOWER FOR STORAGE In preparing the blower for storage, the inner workings of the blower must be coated with a rust inhibiting oil. This is done by removing the air filter/silencer by turning it counterclockwise (CCW). After the filter/silencer is removed, access to the inner workings is possible.
  • Page 38 PREPARING THE BATTERY FOR STORAGE Disconnect positive (+) and negative (-) battery cables and wrap cable ends with electrical tape. Remove battery and store in a cool dry area. CAUTION WHEN DISCONNECTING OF THE BATTERY IS REQUIRED, REMOTE NEGATIVE (-) CABLE FIRST.
  • Page 40 MAXI-PRO 2D PARTS LIST ITEM DESCRIPTION 63268 TIE DOWN A.Y. 64004-1 FORMULATION TANK AY 62875-2 STRAP, TANK AY. 63860 TANK AY., FUEL 12.2 GAL. 79110-1 LABEL, LOGO (BLUE) 64894-1 PUMP AY. 62843 BATTERY RETAINER 62845 ROD, BATTERY RETAINER 62844 BATTERY STOP 62595 BATTERY 63382...
  • Page 41 ENGINE ASSEMBLY P/N:62799-10 ITEM QUANTITY PART NUMBER ITEM DESCRIPTION 62799 ENGINE, 18 HP, VANGUARD 190254 NUT, 10-24 LOCK HEX 64016 HOURMETER / TACHOMETER 85685 CONNECTOR 3M 63285-1 CLAMP, CABLE 5/8 49078 HARNESS, ADAPTER (B&S) 63186 BOLT, M8-1.25 x 16, HEX 138485 WASHER, LOCK, 5/16, EXT 120393...

  • Page 42: Blower Assembly

    BLOWER ASSEMBLY P/N:63461-2 ITEM QUANTITY PART NUMBER ITEM DESCRIPTION 62809 BLOWER, ROOT 5.45 62871 CUTPUT FLANGE AY 62823 ELBOW, INPUT 62824 NIPPLE 2.5 NPT. X 3.5 62805 LOCKING RING 62851 FILTER SILENCER 63460-6 BUSHING, 7/8” BORE, 5H 63458-1 FLANGE AY 62877 ANTI-TURN WELD ASSEMBLY 120388...

  • Page 43: Boom Assembly

    BOOM ASSEMBLY, MAXI-PRO 2D (P/N: 64905)
  • Page 44 BOOM AY., MAXI-PRO 2D PARTS LIST(P/N: 64905) ITEM QUANTITY PART NUMBER ITEM DESCRIPTION 64877 TEE ASSEMBLY 62890-2 3-WAY VALVE AY. 189772 SCREW, 10-32 X 3/8 138479 WASHER #10, EXTO 63019 CLAMP, “V” INSERT 64630 NOZZLE AY. 64879 FITTING, GREASE 62550-1 NUT, STEEL GRIP, 1/4T 62555-1 UNION ELBOW, 1/4T...

  • Page 45: Ulv Nozzle Assembly

    ULV NOZZLE ASSEMBLY P/N: 64630-1 ITEM QUANTITY PART NUMBER ITEM DESCRIPTION 64650 TUBE, NOZZLE SPRAY 64647 BODY, NOZZLE 10100-153 O’RING, 3.693 O.D. 64649 DISC, NOZZLE, MACHINED 64643 SCREW, #10-24 X 3/8, SST 64642 SCREW, #6-32 X 3/8, SST 64651 FIN/NOZZLE CONE AY. 422987 NUT, .250, STL GRIP...

  • Page 46: Flexible Coupling Assembly

    FLEXIBLE COUPLING P/N: 67087-3 ITEM QUANTITY PART NUMBER ITEM DESCRIPTION 62549 KEY, 1/4 X 1.75 64360-7 BUSHING, TYPE SH, 1” 67087 FLANGE AY., SH70 63460-6 BUSHING, TYP SH., .875”...
  • Page 47 TANK ASSEMBLY, GASOLINE 12.2 P/N 63860 ITEM QUANTITY PART NUMBER ITEM DESCRIPTION 64088-1 TANK, 12.2 GAL., MACHINED 62578-4 CAP WITH GAUGE 85520 LABEL, GASOLINE 62563-5 STANDPIPE, SSTU, .25 10105 CONNECTOR, STANDPIPE 114628 SLEEVE, 1/4 T 145463 NUT, 1/4 T...

  • Page 48: Formulation Tank Assembly

    FORMULATION TANK ASSEMBLY WITH FILTER P/N 64004-1 FORMULATION TANK ASSEMBLY WITH FILTER ITEM QUANTITY PART NUMBER ITEM DESCRIPTION 62574 FORMULATION STANDPIPE AY 62545 FORMULATION STANDPIPE 62550-3 NUT, .375 STL GRIP 62573-2 CONNECTOR, MALE MOD. 63094 LABEL, FORMULATION 64077 CAP AY, MALE FILL 2” 64002 TANK, 15 GAL NAT POLY 64772...

  • Page 49: Flush Tank Assembly

    FLUSH TANK ASSEMBLY (1 GALLON), P/N: 63337-1 ITEM QUANTITY PART NUMBER ITEM DESCRIPTION 63302-6 TANK, 1 GAL. (MACHINED) 62592 LABEL, FLUSH 62553-1 CONNECTOR, UNION, 1/4 T 62550-1 NUT, .25, STEEL GRIP 114628 SLEEVE, 1/4 T 145463 NUT, 1/4 T 10105 CONNECTOR, STANDPIPE 53131 WASHER, FLAT...

  • Page 51: Idleback Kit

    IDLEBACK KIT, P/N: 63875 ITEM QUANTITY PART NUMBER ITEM DESCRIPTION 120854 BOLT HEX 1/4-20 X 5/8” 120392 WASHER, FLAT 1/4 REG 121753 WASHER, LOCK 1/4 EXTO 134551 NUT, HEX 1/4-20 63850 SOLENOID, 12V DC 62693-140 WIRE ASSEMBLY, BLACK 20247 TIE, CABLE 63849 ENCLOSURE, RELAY 63874...
  • Page 52 Dyna-Fog Offers a Complete Assortment of Sprayers and Foggers PULSE-JET POWERED THERMAL FOGGERS: From 0-120 GPH (0-453 LPH) output. Our complete line include different models like the Superhawk, Golden Eagle, Trailblazer, Falcon, Patriot, Blackhawk, Mister III, SilverCloud and Model 1200. Portable or Truck mounted machines. Different models are available for Oil base or Water base formulations.
