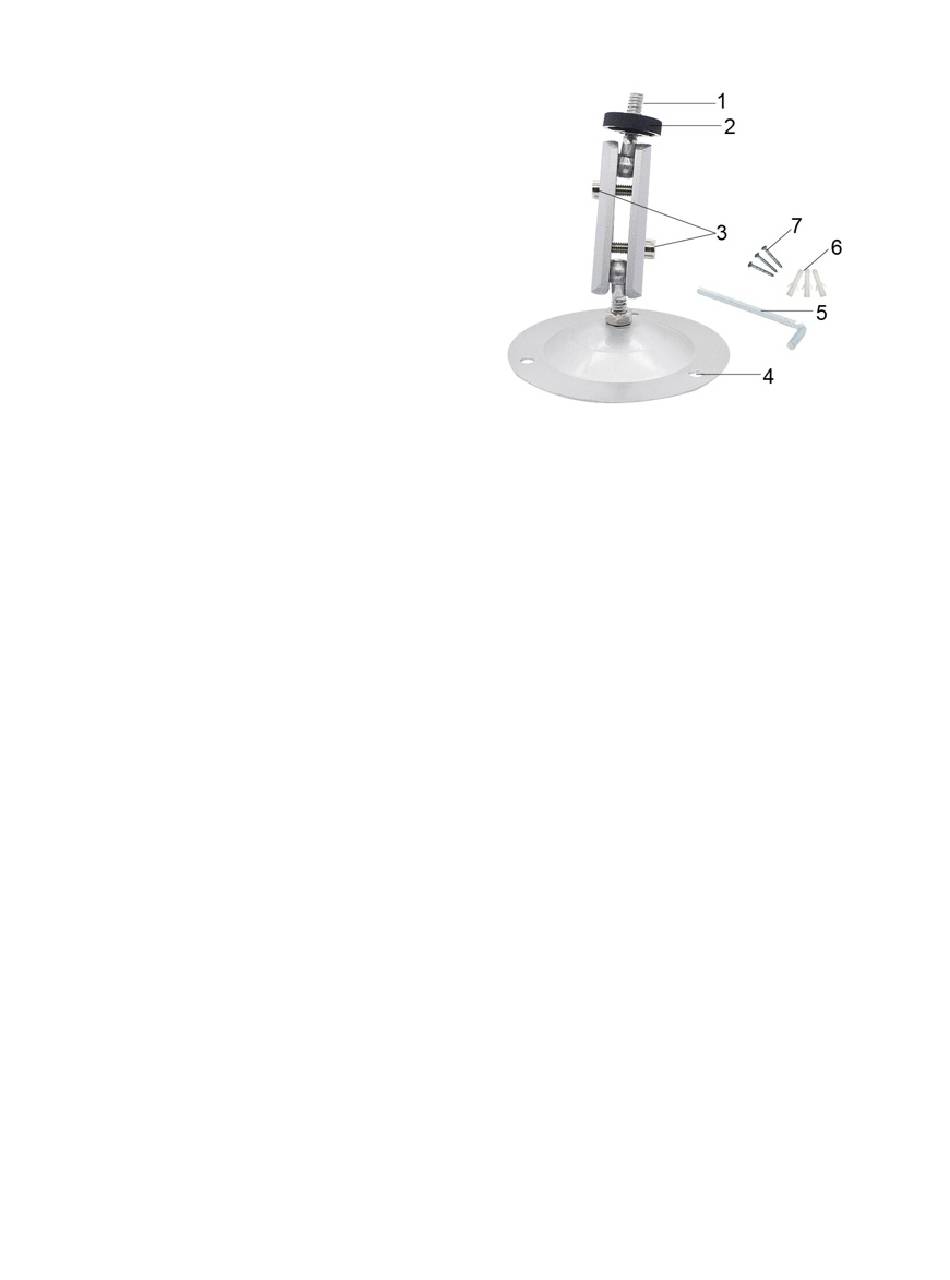

Components
1. Tripod screw
2. Lock nut
3. Pivot bolts
4. Drill holes
5. Hexagonal screw
6. Wall plugs
7. Screws

Mounting the wall bracket

Required tools
■ Drill
■ 6 mm masonry/concrete drill bit
■ Phillips head screwdriver
CAUTION
► Ensure that there are no electric lines, water or heating
pipes installed at the proposed drilling location.
► The supplied wall plugs are only suitable for mounting on
concrete and stone. Before starting the installation, please
check your installation location carefully for its suitability for
the plugs.
The assembly material used must be suitable for the
respective location. If in doubt, consult a professional.
