User Manual

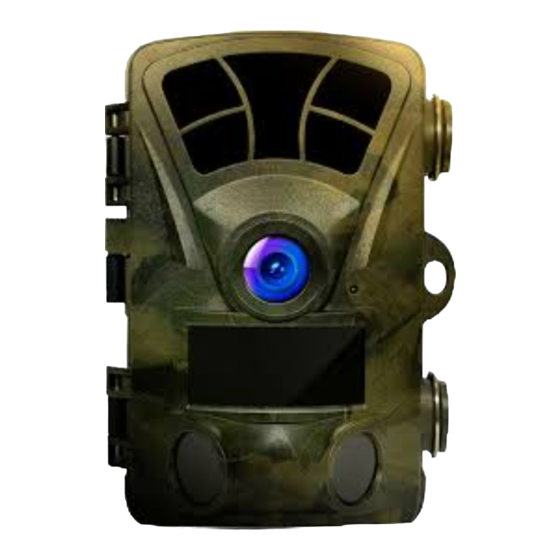

H2 Trail Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rexing H2

Summary of Contents for Rexing H2

  • Page 1 User Manual H2 Trail Camera...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Introduction HANDLING THE CAMERA Camera Overview Basic Operation Installation Camera Operation Viewing/Deleting Photos/Videos Wi-Fi Connect TROUBLESHOOTING Troubleshooting/FAQ Camera Specifications CUSTOMER PROTECTION Customer Service Warranty and Disclaimers...

  • Page 4: Introduction

    Introduction With its highly sensitive 120° Passive Infra-Red (PIR) sensor, the camera detects the sudden change in ambient temperature caused by moving game in a region of interest (ROI), triggers to take pictures/videos, so that you won’t miss anything walking in front of your camera.
  • Page 5 Introduction Features • Programmable 3, 5, 8, 12, or 16 Megapixel • Serial Number enables you to mark locations in high-quality resolution. the photos. This helps multi-camera users identify the location when reviewing the • Infrared night vision LEDs for flash range as images.
  • Page 6 Operating the Camera...

  • Page 7: Camera Overview

    Camera Overview 11 12 13 UP Button DOWN Button Infrared LEDs RIGHT Button Memory Card Slot Lens SHOT Button AV Port Front Motion Sensor OK Button USB Port Side Motion Sensor LEFT Button Display Screen MENU Button TEST REPLAY Button...

  • Page 8: Basic Operation

    Basic Operations Install batteries Insert a Micro SD Memory Card Switch to TEST Mode Press MENU to enter Settings...
  • Page 9 Basic Operations Format the Memory Card Reset to Factory Setting Settings Settings WIFI SSID WIFI Password WIFI Password Beep sound Beep sound Format memory card Format memory card Serial NO. Serial NO. Reset settings Reset settings Version Back Select Back Select MENU MENU...

  • Page 10: Installation

    Installation Power Supply Inserting the SD Card Batteries Installation The camera uses a Micro SD (Secure Digital) memory card to save photos (in jpg format) and/ or videos (in .AVI format). SD and SDHC (High Open the camera by unlocking the latch firstly. Capacity) cards up to a maximum 32GB capacity The battery compartment is the right part of the are supported.

  • Page 11: Camera Operation

    Camera Operation Mode Switch Change Setting in TEST Mode There are three basic operational modes: • OFF mode: Power switch in the OFF position The main purpose of the TEST mode is to allow (LCD screen is off). you to change the settings of the camera’s parameters so that your trail camera operates •...
  • Page 12 Camera Operation Audio Recording Photo Resolution (1-2 Minutes) Set resolution for still photos. We recommend the resolution 8MP. You can record sound while recording a video. Options: Shot Lag 1MP - 1280x960 3MP - 2048x1536 5MP - 2592x1944 Set the time period that the camera should wait 8MP - 3264x2448 before reacting to subsequent activation of the 12MP - 4000x3000...
  • Page 13 Camera Operation Settings Settings Set time lapse target recording time Hr: Min: Sec Start: Stop: 00 00 00 Hr: Min Hr: Min Notification: Motion 00 00 00 00 sensor deactivated Back Select Back Select MENU MENU Target Recording Time Time Lapse Select "On"...
  • Page 14 Camera Operation Languages Password Protection Here you can set English, German, Finnish, Select ON if you want to use a password to Swedish, Danish, French, Italian, Dutch, Spanish, protect the camera from unwanted access, You Portuguese, Japanese, or Chinese as the menu can set a 4-digit combination.
  • Page 15 Camera Operation Reset setting The motion display only lights up when the operating mode selector switch is in the SET position and one of the motion sensors has Select Yes and press OK to restore all detected movement. During normal operation, parameters to the original factory default settings.

  • Page 16: Viewing/Deleting Photos/Videos

    Viewing/Deleting Photos/Videos Reviewing Images on the Deleting Photos Camera LCD or Videos • Put the power switch in TEST position. • Put the power switch in TEST position. • Press the REPLAY key to enter image review • Press the REPLAY key to enter image review mode.
  • Page 17 Viewing/Deleting Photos/Videos Settings Write-protect current files Write-protect all files Unlock current file Unlock all files Back Select MENU Write Protection This function can be used to protect individual • Select “Unlock current to remove the recordings or all saved recordings from accidental write protection for the currently selected deletion.
  • Page 18 Viewing/Deleting Photos/Videos Reviewing images Reviewing Recordings on Directly from the an External Monitor SD Card A TV monitor can also be used to play back pictures (or videos) from the device, connect a TV This is the most popular method of viewing to the camera using the supplied cable.

  • Page 19: Wi-Fi Connect

    Wi-Fi Connect Connect to Wi-Fi Step 1. Download and install the GCamPro app 11:15 by scanning the QR code on the right, then turn GcamPro on the Bluetooth and Wi-Fi functions on the mobile phone; Step 2. Switch the power button of camera from "OFF"...
  • Page 20 GCamPro App Memory Card Click the TF card button; the user will see the photo and video files stored in the TF card. Click 11:15 the icon EDIT on the top right corner. You can GcamPro then choose the pictures or videos to download, delete or share the files, and you can also select all.

  • Page 21: Troubleshooting

    Trouble Shooting...

  • Page 22: Troubleshooting/Faq

    Troubleshooting/FAQ Photos did not capture Camera won’t take any subjects of interest images These are the result of placing the camera in an 1. Please make sure that the SD card is not full. If environment where there is motion associated the card is full,the camera will stop taking with tree branches creating motion or an area images.
  • Page 23 Troubleshooting/FAQ Still Photo and/or Video 4. Daytime photos or videos appear too bright Quality Problems Make sure that the camera is not aimed at the 1. Night photos or videos appear sun or other light sources during the day. too dark 5.
  • Page 24 Troubleshooting/FAQ Date/Time Stamp not Camera won't retain appearing on images settings and doesn't flash Make sure that the Time Stamp parameter is set to ‘On’. Make sure that you have been saving the changes to any parameter settings that you made while in PIR Sensor LED Flashes/ Setup mode, by pressing OK after changing the setting.

  • Page 25: Camera Specifications

    Camera Specifications IMAGE SENSOR 8MP CMOS sensor 1MP - 1280x960; 3MP - 2048x1536; 5MP - 2592x1944; 8MP - 3264x2448; 12MP - 4000x3000; 16MP - 4608x3456; PHOTO RESOLUTION 20MP - 5200x3900; 32MP - 6480x4860 3840x2160/10fps; 2688x1520/20fps; 1920x1080/30fps VIDEO RESOLUTION 1280x720/60fps; 1280x720/30fps; 720x480/30fps; 640x480/30fpss;...
  • Page 26 Camera Specifications DETECTION ANGLE OF 120° SENSORS PIR SENSITIVITY High/Normal/Low TEMPERATURE COMPENSATION PREP PIR SENSING ANGLE On/Off;120° TRIGGERING TIME 0.5 Second(When using the 4G.5D card); 0.2 Second TRIGGER INTERVAL 5sec. - 60min, Programmable SHOOTING NUMBERS EFFECTIVENESS Daytime: 1.5m-infinitive. Night time: 1.5m-20m VIDEO LENGTH 3sec-2Minutes.;...
  • Page 27 Camera Specifications TIME STAMP On/Off; include serial no., temperature and moon phase TIME LAPSE On/Off; Time-Lapse Programmable PERIODIC SHOT Time Laps 1 Second ~ 24 Hours 4-Digit Numbers (Default password 0000) PSASSWORD BUILD-IN MICROPHONE BUILD IN SPEAKER AUTO-DISTINGUISH Color images in daytime/black & white night images IMAGES In 2 min AUTOMATIC SCREEN SAVER...
  • Page 28 Camera Specifications 8 x AA external 6V power supply, at least 2A POWER SUPPLY 6V /1.5A POWER ADAPTER More than 30K photos in daytime, and more than 12K BATTERY LIFE photos in night STANDBY TIME Approx.12 months SPRAY-WATER PROTECTED IP66 -4°F to 140°F STORAGE TEMPERATURE DIMENSIONS...

  • Page 29: Customer Protection

    Customer Protection...

  • Page 30: Customer Service

    Customer Service FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 31: Warranty And Disclaimers

    We reserve the right to alter the features and handling and installation. In the event warranty contents of this publication,hardware or software service is needed, please contact Rexing at without obligation or advance notice. care@rexingusa.com. Warranty does not extend to any accessories used with the camera.
  • Page 32 Safety Guide Warning NOTE This device complies with Part 15 of the FCC This device and its antenna(s) must not be co- Rules. Operation is subject to the following two located or operation in conjunction with any other conditions: (1) this device may not cause antenna or transmitter.
  • Page 33 Using an incompatible charger can Warning cause serious personal injury or damage to your device. • Rexing cannot be responsible for the user’s Failure to comply with safety warnings and safety when using accessories or supplies regulations can result in serious injury or that are not approved by Rexing.
  • Page 34 Rexing Service Center. Failure to do so accessories is not. may result in fire or explosion.
  • Page 35 “THIRD PARTY CONTENT AND SERVICES ARE PROVIDED “AS IS.” REXING DOES NOT WARRANT Waste Electrical & Electronic Equipment CONTENT OR SERVICES SO PROVIDED, EITHER EXPRESSLY OR IMPLIED, FOR ANY PURPOSE.
  • Page 36 Third party services may be terminated or interrupted at any time, and Rexing makes no representation or warranty that any content or service will remain available for any period of time. Content and services are transmitted by third parties by means of networks and transmission facilities over which Rexing has no control.
  • Page 38 FCC ID: 2AWNU-H88XWIFI This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
