H2600 SERIES NB-IOT/4G-GPRS/LoRa Instruction Manual Contents 1. Product introduction ------------------------------------------------------------------1 2.Parameters customized orders needed -------------------------------------------4 3.Basic steps and precautions when using -----------------------------------------4 4.How to use cloud platform and cost introduction -----------------------------7 5.Product warranty and after-sales policy ----------------------------------------15... -
Page 3: Product Introduction
1. Product introduction 1.1 Product type and model The IOT pressure and temperature level monitoring terminal (hereinafter referred to as the IOT monitoring terminal) is a smart instrument with low power consumption and wireless communication power consumption. Based on the mature NB-IOT (Narrow Band Internet of Things) network, Cloud platform and mobile client wireless transmission. - Page 4 Configuration USB configuration, server remote configuration method Wake mode Button, timing Upload information Pressure (temperature/level), battery, signal, card number, etc. Operating -30℃~ 70℃ (the medium does not crystallize) Temperature measurement 0.5% F.S accuracy Temperature effect 0.015%F.S/℃ Waterproof version IP66; Protection class Explosion-proof version: IP68, explosion-proof class( Ex ia IIC T6 Ga 1.3.

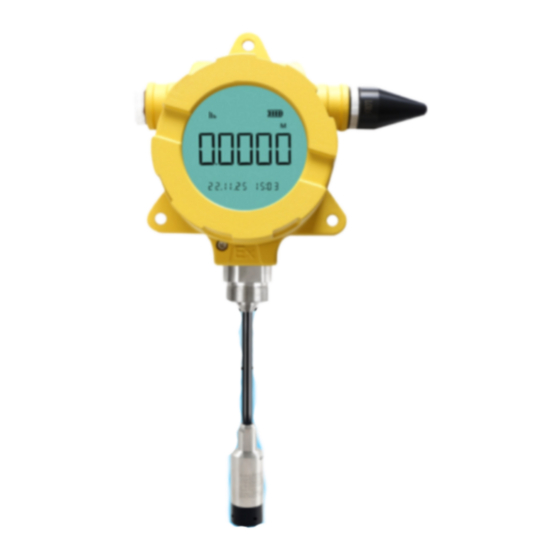

- Page 5 H2601, H2602(Explosion-proof version) H2603(Explosion-proof version)
-
Page 6: Parameters Customized Orders Needed
2. Parameters customized orders needed 2.1.Before ordering, the following parameters are needed： Range customized Wireless Type customized Network operating frequency customized (LORA terminal only) Process Port (connection) customized Temperature Probe Length customized (Temperature terminal only) Level Cable Length (level terminal only) customized 3.Basic steps and precautions when using 3.1. - Page 8 3.5. Fifthly, install the equipment directly. If the equipment is installed outdoors, it is recommended to add an instrument box for shielding protection. https://docholykell.oss-us-west-1.aliyuncs.com/Software/TP-Wireless-Assistant-3G-4G/HK-A- (TP assistant download link: V4.26-TP-Software-HOLYKELL.rar...
-
Page 9: How To Use Cloud Platform And Cost Introduction
4.1. Cloud platform login: Cloud platform URL: http://www.holykell-iot.com.Use the account and password provided by HOLYKELL to enter the cloud platform, as shown below: After converted to English interface display, move the mouse to the left to jump out of the navigation... - Page 10 Selection Group...
- Page 11 Save Configuration 4.3. Setting parameter configuration, alarm setting, data analysis and processing 4.3.1. customers can edit each device in the device management module under the navigation bar. On the device editing page, there are product name modification, group adjustment, cloud platform device offline delay time setting, sensor addition, and device installation location information establishment,etc.
- Page 12 FH: the upper limit of pressure or liquid level range; FL: the lower limit of pressure or liquid level range; TH: the upper limit of the temperature range; TL: the lower limit of the temperature range; AT: the interval between sensor data reporting (minimum 3 minutes, maximum 1440 minutes) FT: Floating value alarm;...
- Page 13 4.3.3. Alarm trigger configuration Customers can set high and low alarm values for devices and sensors in the trigger module under the navigation bar. SMS alarm, mail alarm, WeChat alarm and voice alarm are optional (SMS / Voice alarm need to pay the operator fee) 4.3.4.
- Page 15 4.3.5. Customers can use the data download center of the navigation bar to download each device individually or in batches for historical data recording. The file is saved to the local computer in EXCELL format, which is convenient for customers to analyze and make decisions on the historical data of the equipment. Check the data download interface below:...
-
Page 17: Product Warranty And After-Sales Policy
2. Make sure that the plug of the power cord is firmly in contact, and power off the battery before replacing it. Finally, with regard to the cost of using the HOLYKELL cloud platform, the HOLYKELL cloud platform is free for sample testing and small batch system application customers (the number of devices used by a single customer is less than 20 device/sensors).
