4. Connect 1/4-inch OD poly
tubing from an RO unit to the
AG110-004 inlet port. Connect
3/8-inch OD poly tubing to the
outlet port and insert the other
end into a drain pipe using a
suitable drain line adapter. (See
FIG 1-4)
5. Install AG110-004 inside the
countertop unit. Align slide guides
of the housing with the AG110-004
and push the air gap until air gap
windows are aligned. (See FIG 1-5)
6. Install the decorative cover on
top of the housing. (See FIG 1-6)
500 Jefferson Street, Placentia, California 92870 USA • 949-955-3928 • Email: orders@airgap.com

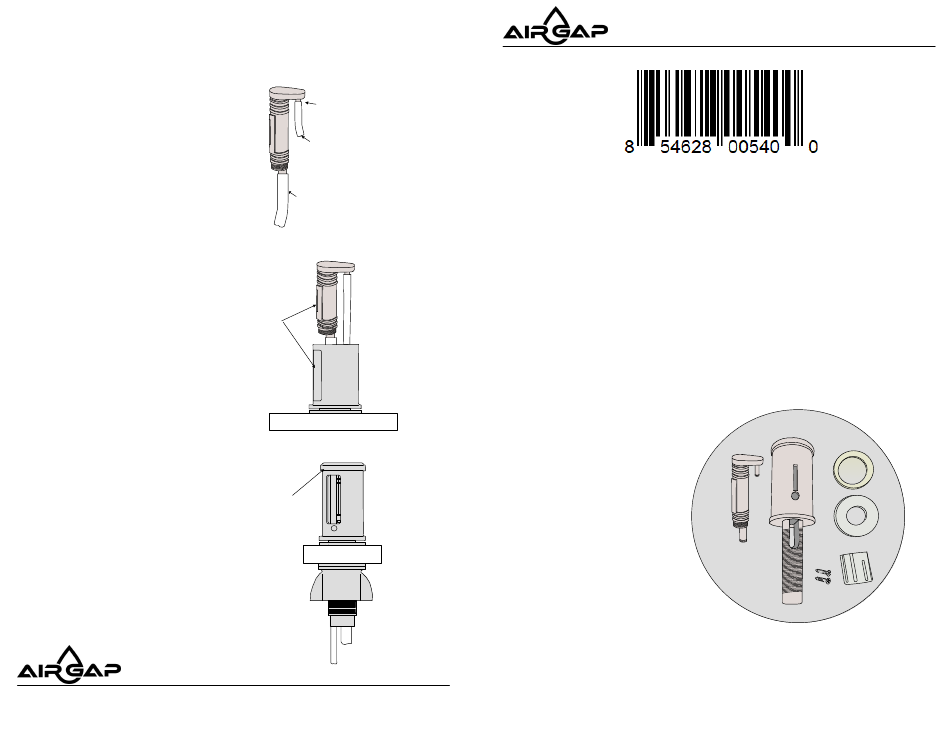

Fig 1-4
