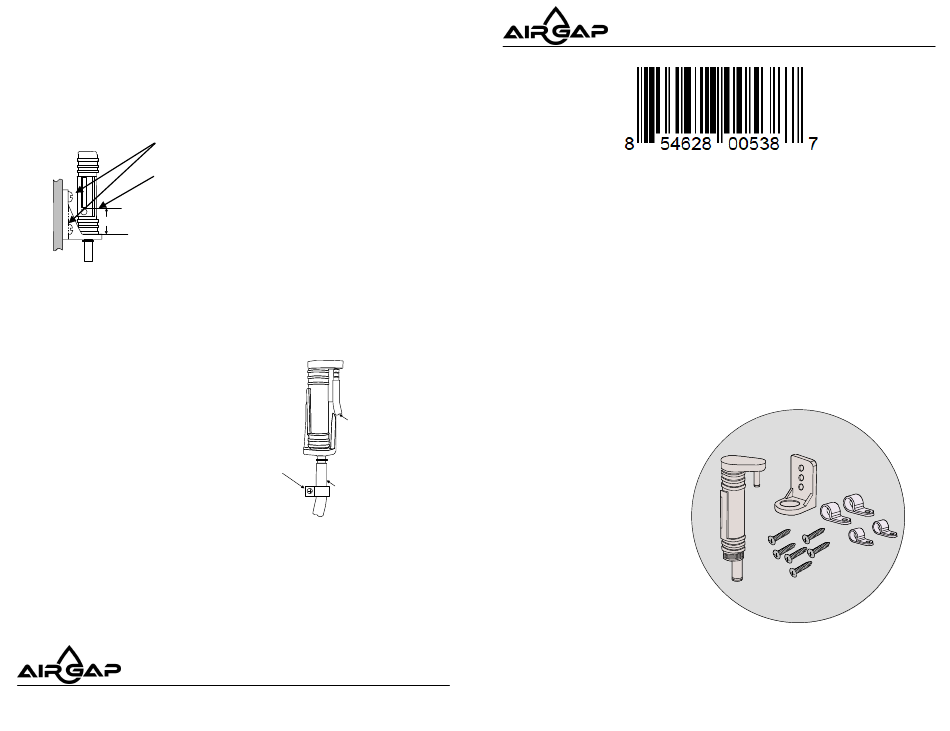

4. The AG110-002 must be installed with the "C/L" line
above the sink's rim, sump, floor drain, floor grate, or
standpipe where the discharge tubing is terminated. The
AG110-002must be installed vertically. Secure
AG110-002 with provided mounting screws (See Fig 1-4).
Mounting Screws
Critical Level (C/L) marking
"C/L"
0.857"-0.900"
Fig 1-4
5. Connect 3/8" OD poly tubing from
your RO unit to AG110-002 inlet port
and 3/8" OD poly tubing from the
AG110-002 outlet port to the drain
pipe. Use provided clamps and
screws to secure tubing. (See FIG
1-5)
Fig 1-5
500 Jefferson Street, Placentia, California 92870 USA • 949-955-3928 • Email: orders@airgap.com
1/4" O.D.
Poly tubing
Clamp
3/8" O.D.
Poly tubing
Copyright AIR GAP INTERNATIONAL
Model:
AG110-002
REVERSE OSMOSIS
AIR GAP
Old Part Number:
GAP-A-RO, KIT S-B
Doc.#400-0807-001
Placentia, California
