1

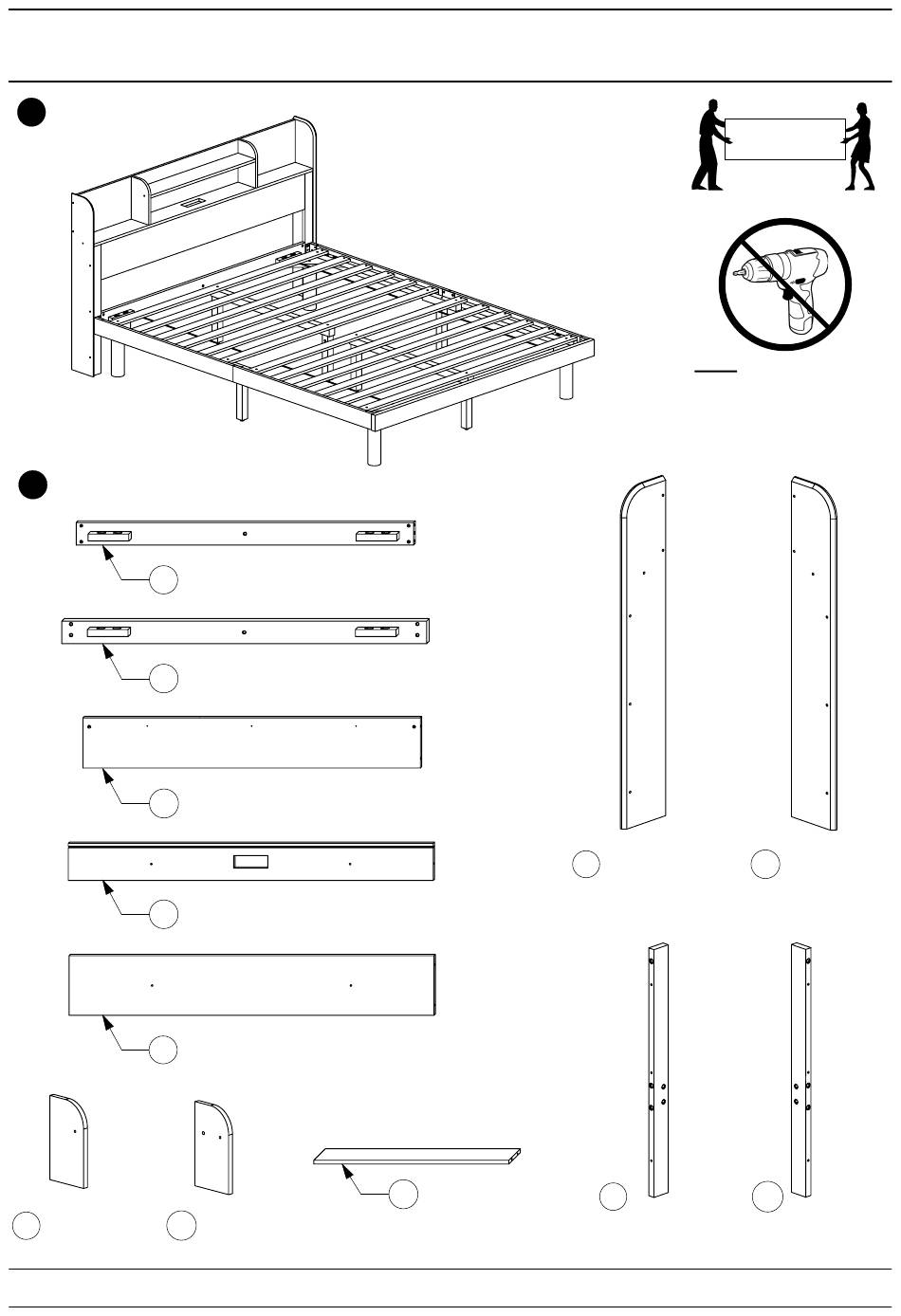

Assembled View
2
Parts List
A
Headboard Support x 1
B
Footboard Panel x 1
C
Front Panel x 1
D
Bottom Panel x 1
E
Back Panel x 1
Divider x 1
F
G
(Left Hand)
0080 S Queen Bed
Assembly Instructions
Divider x 1
(Right Hand)
H
Shelf x 1
Use 2 People
Note: Do not assemble
using power tools.
This can cause the bolts
to be overtightened
Headboard
J
Side Panel
(Left Hand)
x 1
L
Headboard Post
Headboard Post
(Left Hand) x 1
(Right Hand) x 1
WI-0421
Headboard
K
Side Panel
(Right Hand)
x 1
M
Page 1 of 11
Advertisement
Related Manuals for Baxton Studio Harper 0080 S
Summary of Contents for Baxton Studio Harper 0080 S
- Page 1 0080 S Queen Bed Assembly Instructions WI-0421 Assembled View Use 2 People Note: Do not assemble using power tools. This can cause the bolts to be overtightened Parts List Headboard Support x 1 Footboard Panel x 1 Front Panel x 1 Headboard Headboard Side Panel...
-
Page 2: Part List
0080 S Queen Bed Assembly Instructions WI-0421 Part List Support Panel Support Bar Side Rail (Left Hand) x 2 Long Support x 2 Side Rail (Right Hand) x 2 Support Post x 4 Leg x 6 Set of Bed Slats x 2 Hardware List M4 Allen Key M5 Allen Key... - Page 3 0080 S Queen Bed Assembly Instructions WI-0421 Fit the Adjustable foot to the Fit the Support Bar (S) to the bottom of the Support Leg (Q). Support Leg (Q). x2 x6 x2 x2 Fit the Divider (F & G) to the Shelf (H). Page 3 of 11...
- Page 4 0080 S Queen Bed Assembly Instructions WI-0421 Fix the 'L' Bracket to the Front Panel (C). Assemble the Headboard Post (L & M) to the Front Panel (C) and Headboard Support (A). Back Page 4 of 11...
- Page 5 0080 S Queen Bed Assembly Instructions WI-0421 Assembled the Headboard Side Panel (J & K) Assembled the Headboard Side Panel (J & K) LOOSELY to the Bottom Panel (D) & Back Panel (E). LOOSELY to the Bottom Panel (D) & Back Panel (E). Do not tighten It is important that these screws are It is important that these screws are...
- Page 6 0080 S Queen Bed Assembly Instructions WI-0421 Tighten all the Screws. Front Assembled Shelf Fit the assembled shelf to the Back Panel (E) and Bottom Panel (D) as shown. Front Page 6 of 11...
- Page 7 0080 S Queen Bed Assembly Instructions WI-0421 Fit the screw to the bottom of the Bottom Panel (D). Back Fit the Plug into the cut-out holes. Front Page 7 of 11...
- Page 8 0080 S Queen Bed Assembly Instructions WI-0421 Fit the Post (P) to the Support Panel (R). Fit the Metal Plate to the Side Rail (N & O). x2 x2 Assemble the Side Rail (N & O) to the Support Panel (R). x2 x2 Page 8 of 11...
- Page 9 0080 S Queen Bed Assembly Instructions WI-0421 Assemble the Side Rail (N & O) to the Headboard & Footboard. Headboard Footboard Bolt the Support Panel (R) to the Headboard & Footboard. Headboard Footboard Page 9 of 11...
- Page 10 0080 S Queen Bed Assembly Instructions WI-0421 Fit the Slats (U) to the Long Support (T) & Support Leg (Q). Bolt the Bed Slats (U) to the Side Rail (N & O). Headboard Footboard Page 10 of 11...
- Page 11 0080 S Queen Bed Assembly Instructions WI-0421 Screw the Bed Slats (U) to the Side Rail (N & O). Headboard Footboard Lastly, fit the Support Bar (S) in place. Headboard Footboard Page 11 of 11...
