USER MANUAL /
UPUTE ZA UPORABU
REFRIGERATOR / HLADNJAK
PVHS-T1000NB
Importer for EU / Uvoznik za EU: Peve d.d., Savska cesta 84,
10360 Sesvete, Hrvatska; email: info@pevex.hr

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PVHS-T1000NB and is the answer not in the manual?

Questions and answers

Summary of Contents for TECro PVHS-T1000NB

  • Page 1 USER MANUAL / UPUTE ZA UPORABU REFRIGERATOR / HLADNJAK PVHS-T1000NB Importer for EU / Uvoznik za EU: Peve d.d., Savska cesta 84, 10360 Sesvete, Hrvatska; email: info@pevex.hr...
  • Page 2: Table Of Contents

    USER MANUAL ENGLISH Content 1. Safety Information Page 1~7 2. Product description Page 8 3. Installation Page 9~10 Page 11~14 4. Reverse Door 5. Daily use Page 15~19 6. Troubleshooting Page 20~21 Environment Protection Page 22~23...
  • Page 3: Safety Information

    SAFETY INFORMATIONS! Before first use In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
  • Page 4 Children should be supervised to ensure that they do not play with the appliance. Leaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric...
  • Page 5 WARNING! Do not touch the light bulb if it has been on for a long period of the time could be very hot. WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING! Do not locate multiple portable socket- outlets or portable power suppliers at the rear of the appliance.
  • Page 6 - bed and breakfast type of environments - catering and similar non-retail applications WARNING! Any electrical componentsplug, power cord, compressor and etc.must be replaced by a certified service agent or qualified service personnel. WARNING! The light bulb supplied with this appliance is a “special use lamp bulb”...
  • Page 7 Daily use Do not put hot on the plastic parts in the appliance. Do not place food products directly against the rear wall Frozen food must not be refrozen once it has been thawed out. Store pre packed frozen food in accordance with frozen food manufacture , s instructions -Appliance , manufactures...
  • Page 8 frozen food, storing or making ice-cream and making ice cubes. One-, two- and three - star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food) If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.
  • Page 9 Adequate air circulation should be around the appliance, lacking this leads to overheating. achieve sufficient ventilation follow the instructions relevant to installation. -Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
  • Page 10: Product Description

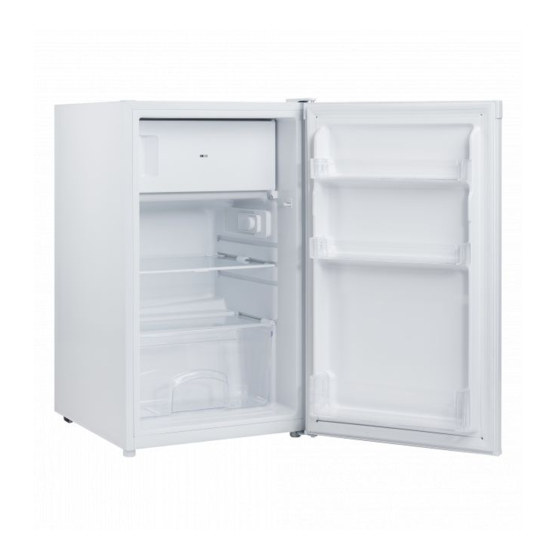

    PRODUCT DESCRIPTION Freezer Thermostat and light Glass Shelves Door balconies Crisper cover Crisper drawer Leveling feet This illustration is only for hinting, the detail please check your appliance.
  • Page 11: Installation

    INSTALLATION Space Requirement Keep enough space of door open. G 855 Levelling the unit To do this adjust the two levelling feet at front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. Lengthen Shorten...
  • Page 12 Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance: for refrigerating appliances with climate class: extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C;...
  • Page 14 Unscrew bottom hinge of freezer door. Then remove the door and place it on a soft pad to avoid scratch. Move door holder from left side to right side. Move hinge hole cover from left side to right side. Rotate freezer door and place hinge side at left side. And then fix the door by holder.
  • Page 15 8. Unscrew bottom hinge. Then remove the adjustable feet from both side. 9. Unscrew and remove the bottom hinge pin, turn the bracket over and replace it. 8. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet. 10.
  • Page 16 11. Put the top cover and then screw back. 12. Detach the Fridge and the Freezer door gaskets and then attach them after rotating...
  • Page 17: Daily Use

    DAILY USE First use Cleaning the interior Before using the appliance for the first time wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product then dry thoroughly.
  • Page 18 Temperature setting recommendation Temperature Setting Recommendation Freezer Fridge compartment Environment compartment Temperature Summer Set on 2~4 Normal Set on 4 Winter Set on 4~6 Information above give users recommendation of temperature setting. Impact on Food Storage Under Recommended setting, the best storage time of fridge is no more than 3 days. Under Recommended setting, the best storage time of freezer is no more than 1 month.
  • Page 19 Freezing fresh food • The freezer compartment is suitable for freezing fresh food and storing frozen and deep- frozen food for a long time. • Place the fresh food to be frozen in the freezer compartment. • The maximum amount of food that can be frozen in 24 hours is specified on the rating plate. •...
  • Page 20 Helpful hints and tips To help you make the most of the freezing process here are some important hints; • the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate; • the freezing process takes 24 hours. No further food to be frozen should be added during this period; •...
  • Page 21 Clean drain hole To avoid defrost water overflowing into the fridge periodically clean the drain hole at back of fridge compartment. Use a cleaner to clean the hole as showed in right picture. - Do not allow such substances to come into contact the appliance part - Do not use any abrasive cleaners - Remove the food from freezer.
  • Page 22: Troubleshooting

    Troubleshooting Caution! Before troubleshooting disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual. Important! There are some sounds during normal use (compressor refrigerant circulation). Problem Possible cause Solution Temperature regulation Set the knob at other number to switch on the knob is set at number -O...
  • Page 23 The appliance is touching the wall or other objects. Move the appliance slightly. A component e.g. a pipe on the rear of the appliance is touching another part of the If necessary carefully bend the component out of appliance or the wall. the way.
  • Page 24: Environment Protection

    Environment Protection This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance s hall be disposed according to the appliance regulations to obtain from your local authorities.
  • Page 25 recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product. Packaging materials The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it. Disposal of the appliance 1.Disconnect the mains plug from the mains socket.
  • Page 26 UPUTE ZA UPORABU HRVATSKI 1. Sigurnosne informacije Page 1~6 Page 7 2. Opis proizvoda Page 8~9 3. Instal Promjena smjera otvaranja vrata Page 10~12 5. Svakodnevna uporaba Page 13~17 6. Otklanjanje kvarova Page 18-19 Page 20~22...
  • Page 27: Sigurnosne Informacije Page 1~6

    UPOZORENJA I SIGURNOSNE INFORMACIJE Prije prve uporabe Za vašu sigurnost i pravilnu uporabu, prije postavljanja i uporabe savjetima i upozorenjima. < ih osoba...
  • Page 28 nformacije...
  • Page 29 oštećenje <...
  • Page 30  Svakodnevna uporaba...
  • Page 31 12.h 13.Nemojte vaditi i dirati namirnice u zamrzivaču vlažnim mokrim rrukama jer to može izazvati abrazije kože ili ozebline. 14.Postolje, ladice,vrata itd.nemojte koristiti za stajanje ili podupiranje. 15.Jednom odmrznute namirnice ne smiju se ponovno zamrzavati. 16.Nemojte konzumirati sladoled ili kocke leda izravno iz zamrzivača jer to može izazvati ozebline na ustima.
  • Page 32 • < • • • napa Ušteda energije nemojte stavljati topla jela a"...
  • Page 33: Opis Proizvoda

    OPIS PROIZVODA  DZ/s  TERMOSTAT I SIGNALNA LAMPICA POLICE U VRATIMA ^d <>E WK>/ WK<>KW  WZd/E sK / WKsZ PRETINAC ZA sK / WKsZ Napomena: Zbog modificiranja naših proizvoda, V <...
  • Page 34: Instal Page 8~9

    INSTALACIJA VENTILACIJA G 855 < , vrata i magnetna brtva Lengthen Shorten Short...
  • Page 35 Pozicioniranje  ^E  ^d Instalacija < UPOZORENJE! h...
  • Page 36: Promjena Smjera Otvaranja Vrata Page 10~12

    Promjena smjera otvaranja vrata Potreban alat : Odvijač, ravni odvijač, ključ 6mm. - Prilikom promjene smjera otvaranja vrata, uređaj ne smije biti spojen na napajanje. Kabel mora biti odspojen iz utičnice. - Da bi skinuli vrata potrebno je uređaj nagnuti unatrag. Naslonite uređaji na čvrstu površinu kako ne bi klizao tijekom procesa promjene vrata.
  • Page 37 4 Od...
  • Page 38 10 s 11 s sa svih 12 W 13 K...
  • Page 39: Svakodnevna Uporaba Page 13~17

    SVAKODNEVNA UPORABA Prva uporaba s EK E • < • Odjeljak hladnjaka Namirnica • • • • jaja • • e svakodnevne namirnice Police hladnjaka •...
  • Page 40 Odjeljak Odjeljak hladnjaka okoline > Zimska nije više od...
  • Page 41 •  • ^ • E • W ili na sobnoj < <...
  • Page 42 < < • D • W •  • W zamrzavanje •  za zrak • E • ^ • < • W • K • K • E • K • , Savjeti za spremanje • E •  •...
  • Page 43 K>/s E: hZ : hdKD d^<K K>/s E: ,> E: < > adolj K>/s E: <> ^/EK'  DZ/s  kad se 3-5 mm debela naslaga inja, odnosno Nakon vremena, namirnice iz dijelove i za jer njima cijevi rashladnog lonca vode na Zamjena LED lampice Za zamjenu LED lampice kontaktirajte ovlaštenog servisera.
  • Page 44: Otklanjanje Kvarova

    OTKLANJANJE KVAROVA Rješenje • W • Pregorio ili neispravan • h • h privremeno...
  • Page 45 < Ako se kvar pojavi ponov...
  • Page 47 pravil WsX...
