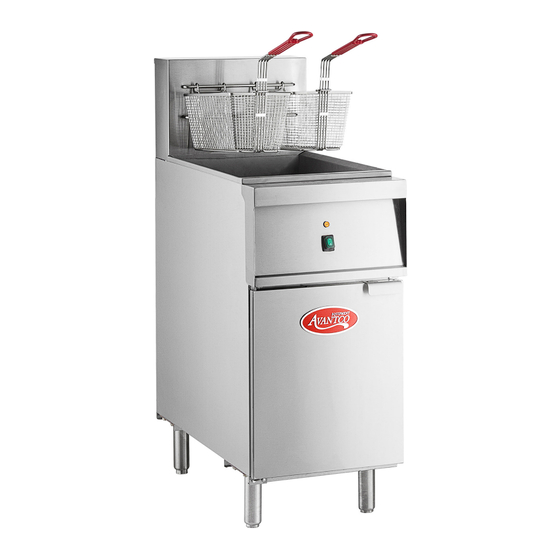

- Page 1 User Manual User Manual Electric Floor Fryers 5005951 Model: 177EF40B, 177EF40C, 177EF40D, 177EF40E 08/2022 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
-
Page 2: General Information
User Manual 1. General Information 1.1 Information about the instruction manual This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 3: Safety Instructions For Use Of The Device
User Manual 2. Safety This section provides an overview of all important safety aspects. In addition every chapter provides precise safety advice for the prevention of dangers which are highlighted by the use of the above mentioned symbols. Furthermore, attention should be paid to all pictograms, markers and labels on the device, which must be kept in a permanent state of legibility. -
Page 4: Transport, Packaging And Storage
User Manual General Information CAUTION Any use going beyond the intended purpose and/or any different use of the device is forbidden and is not considered as conventional. Any claims against the manufacturer or his authorized representative as a consequence of experiencing damages resulting from unconventional use are impossible. -
Page 5: Scope Of Delivery
User Manual 3.3 Storage Keep the package closed until installation and under consideration of the outside indicated positioning-and storage markings. Packages should be stored under consideration of the following: 3.4 Scope of delivery The scope of delivery includes the following parts and assembly units: Baskets*2 Mesh support*1 Drain extension*1... -
Page 6: Circuit Drawings
User Manual Circuit Drawings 1 Phase for Models 177EF40B, 177EF40D www.AvantcoEquipment.com... - Page 7 User Manual 3 Phase for Models 177EF40C, 177EF40E www.AvantcoEquipment.com...
-
Page 8: Parts Diagram
User Manual 4.2 Parts Diagram 12 13 16 17 www.AvantcoEquipment.com... - Page 9 User Manual Unit Description Spec Part Code Rear coaming assy SS430 1.0mm - - - - - Basket hanger SS430 1.5mm - - - - - Top basket hanging rod Nickel coating 70201107219L Bottom basket hanging rod Nickel coating 70201107228L Frame assy - - - - - - - - - -...
-
Page 10: Safety Instructions
User Manual 5. Installation and operation 5.1 Safety instructions WARNING! Risk of electric shock! All wiring connections for this appliance must be made in accordance with the wiring diagram(s) furnished with the appliance. Refer to the wiring diagram(s) affixed to the inside of the appliance door when installing or servicing this equipment. -
Page 11: Operation
User Manual Avoid installation spots with close contact to water. Remove the lid, basket, handle and other accessories from the device. Do not allow grease to accumulate or harden on the frame or body of the fryer. Clean the fryer inside and out with a solution of detergent and hot water daily. - Page 12 User Manual CAUTION! Do not use the device without having frying oil in the oil container. Make sure the oil level is always between „MIN“-and „MAX“-marking of the oil container. WARNING! Danger of fire! When the oil level goes below the minimum marked MIN, there is an increased risk of oil catching fire.
-
Page 13: Cleaning And Maintenance
User Manual Slowly dip the basket into the oil. After frying is finished, carefully lift the basket, hang it on the basket hanger and leave the basket to drip. WARNING! Risk of injury! There is optional fryer frypot lid. The standard product does not ship with lid. -
Page 14: Safety Instructions For Maintenance
User Manual Control panel, surface of the device and power cord should only be wiped off with a soft cloth and a mild cleaning agent. You must not let water enter the switching unit. This may lead to dangerous creeping current and malfunctions of the device. -
Page 15: Waste Disposal
User Manual The previously mentioned trouble cases are just exemplary and to give you orientation. Should these or similar troubles occur, please switch off the device and stop use immediately. Contact qualified technicians or the manufacturer for inspection and repair. 8.
