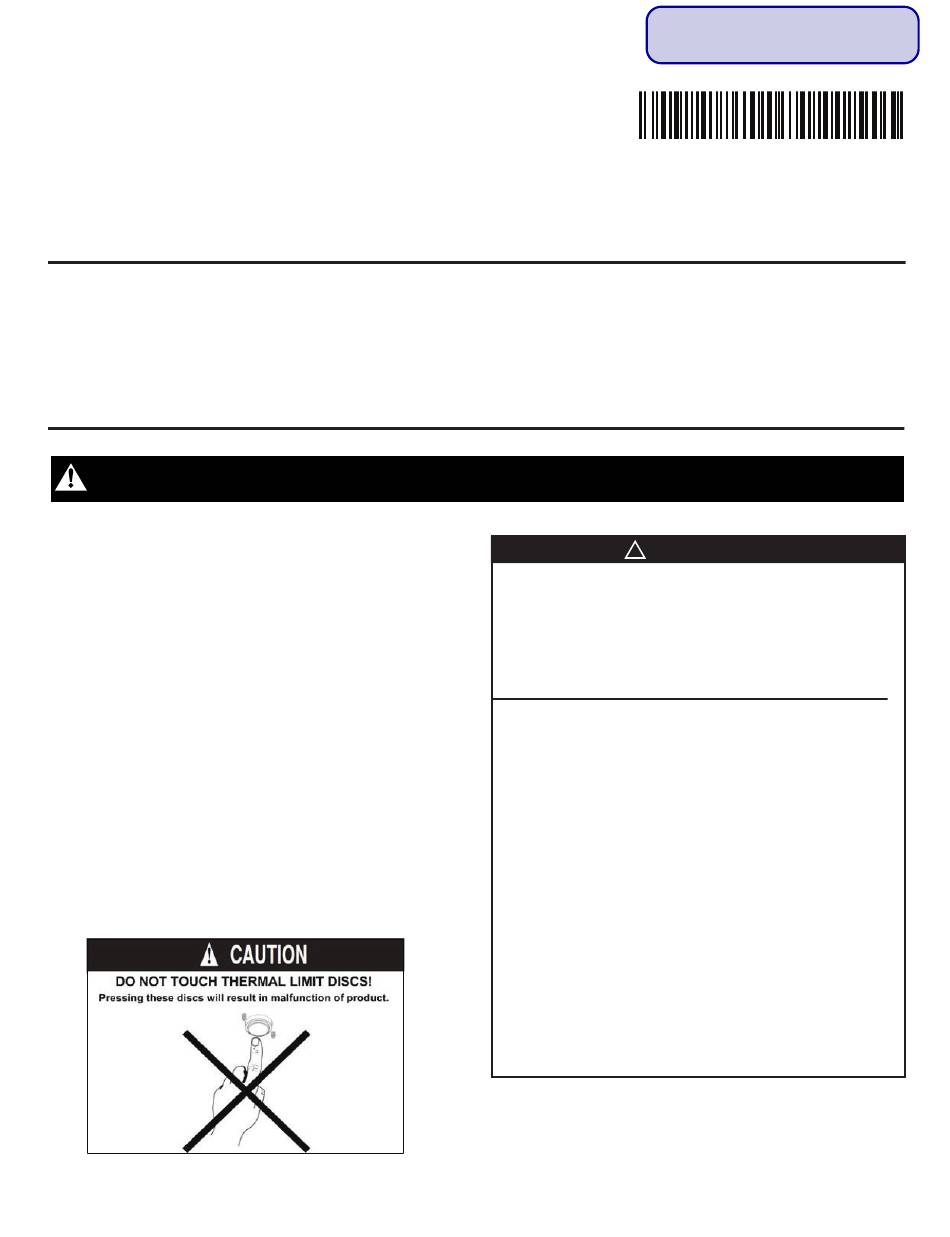

INSTALLER'S
GUIDE
ALL phases of this installation must comply with NATIONAL,
STATE AND LOCAL CODES
Models:
BAYHTR1504BRKC
BAYHTR1515BRKB
BAYHTR1504LUGB
BAYHTR1516BRKA
BAYHTR1505BRKC
BAYHTR1517BRKA
BAYHTR1505LUGB
BAYHTR1519BRKB
BAYHTR1508BRKC
BAYHTR1520BRKB
BAYHTR1508LUGB
BAYHTR1521BRKB
BAYHTR1510BRKC
BAYHTR1522BRKA
BAYHTR1510LUGB
BAYHTR1523BRKA
IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack upon completion of work.
WARNING:
GENERAL
This accessory electric heater is designed to provide power
directly to the unit from the accessory heater's power
supply eliminating the need for additional circuits. The
power and control wiring use a single polarized plug to
connect the heater and the unit. See the Heater Data
table on page 4 for the number of circuits required.
1.
Check the unit heater label to confirm that the selected
Heater is approved for use with this unit in the installed
configuration.
For some heaters, a corresponding
secondary nameplate label is included. Place the label
within the heater data table on the air handler nameplate.
This is shown in Figure 7.
2.
Check the components received for damage. Report
any defects or shortages to the transportation company
immediately.
3.
Be sure the power supply agrees with the listing shown
on heater nameplate.
Page 1 of 20 10/16/2019
© 2019 Trane
MOHS, PLANS EXAMINER
BAYHTR1525BRKA
BAYHTR3510LUGC
BAYHTR3515LUGC
BAYHTR3517LUGA
HAZARDOUS VOLTAGE - DISCONNECT POWER BEFORE SERVICING
REV #1
2405 E AINSWORTH AVE
INSTALL HVAC SYSTEM/PORT OF PASCO
REVIEWED
By Ben Mohs 10:43, Oct 16, 2019
Supplementary
Electric Heaters
for TEM4, TEM6, TEM8 and A4AH4 Air Handlers
!
WARNING
L
THIS PRODUCT CONTAINS FIBERGLASS WOOL INSULA-
TION! FIBERGLASS DUST AND CERAMIC FIBERS ARE BE-
LIEVED BY THE STATE OF CALIFORNIA TO CAUSE CAN-
CER THROUGH INHALATION. GLASSWOOL FIBERS MAY
ALSO CAUSE RESPIRATORY, SKIN, OR EYE IRRITATION.
PRECAUTIONARY MEASURES
• Avoid breathing fiberglass dust
• Use a NIOSH approved dust/mist respirator
• Avoid contact with the skin or eyes. Wear long-
sleeved, loose fitting clothing, gloves, and eye protec-
tion.
• Wash clothes separately from other clothing, rinse
washer thoroughly.
• Operations, such as sawing, blowing, tear-out, and
spraying may generate fiber concentrations requiring
additional respiratory protection. Use the appropriate
NIOSH approved respirator in these situations.
FIRST AID MEASURES
EYE CONTACT: FLUSH EYES WITH WATER TO RE-
MOVE DUST. IF SYMPTOMS PERSIST, SEEK MEDICAL
ATTENTION.
SKIN CONTACT: WASH AFFECTED AREA GENTLY
WITH SOAP AND WARM WATER AFTER HANDLING.
18-HB22D1-14
.
07/19
B19-2396
10/1/2019
Advertisement
Table of Contents
Related Manuals for Trane BAYHTR1504BRKC
Summary of Contents for Trane BAYHTR1504BRKC
- Page 1 MOVE DUST. IF SYMPTOMS PERSIST, SEEK MEDICAL ATTENTION. SKIN CONTACT: WASH AFFECTED AREA GENTLY WITH SOAP AND WARM WATER AFTER HANDLING. Page 1 of 20 10/16/2019 REV #1 © 2019 Trane 07/19 MOHS, PLANS EXAMINER 2405 E AINSWORTH AVE B19-2396 INSTALL HVAC SYSTEM/PORT OF PASCO...
-
Page 2: Installation
INSTALLER'S GUIDE NOTE: Illustrations may vary from the actual unit by cabinet and heater size. INSTALLATION Remove Blower Access panel. Locate heater knock-out plate at rear of control box. With tin snips, cut the four tabs located at the center points of the edges of knock-out plate. Discard knock-out plate. - Page 3 INSTALLER'S GUIDE 10. Secure breaker/pull disconnect mount plate with two screws along the bottom of plate. 11. Make all wiring connections per applicable field wiring diagrams. All installations must conform to national, state and local electrical codes. 12. Connect the polarized harness plug to the polarized plug on the heater.
- Page 4 240 Volt 208 Volt No. of Cir- Heater Model No Capacity Capacity Heater Amps per Heater Amps per cuits/Phases Circuit Circuit BTUH BTUH BAYHTR1504BRKC, BAYHTR1504LUGB 3.84 13100 16.0 2.88 9800 13.8 BAYHTR1505BRKC, BAYHTR1505LUGB 16400 20.0 12300 17.3 BAYHTR1508BRKC, BAYHTR1508LUGB 7.68 26200 32.0...
- Page 5 INSTALLER'S GUIDE HEATER STAGING The TEM/A4AH4 air handler families do not stage air flow in correlation with heater element staging. The minimum heating air flow table is representative for any call for indoor heat. BAYHTR ELECTRIC HEAT STAGE MATRIX Electric Heat Stages Stage 1 Capacity (kW) 3.84 7.68...
- Page 6 INSTALLER'S GUIDE Page 6 of 20 10/16/2019 REV #1 Page 6 18-HB22D1-14 MOHS, PLANS EXAMINER 2405 E AINSWORTH AVE B19-2396 INSTALL HVAC SYSTEM/PORT OF PASCO 10/1/2019...
- Page 7 INSTALLER'S GUIDE Page 7 of 20 10/16/2019 REV #1 18-HB22D1-14 Page 7 MOHS, PLANS EXAMINER 2405 E AINSWORTH AVE B19-2396 INSTALL HVAC SYSTEM/PORT OF PASCO 10/1/2019...
- Page 8 INSTALLER'S GUIDE Trane 6200 Troup Highway LISTED Tyler,TX 75707-9010 Since the manufacturer has a policy of continuous product and product data improvement, it reserves the right to change design and specification without notice. SA11679 Page 8 of 20 10/16/2019 REV #1...
- Page 9 Submittal Split System Heat Pump 4A6H5060H1000A N N o o t t e e : : “Graphics in this document are for representation only. Actual model may differ in appearance. ” TAG:______________________________ S S A A F F E E T T Y Y W W A A R R N N I I N N G G Only qualified personnel should install and service the equipment.
-
Page 10: Sound Power Level
Model Base 1147 4A6H5060H (45–1/8) (37–1/4) (34–1/4) (3–7/8) (8–5/8) (3–3/8) (32) SOUND POWER LEVEL Full Octave Sound Power [dB] A-Weighted Sound Model Power Level [dB(A)] 63 Hz* 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz 4A6H5060H Note: Rated in accordance with AHRI Standard 270–2008 *For reference only. -
Page 11: Product Specifications
DIA. (IN.) — NO. USED 27.6 — 1 Trane outdoor condensing units are factory charged with the system charge required for the outdoor condensing unit and 15 feet of tested TYPE DRIVE — NO. SPEEDS DIRECT — 1 connecting lines. -
Page 12: Mechanical Specification Options
Mechanical Specification Options G G e e n n e e r r a a l l C C o o m m p p r r e e s s s s o o r r The Outdoor Units are fully charged from the factory The compressor features internal over temperature, for up to 15 feet of piping. - Page 13 Submittal Variable Speed Convertible Air Handler 5 Ton TEM6A0D60H51SB N N o o t t e e : : The TEM6 series air handler is designed for installation in a closet, utility room, alcove, basement, crawlspace or attic. These versatile units are applicable to air conditioning and heat pump applications.
-
Page 14: Outline Drawing
Outline Drawing NOTE: THIS UNIT IS APPROVED FOR INSTALLATION CLEARANCES TO COMBUSTIBLE MATERIAL AS STATED ON THE UNIT RATING NAMEPLATE PRODUCT DIMENSIONS Flow Gas Line Air Handler Model Control Braze TEM6A0D60H51SB 53.87 26.50 24.50 24.75 7.01 9.66 27.19 All dimensions are in inches TEM6A0D60-SUB-1E-EN Page 14 of 20 10/16/2019 REV #1... - Page 15 Product Specifications MODEL TEM6A0D60H51SB F.L. Amps RATED VOLTS/PH/HZ 208-230/1/60 FILTER RATINGS See O.D. Specifications Filter Furnished? REFRIGERANT R-410A INDOOR COIL — Type Plate Fin Ref. Line Connections Brazed Rows — F.P.I. 4 - 16 Coupling or Conn. Size — Face Area (sq. ft.) 6.47 in.
- Page 16 Minimum Airflow CFM TEM6A0D60H51SB Heater Minimum Heater Airflow CFM With Heat Pump Without Heat Pump BAYHTR1504BRK, BAYHTR1504LUG 1150 BAYHTR1505BRK, BAYHTR1505LUG BAYHTR1508BRK, BAYHTR1508LUG 1150 BAYHTR1510BRK, BAYHTR1510LUG 1150 BAYHTR1517BRK 1300 1125 BAYHTR3510LUG 1150 BAYHTR3517LUG 1300 1125 BAYHTR1523BRK 1380 1125 BAYHTR1525BRK 1550 1345 TEM6A0D60H51SB Airflow Performance with Auxiliary Heat Dip Switch Settings Airflow Settings...
- Page 17 Heater Pressure Drop Table Number of Racks Heater Racks Airflow Heater Model No. of Racks Air Pressure Drop — Inches W.G. BAYHTR1504 1800 0.02 0.04 0.06 0.14 BAYHTR1505 1700 0.02 0.04 0.06 0.14 BAYHTR1508 1600 0.02 0.04 0.06 0.13 BAYHTR1510 1500 0.02 0.04...
- Page 18 Performance and Electrical Data Table 1. Air Flow Performance TEM6A0D48H41SB, TEM6A0D60H51SB COOLING AIRFLOW PERFORMANCE, WET COIL, NO FILTER, NO HEATER OUTDOOR DIP SWITCH SETTING EXTERNAL STATIC PRESSURE SPEED AIRFLOW AIRFLOW UNIT SIZE SETTING SETTING POWER (TONS) 323 CFM/ Watts 367 CFM/ 1111 1113 1101...
-
Page 19: Features And Benefits
P P e e r r f f o o r r m m a a n n c c e e a a n n d d E E l l e e c c t t r r i i c c a a l l D D a a t t a a See Product Data or Air Handler nameplate for approved combinations of Air Handlers and Heaters. - Page 20 ® , Thermo King ® Trane ® — work together to enhance the quality and comfort of air in homes and buildings; transport and protect food and perishables; and increase industrial productivity and efficiency. We are a global business committed to a world of sustainable progress and enduring results.
