W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide

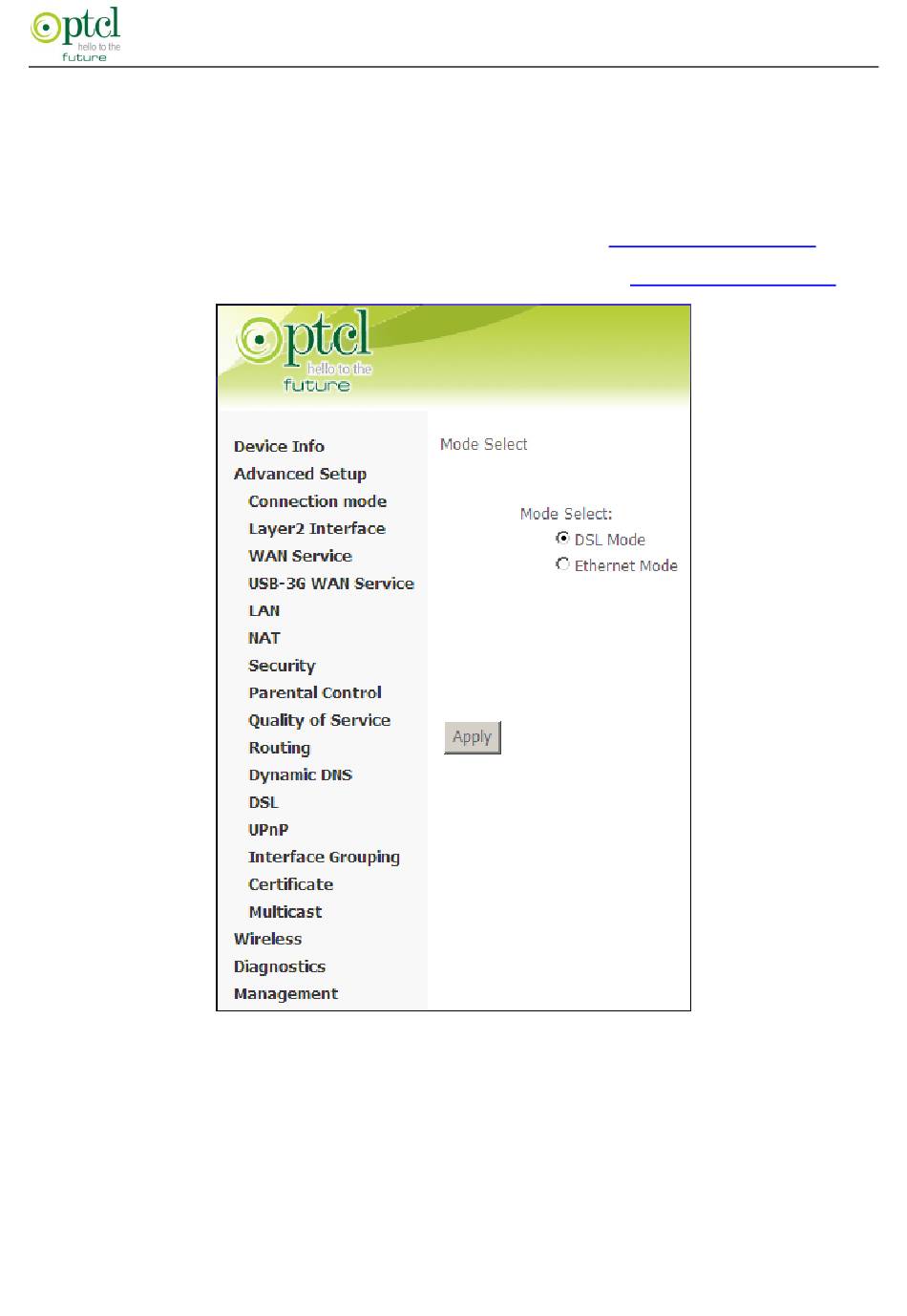

4.2.1 Connection Mode
This router supports two connection modes: DSL mode and Ethernet mode. Select DSL mode, if you access Internet via
telephone line or Ethernet Mode if you access Internet via Ethernet cable. By default, system is in DSL mode.
If DSL mode is selected, you are required to configure the ATM Interface (see To set up the ATM interface).
If Ethernet mode is selected, you are required to configure the Eth Interface (see To set up the ETH interface).

4.2.2 Layer2 Interface

Click Advanced Setup -> Layer2 Interface to enter the Layer2 Interface screen.
This router provides two Layer2 Interfaces:
- ATM Interface for ADSL broadband Internet service
- ETH Interface for connecting to Internet via an Ethernet cable.
