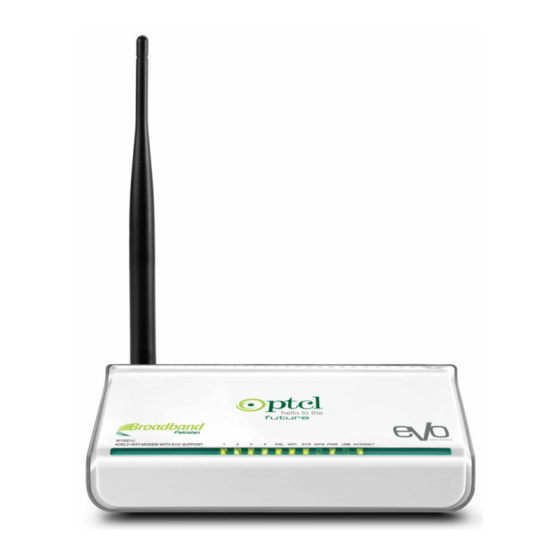

ptcl W150D-U User Manual

Adsl2+ wi-fi modem with evo support
Hide thumbs
Table of Contents

Advertisement

Quick Links

W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W150D-U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ptcl W150D-U

Summary of Contents for ptcl W150D-U

  • Page 1 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide - 1 -...
  • Page 2 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide Table of Contents ABOUT THIS MANUAL ..............................- 4 - CHAPTER 1 GET TO KNOW YOUR WIRELESS ROUTER ...................... - 5 - ..................................- 5 - RODUCT EATURES ..................................- 6 -...
  • Page 3 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide 4.5.6 Update Software ..............................- 98 - 4.5.7 Reboot ..................................- 98 - APPENDIX 1 CONFIGURE YOUR PC ........................... - 100 - 7 ..................................- 100 - INDOWS APPENDIX 2 JOIN YOUR WIRELESS NETWORK ......................- 102 - 7 ..................................

  • Page 4: About This Manual

    W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide About This Manual This user manual describes how to install, configure, operate, and troubleshoot the modem router in a simple and easy-to-understand way. - 4 -...

  • Page 5: Product Features

    W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide Chapter 1 Get to Know Your Wireless Router What it does The Wireless ADSL2+ Modem Router provides you with an easy and secure way to set up a wireless home network with fast access to the Internet over a high-speed digital subscriber line (DSL).

  • Page 6: Package Contents

    W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide  FDM technology enables telephoning, faxing and surfing activities to proceed simultaneously without mutual interference  Other Advanced Features: DDNS, virtual server, DMZ, port triggering, IP filter, MAC filter and UPnP, etc...

  • Page 7: Chapter 2 Hardware Install

    W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide Chapter 2 Hardware Install If you have not already set up your new router using the Quick Install Guide that comes in the box, this chapter walks you through the hardware install. To set up your Internet connection, see Chapter 2 Quick Internet Setup.
  • Page 8 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide Flashing Transferring data WiFi Wireless radio is deactivated Flashing Transferring data WPS connection is not established Flashing WPS connection is being established. Always On WPS connection is established. Always On Power is supplied to the device...
  • Page 9 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide  WPS/RESET: Press it for 1-3 seconds to enable WPS connection or 7 seconds to restore all configurations to factory defaults.  LAN: Ethernet RJ-45 LAN ports to cable the device to the local network devices such as computers.
  • Page 10 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide Chapter 3 Log in to Web Manager Using Browser This chapter instructs you to quickly log in to your router’s web utility. 1. Set your PC to Obtain an IP address automatically. For more information, see Appendix 1 Configure Your 2.

  • Page 11: Chapter 4 Advanced Settings

    W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide Chapter 4 Advanced Settings This chapter describes the advanced features of your router. The information is for users with a solid understanding of networking concepts who want to configure the router for unique situations.

  • Page 12: Device Info

    W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide 4.1 Device Info This section includes the following information: • Summary • • Statistics • Route • • DHCP Summary Here you can view system information and current status of your WAN connection as seen in the screenshot.
  • Page 13 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide WAN & 3G Here you can view the WAN Information including Interface, Description, Type, IGMP, NAT, Firewall, Status, IPv4 Address and VLAN ID, etc as seen in the screenshot as well as 3G information.
  • Page 14 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide _________________________________________________________________________________________________ Tip: eth0, eth1, eth3 and eth3 respectively represent the LAN port1, LAN port2, LAN port3 and LAN port4 of the device. _________________________________________________________________________________________________ Statistics--WAN: Displays the packets received and transmitted on the WAN ports as seen in the screenshot below.
  • Page 15 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide Route Here you can view the route table as seen in the screenshot: - 15 -...
  • Page 16 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide Here you can view the IP and MAC addresses of the PCs that attach to the device either via a wired or wireless connection as seen in the screenshot: DHCP Here you can view the DHCP leases, including IP and MAC addresses of the PCs, hostnames and remaining lease time...

  • Page 17: Advanced Setup

    W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide 4.2 Advanced Setup This section explains the following information: • Connection Mode • Layer2 Interface • WAN Service • USB 3G WAN Service • • • Security • Parental Control • Quality of Service •...

  • Page 18: Layer2 Interface

    W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide 4.2.1 Connection Mode This router supports two connection modes: DSL mode and Ethernet mode. Select DSL mode, if you access Internet via telephone line or Ethernet Mode if you access Internet via Ethernet cable. By default, system is in DSL mode.
  • Page 19 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide By default, system applies the ATM Interface (ADSL uplink). If you directly connect to the ADSL line via a phone cable, first refer to To set up the ATM interface and then skip to To setup WAN Service for ATM Interface.
  • Page 20 W150D-U ADSL2+ WIFI-MODEM WITH EVO SUPPORT User Guide Enter the VPI and VCI values, Select a DSL Link Type (Internet connection type): EoA (EoA is for PPPoE, IPoE, and Bridge.), PPPoA or IPoA, leave other options unchanged from factory defaults and click Apply/Save and then refer to To setup WAN Service for ATM Interface to configure the WAN service for Internet access.
