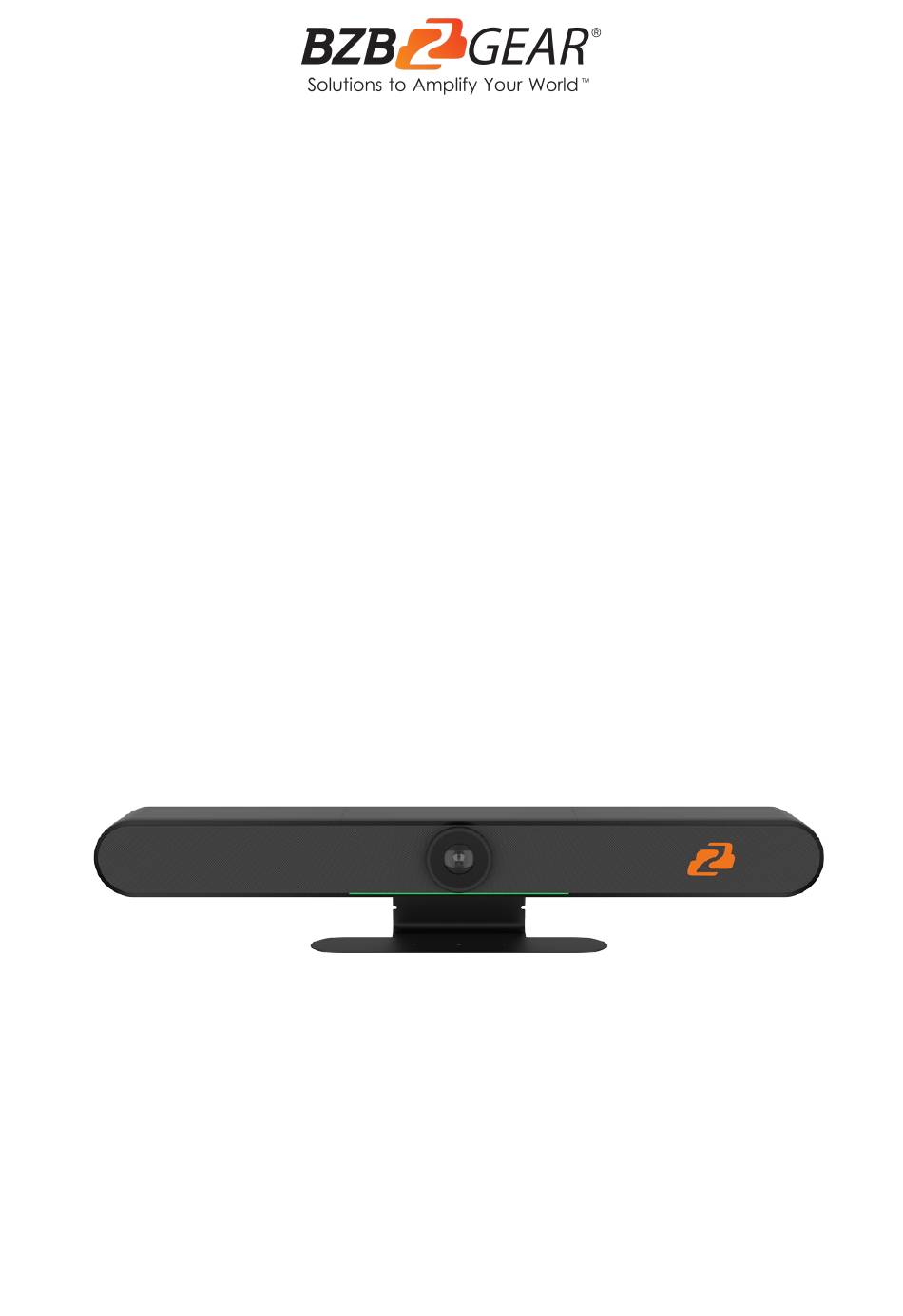

- Page 1 BG-CYCLOPS-4K Intelligent 4K All-in-One Video Bar User Manual...
- Page 2 BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Interface Device Startup How to Use Menu Setting Maintenance and Troubleshooting Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
The BG-CYCLOPS-4K can automatically adjust the image size based on the number of participants in frame to provide the optimal picture. The unit is also capable of utilizing its complex microphone array to detect the current presenter’s position in real time and lock in... -
Page 6: Features
ZOOM, Skype, Microsoft Teams, etc. Packing List ● 1 x BG-CYCLOPS-4K Video Bar ● 1 x Power Adapter ● 1 x USB Cable ● 1 x User Manual ●... -
Page 7: Specifications
BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL Specifications Field of View 120°（D） /106°（H）/ 72°（V） Iris F2.0 Lens Focal Length 1.89mm Digital Zoom Sensor High quality CMOS sensor; Effective pixels: 8 million; Aspect Ratio: 16:9 Minimum Illumination 0.5 Lux 2D & 3D Focus Auto/Manual On/Off... -
Page 8: Interface
BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL Displays current working status and can also be lit to show where the speaker's Indicator Bar- shaped Indicator voice detection is originating from. Can be connected to a mobile phone or other device via Bluetooth as a Bluetooth Bluetooth 5.0... -
Page 9: Device Startup
Open the video software on the computer and select the BG-CYCLOPS-4K as the video source. 2. HDMI: Connect the BG-CYCLOPS-4K to a display device using an HDMI cable. Select the correct input source on the display device to output. Audio Input 1. -
Page 10: How To Use
BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL How to Use No. Function Description Bluetooth Auto Framing & Voice Tracking Menu HOME Up, down, left, right Answer call Microphone muted Hang up the incoming call Volume up/down Set/call out preset #1 (Long press 3 sec to set preset, short press to call out preset) -
Page 11: Menu Setting
BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL Menu Setting Main Menu Press the menu key on the remote control and use up/down arrows to point to an item to be selected. 1. Language Move the arrow to (Language), and press【← →】to change the option 2. - Page 12 BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL 3. EXPOSURE Move the arrow to (exposure), press【HOME】to enter the exposure interface. Exposure mode: Auto/manual/shutter priority/bright priority Exposure Compensation(EV): On/off Compensation Level: -7 – 7 (only available in EV mode on) BLC: On/off (only available in auto mode) Anti-Flicker: 50Hz, 60Hz, off...
- Page 13 BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL 5. IMAGE Move the arrow to (image), and press【HOME】to enter the image page. Brightness：0～14 Contrast：0～14 Sharpness：0～15 Flip-H: On/off Flip-V: On/off B&W-Mode: Color/B&W Gamma: Default, 0.34,0.39, 0.47, 0.50 Low-Light Mode: On/off 6. NOISE REDUCTION Move the arrow to (Noise Reduction), and press【HOME】to enter the Noise Reduction page.
-
Page 14: Maintenance And Troubleshooting
BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL 7. VERSION Move arrow to (version) 8. RESTORE DEFAULT Move the arrow to (restore default), and press【HOME】to enter the RESTORE DEFAULT page. Restore default: Yes/no (color style and video format cannot be restored) Maintenance and Troubleshooting Maintenance: 1. -
Page 15: Tech Support
BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL Image is shaky or vibrating. 1. Check that the video output/video monitor cable is working normally. Remote controller does not control the camera 1. Check that the battery of the remote control is placed properly and has a charge 2. -
Page 16: Copyright
BZBGEAR BG-CYCLOPS-4K PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
