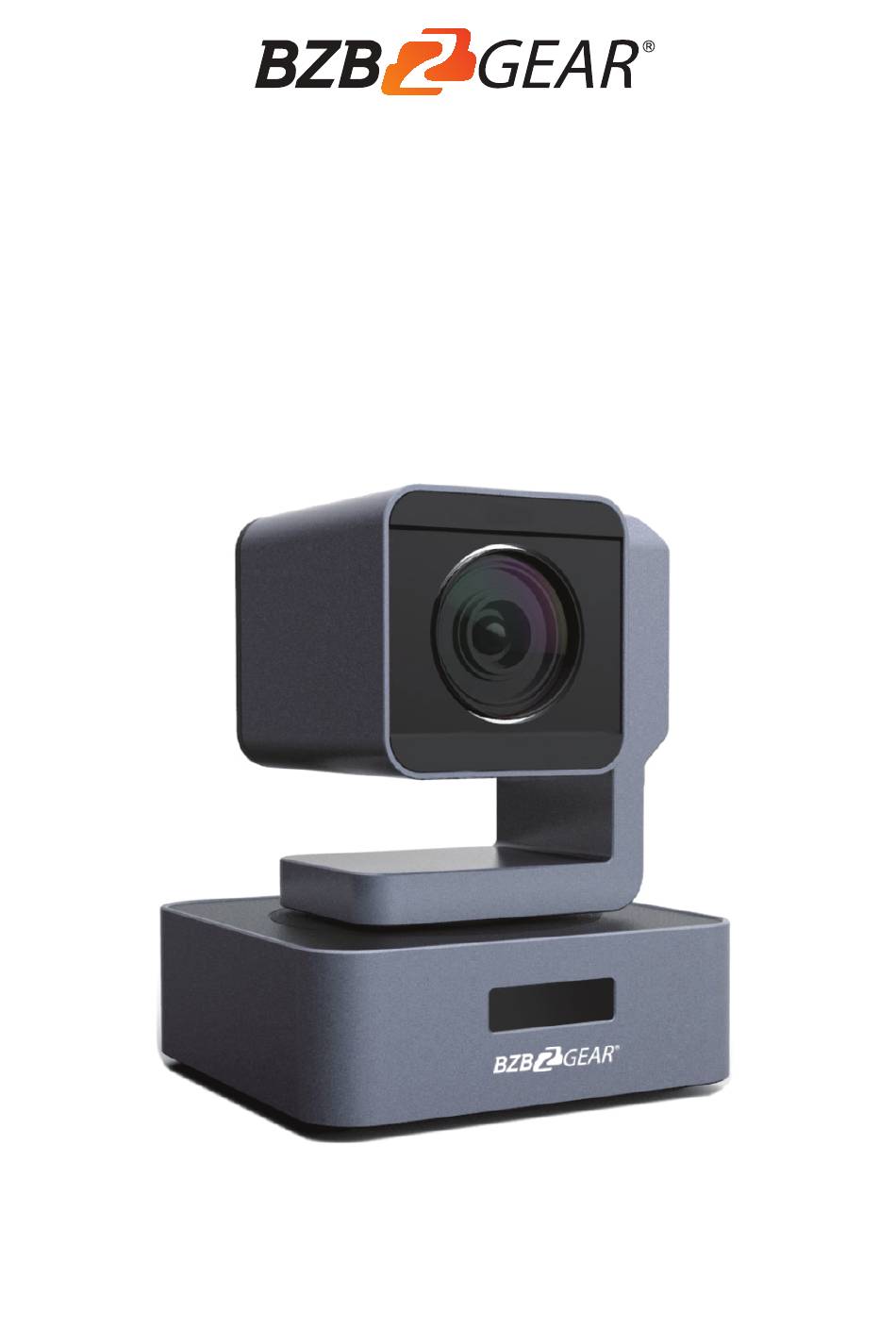

- Page 1 HD VIDEO CONFERENCE CAMERA BG-VPTZ-HSU10X User Manual...
-
Page 2: Table Of Contents
Content 1. Prec ....................3 2. Product Intr .................. 4 2.1 Camera Technical Parameters ..............4 2.2 Product Feature ..................5 3. Using Ins ..................6 3.1 Camera Interface ..................6 3.2 RS232 Interface Specifica ..............7 3.3 Camera Dimension ..................8 3.4 Remote Controller Specifica .............. -
Page 3: Prec
1. Precaution Electrical Safety Confirm country and local electrical safety standard when using or installing the product. The product itself has no power switch. Please stop power supply or plug out power socket when it is not in good working. Video wire and control wire should be insulated and individual connected, can’t mix-up with other wires. -
Page 4: Product Intr
2. Product Introduction 2.1 Camera Technical Parameters Model BG-VPTZ-HSU10X Specifica Camera Parameters CMOS Sensor 1/2.7” Exmor CMOS Eff ve Pixels 2.38 Megapixels Video Format 1080P60/59.94/50/30/29.97/25 ; 1080i60/59.94/50;720P60/59.94/50/30/25 Op cal Zoom 10x Op cal, f=5.1 ~51mm View Angle 72° (HOV) Horizontal Field of View 3.2°(T) ~ 55.2°(W) -
Page 5: Product Feature
2.2 Product Feature 1/2.8 inch high quality CMOS sensor, can reach maximum 1920 x 1080 resolutions and output frame rate up to 60fps. 10X Optical Zoom with wide horizontal of view 55.2° The camera with advanced video image processing technology & full HD 1/2.7" CMOS Sensor, 10X Op cal Zoom,Max r to 1920*1080P@60fps. -
Page 6: Using Ins
3. Using Instructions 3.1 Camera Interface 1 . Lens 7 . RS232 IN 2 . IR receiver 8 . 3G-SDI Out 3 . Power light 9 . HDMI Out 4 . Audio Interface 10 . LAN 5 . DC12V Input 11 . -
Page 7: Rs232 Interface Specifica
Connect Ways Between Computers Or Control Keyboard and Camera CAMETA WINDOWS DB-9 1.DTR 1. DCD 2.DSR 2. RXD 3.TXD 3. TXD 4.GND 4. DTR 5.RXD 5. GND 6.GND 6. DSR 7.IR OUT 7. RTS 8.NC 8. CTS 9. RI CAMERA Mini DIN RS232INPUT 1.DTR... -
Page 8: Camera Dimension
3.3 Camera Dimension The Size for HD video conference camera is as below:... -
Page 9: Remote Controller Specifica
1.Standby Bu�on 2.[MENU]: Enter/Exit the OSD menu 3.[CAMERA SELECT]: Camera ID select, select the target camera you need. 4.[FAST T]: Swi�ly adjust the lens to focus the nearby object 5.[SLOW T]: Slightly adjust the lens to focus the nearby object 6.[FAST W]: Swi�ly adjust the lens to focus the distant object 7.[SLOW W]: Slightly adjust the lens to focus... -
Page 10: Opera
4. Operation Instructions 4.1 Camera ID Select Select the target camera ID (from No.1 to No.3) When the camera ID is over 3, select No.1 will enable you to operate the camera. 4.2 Pan/Tilt Control Turn up Press Turn down Press Turn left Press Turn right Press Reposition Press: [HOME] button... -
Page 11: Focus
4.3 Focus [AUTO]Enable camera automatically focus [MANUAL] Switch to manually control mode [FAR] Manually focus the distant object [NEAR] Manually focus the nearby object Backlight imaging Strong background ray can make back-lighting objects engender shadow press [BRIGHT+] to activate the back light mode. Quit the back light mode press [BRIGHT-] Zoom Press the four [ZOOM] buttons to zoom the target object... -
Page 12: Preset Se
4.4 Preset Setting 1, Save the preset press [PRESET] button first, then press any of the numbers you need (from1- 9) to save the preset. Note: You can save at most 9 presets through the remote controller. 2, Call the preset press the saved preset number from1-9 will activate the corresponding preset position. -
Page 13: Camera Se
5. Menu Setting MAIN MENU 1, Operate remote controller, press the [MENU] button to EXPOSURE display the OSD menu. COLOR 2, Press the arrow keys to select the menu, press left and right button to set the camera. PICTURE P/T/Z NOISE REDUCE 5.1 EXPOSURE VIDEO OUT... -
Page 14: Color
5.2 COLOR Press the [MENU] button to display the OSD menu, press COLOR arrow keys to move to COLOR and then press right button WB MODE: AUTO SATURATION 100% to enter sub menu, as the right picture. COLOR HUE: [WB MODE]: AUTO/INDOOR/OUTDOOR/ONE-SHOT/ BACK ATW/MUNUAL/3000K/4000K/5000K/6500K [SATURATION]: 60%-200%... -
Page 15: P/T/Z
5.4 P/T/Z Press the [MENU] button to display the OSD P / T / Z menu, press the arrow keys to move to [P/T/ FLIP: Z], press right button to the sub menu, as the L/R DIRECTION: AF MODE: AUTO right picture shown. -
Page 16: Video Format
5.6 Video Format VIDEO OUT Press the [MENU] button to display the VIDEO OUT: 108030 OSD menu, press the arrow keys to move to RESTART [VIDEOOUT], press right button to the sub BACK menu, as the right picture shown. EXIT [VIDEO OUT] : 720P25,720P30,720P50,720P59, 720P60,1080I50,1080I59,1080I60,1080P25,1080 P29,1080P30,1080P50,1080P59,1080P60... -
Page 17: Netw
6. Network Connecting 6.1 Mode of Connecting Direct Mode: Connect camera with computer through network cable directly. LAN Connecting Mode: Camera could connect to the Internet by router or interchanger then users could log in through browser. Note: Don’t put the wires and cables at somewhere easily touched by people for fear that the quality of imaging is affected by unstable signaltransmission which is caused by line contact problem. - Page 18 After products finished self-checking, it could follow the steps as above to check if the network works. For example, open DOS commend window and input ping 192.168.1.176 and press the ENTER button. If it comes up with information as below picture, it means network working.
-
Page 19: Cgi /Apk Login
6.2 CGI /APK login 6.2.1 CGI /APK Login Open the client software (before turning on the client software, first turn off the anti-virus software such as 360, avoid being mistaken for viruses and be prohibited from running by 360). By default, admin login with user name and password can preview, record, screenshot, PTZ control, audio and video. - Page 20 6.2.2.3 Search Device Click“Search Device” Bu on ,Refresh the online camera, the online camera is displayed as a list. On the le side of the window, double-click a camera to operate the camera. 6.2.2.4 Play Video Streaming by RTSP Click“PLAY” Bu on, The Current RTSP Streaming will be Play( Default was Automa cally Real- me Play).
- Page 21 6.2.2.11 RTSP Video Streaming Enter the RTSP stream address of the current camera in the display window; Note: You can also enter others RTSP addresses into the input box and click to play the RTSP video stream. 6.2.2.12 Pan, Tilt, Zoom In/Out Control The PTZ control is as shown in the figure below.
- Page 22 6.2.2.13.1 Brightness Adjustment Click or drag the brightness control slider to change the brightness of the camera, and the label on the right will display the value of the brightness.The range of brightness varies (0-14). 6.2.2.13.2 Contrast Adjustment Click or drag the Contrast control slider to change the contrast of the camera, and the label on the right will display the value of the contrast.The range of brightness varies (0-14).
- Page 23 6.2.2.13.11 Video Style To Select different video styles through the drop-down menu, video style: standard, Bright, RTSP, Soft styles. 6.2.2.13.12 Mirror Click left of the mirror button to turn on the mirror function ,Click again to turn off the mirror function 6.2.2.13.13 FLIP Click left of the Flip button to turn on the flip function ,Click again to turn off the...
- Page 24 6.2.2.14.1 Main Streaming a.Streaming Frame Rate: Input 1-30 to setting Streaming Framer rate , default 30. b.GOP : Input 1-60 to setting valued of Frame Interval , default 30. c.Bit Rate:Input 1-10240to Setting Video Bite Rate , default 4096. d.Resolution:Through drop-down menu to selection Resolution, default 1920. e.Streaming Type:Through drop-down menu to selection Video Stream or Complex Stream, default Complex Streaming.
- Page 25 6.2.2.14.2 Sub-Streaming a. Streaming Frame Rate: Input 1-30 to setting Streaming Framer rate , default 30. b.GOP:Input 1-60 to setting valued of Frame Interval , default 30. c.Bit Rate:Input 1-10240 to Setting Video Bite Rate , default 4096. d. Resolution:Through drop-down menu to selection Resolution, default 1920. e.Streaming Type:Through drop-down menu to selection Video Stream or Complex Stream, default Complex Streaming.
- Page 26 6.2.2.15 Internet Setting The network configuration is as shown in the figure below. Double-click the camera in the list to view the network setting & Information of the current camera. a. IP Config Supports automatic IP address and manual configuration of IP. The system defaults to manual mode.
- Page 27 g. Presets Freeze:OFF,ON h. Saved & Restore Default Click“Save”Button to saved the PTZ Parameters of Current Camera. Click“default”Button to Restore PTZ Parameters of Current Camera. 6.2.2.15.4 RTSP Streaming address Default Main Streaming:rtsp://192.168.50.190:554/0/0/0 Default Sub-Streaming:rtsp://192.168.50.190:554/0/0/1 a.RTMP Auth: Through the drop-down menu to Selection“OFF”“ON”RTMP function. b.Stream type: Through the drop-down menu“Main Stream”, “Second Stream”.
- Page 28 6.2.2.16.1 Reset Restart a. Click “Restart”Bu�on to Restart Camera. b. Click“Restore se�ng”Bu�on to restore default parameters. c.Firmware Upgrade:Click the "Browse" bu�on to load the upgrade file and click "Upgrade" to Start upgrade the current camera. The upgrade progress bar shows the current upgrade status, showing 100%, indica�ng that the upgrade is complete.
-
Page 29: Installa
7. . Installation Instruction (Ceiling / Wall Mount / Tripod ） Pendent ： 1. Twist a pair of PM3 * 8 screws on each side of the bracket (keep half out hooking). 2. using one of the brackets to the ceiling with four expansion screws (STP4 * 16) (as like picture A). -
Page 30: Warranty
8. Warranty BZBGEAR wants to assure you peace of mind. All BZBGEAR cameras and camera-related products include our Stress-Free Three-Year Warranty. For complete warranty information, please visit BZBGEAR.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. -
Page 31: Mission Statement
9. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. AV solutions can cost a pretty penny, and new technology only adds to it. We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank.
