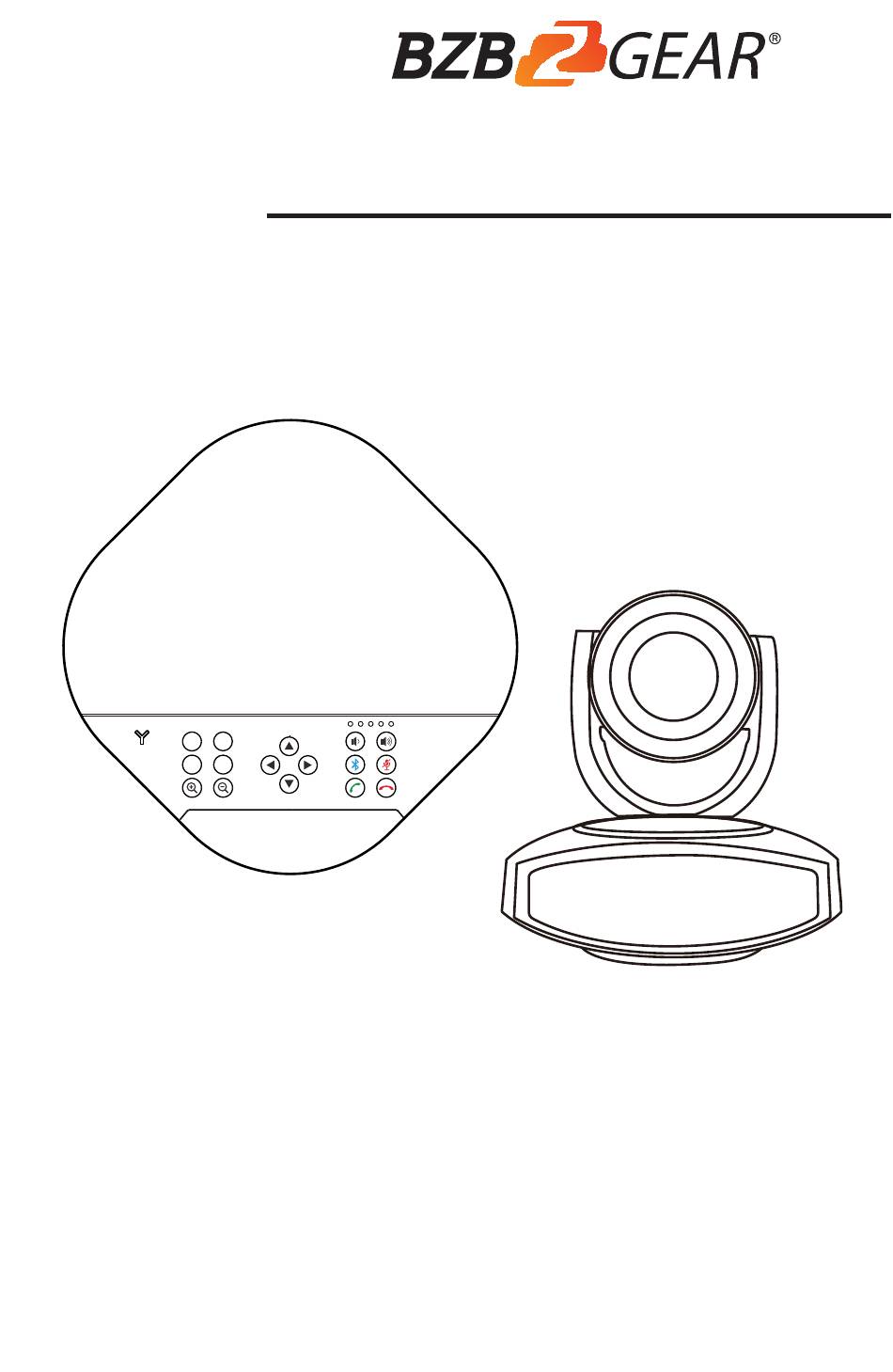

- Page 1 ALL IN ONE Video Conference System BG-AIOE-KIT...
- Page 2 Attention This manual introduces the functions, installation and operations for BG-AIOE-KIT video conferencing room solution in details. Please read this manual carefully before installation and use. How to Use 1.1 Do not expose the product to rain or moisture. 1.2 To prevent the risk of electric shock, do not open the case.
-
Page 3: Table Of Contents
Contents Packing Contents ......Product Overview ............2.1 Speakerphone ......2.2 HD PTZ Camera ......2.3 Hub Keys Description ............3.1 About Remote Control ......3.2 About Speakerphone Connection Description ......About Bluetooth Pairing ......Expansion Mics ......Technical Specifications ...... -
Page 4: Packing Contents
Packing Contents 1.Speakerphone 2.HD ptz camera 3.Hub 4.Remote control 5.5m din6 cable * 2 pcs 6. 3m usb cable *1 pcs 7. Power supply... -
Page 5: Product Overview
Product Overview 2.1 Speakerphone Optional expansion microphone port 1 2.Optional expansion microphone port 2 3.Din6 cable port 4.Led Status indicator 5.Bluetooth/power indicator 6.Function keys 7.Volume indicator 2.2 HD PTZ Camera 1. LAN（Upgrade and maintenance） 2. DIN6 Cable port 3. Power and infrared receiving indicator 4. -
Page 6: Hub
2.3 Hub 3 4 5 1. DIN6 Cable port 2. DIN6 Cable port 4. Power port 3. Mini USB port 6. Power indicator 5. Power switch 7. Screw holes 8. Wire slot Keys Description 3.1 About Remote control 1: Power/standby 2: Zoom in 3: Zoom out 4: Volume up... -
Page 7: About Speakerphone
3.2 About Speakerphone Those keys represent the camera’s Presets button preset positions 1, 2 and 3 respectively Remote control The Camera Zero position button Zoom in/out The camera zooms in/out Control the direction of the camera: Camera pan/tilt up, down, left, right. Volume button Press to Volume up/down button Bluetooth button... -
Page 8: Connection Description
DIN6 cable to camera DIN6 cable to microphone Power Supply 12V DC ( AC power adaptor ) BG-AIOE-KIT can be connected to computer, hardware video devices and system via the Hub USB. Connection steps: Connect the camera and hub with the original DIN6 data cable. -
Page 9: About Bluetooth Pairing
About Bluetooth Pairing Audio call with Bluetooth 1. Press . Y Bluetooth indicator flashes meaning the microphone has entered Bluetooth pairing mode. 2. Place the mobile device in Bluetooth search mode and select “BG -AIOE- KIT”. After the Bluetooth connected, the indicator is blue. Now you can use the microphone for audio calls. -
Page 10: Expansion Mics
The installation and use of expansion mics (optional) Used for important and larger conferences. Connect one end of a 4p4c cable (2.5m) to the socket of the expansion microphone, and the other end to the EXT1 of the Omni directional microphone. Connect one end of a 4p4c cable (2.5m) to the socket of the expansion microphone, and the other end to the EXT2 of the omnidirectional microphone. -
Page 11: Technical Specifications
6.Technical Specifications Model NO. HD PTZ Camera Sensor 1/2.8-inch high quality HD CMOS sensor Effective Pixels 2.07M, 16:9 176x144/320x240/320x180/352x288/640x480/ 720x480/720x576/640x360/800X600/960X540/ Video Format 1024X576/1024X768/1280X720/ 1920X1080P30/25/20/15/10/5 Optical zoom lens 10x optical zoom, f＝4.7～47mm Digital zoom View angle 20°（tele) 83.7°（wide） F1.8 – F2.8 Aperture value Minimum Illumination 0.5Lux(F1.8, AGC ON) - Page 12 Model NO. Speakerphone Acoustic Echo cancellation (AEC):>65dB Echo length cancellation: ≥500ms Voice technical Bidirectional noise compression(NC):<25dB parameters Automatic Direction finding Technology of Intelligent microphone(EMI0 Automatic gain control (AGC) Microphone frequency response:100Hz-22KHz Speaker frequency response:100Hz-22KHz Audio parameters Speaker volume:95dB at the most Microphone sound-pickup diameter: 6 meters, 360 degrees full range Bluetooth...
- Page 13 Power adapter, USB2.0 cable, Accessories remote controller, 2 connection cables, user manual...
-
Page 14: Warranty
Warranty BZBGEAR wants to assure you peace of mind. All BZBGEAR cameras and camera-related products include our Stress-Free Three-Year Warranty. For complete warranty information, please visit BZBGEAR.com/warranty. For questions, please call 1.888.499.9906 or email support@bzbgear.com. Mission Statement BZBGEAR manifests from the competitive nature of the audiovisual industry to innovate while keeping the customer in mind. - Page 15 Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’ s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change without notice.
