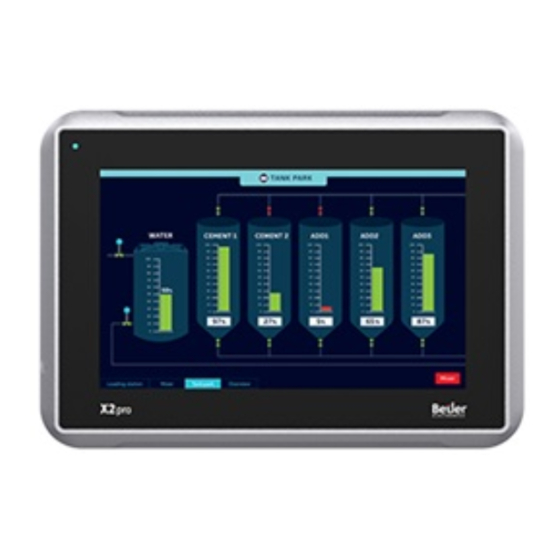

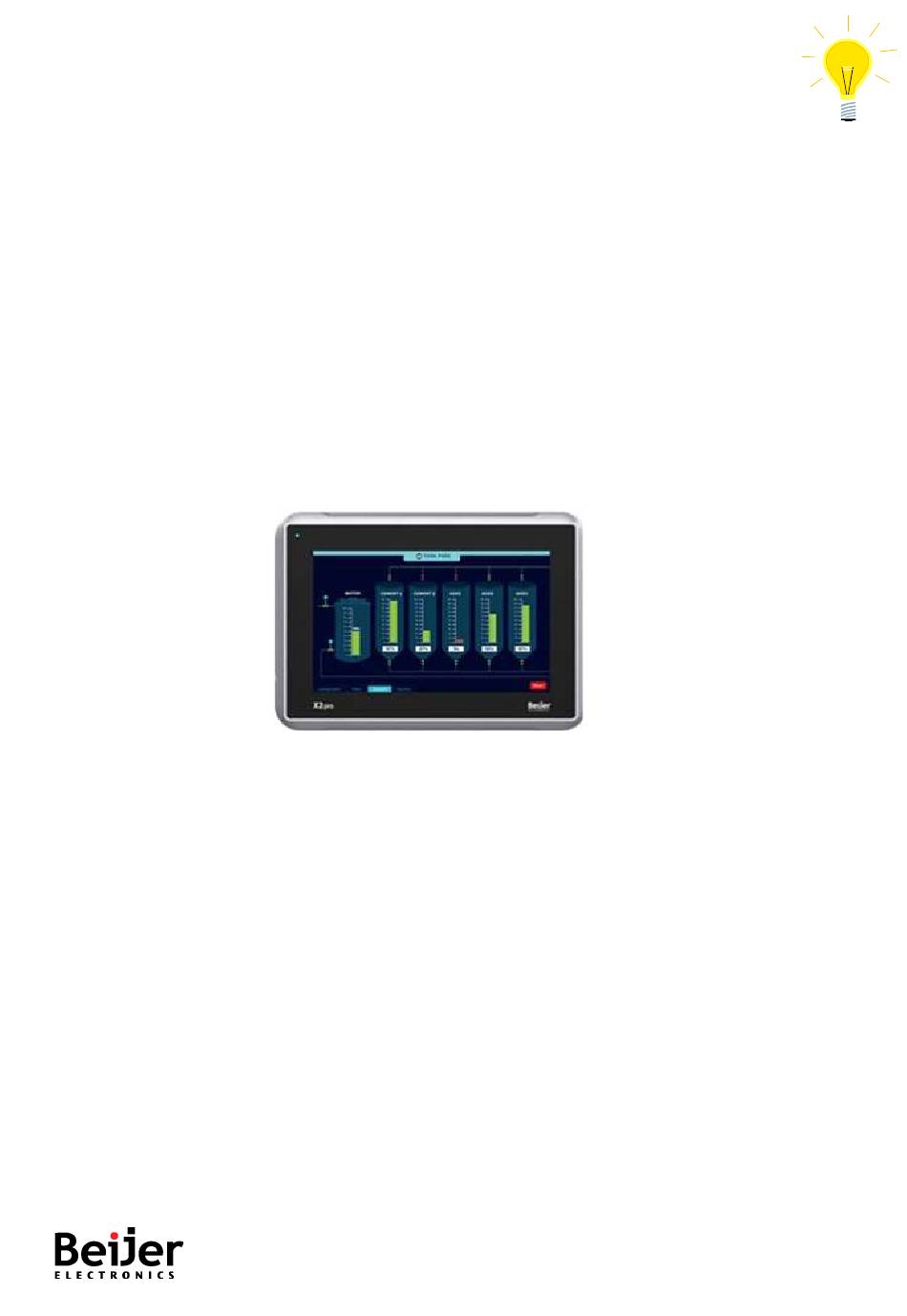

- Page 1 Quick Start Guide MELSEC QnUDE Ethernet to X2 series SUEN00403 – Quick start Ethernet communication...
- Page 2 The material may only be used with products or software supplied by Beijer Electronics. Beijer Electronics assumes no responsibility for any defects in the material, or for any consequences that might arise from the use of the material.
- Page 3 4 Setting in QnUDE Ethernet communication ..............4 5 Setting in X2/BoX2 Ethernet communication..............5 Create a new project in iX Developer ..............5 Driver setting (MC Protocol) ................7 6 About Beijer Electronics ..................8 Contact us ....................8 3 (8)
- Page 4 QnUDE Ethernet – X2/BoX2 series SUEN00403 2020-10 4 Setting in QnUDE Ethernet communication The following chapter describes how to setup the Ethernet communication. Adjust the Built-in Ethernet port open settings located in PLC-Parameter. Enter IP address, Subnet Mask and (if used) Default Gateway.
- Page 5 QnUDE Ethernet – X2/BoX2 series SUEN00403 2020-10 5 Setting in X2/BoX2 Ethernet communication The following chapter describes how to setup the Ethernet communication in iX Devloper using the MC Protocol driver connecting to QnUDE. Create a new project in iX Developer Start iX Developer, select “Create New Project”:...
- Page 6 QnUDE Ethernet – X2/BoX2 series SUEN00403 2020-10 When creating a new project or adding/changing controller Select MC Protocol: Type path and project name: 6 (8)
- Page 7 QnUDE Ethernet – X2/BoX2 series SUEN00403 2020-10 Driver setting (MC Protocol) Double click on “Tags”: Select “Controllers” - “Settings…”: Select “UDP” and “Hexadecimal”: Type IP address and port number stated in GX Works3: Tip! Help about driver, click on “Help”...
- Page 8 Industrial Internet of Things, we empower you to meet your challenges through leading-edge solutions. Beijer Electronics is a Beijer Group company. Beijer Group has a sale over 1.6 billion SEK in 2019 and is listed on the NASDAQ OMX Nordic Stockholm Small Cap list under the ticker BELE.
