Summary of Contents for Orbic Q10

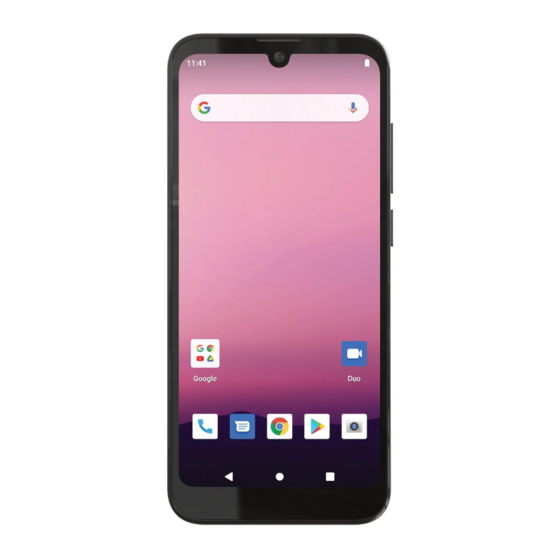

- Page 1 Orbic Q10 RC609L disassembly guide 2022-04-28...
- Page 2 Notes on Assembly and Disassembly Thank you for buying an Orbic Q10 mobile phone, This product is designed to give you years of quality trouble free performance, if in the unlikely event your device does not function as required and needs servicing, we strongly recommend that you contact us at Orbic in regards to getting your device repaired both in and out of warranty.
- Page 3 ORBIC Q10 ID...
-
Page 4: Exploded Drawing
EXPLODED DRAWING... - Page 5 Remove the Sim card tray with the card pin...
- Page 6 Remove the two T3 screws at the bottom...
- Page 7 Starting from the bottom, loosen the button of the battery cover, and then remove the battery cover...
- Page 8 Loosen the fingerprint module connector...
- Page 9 Loosen 15 body screws...
- Page 10 Disassemble the bottom case and speaker bracket...
- Page 11 Loosen the three connectors and side key FPC...
- Page 12 Loosen the terminals at both ends of the coaxial cable...
- Page 13 Remove the small board (mobile phone SUB board PCBA)
- Page 14 Use tweezers to push the Use tweezers to push the indication on the side of indication on the other side the motherboard to trip of the motherboard to trip the motherboard the motherboard...
- Page 15 Remove the motherboard after the two motherboard buckles are released...
- Page 17 THANK YOU Designed in the USA Made in India...
