Page 1: Table Of Contents

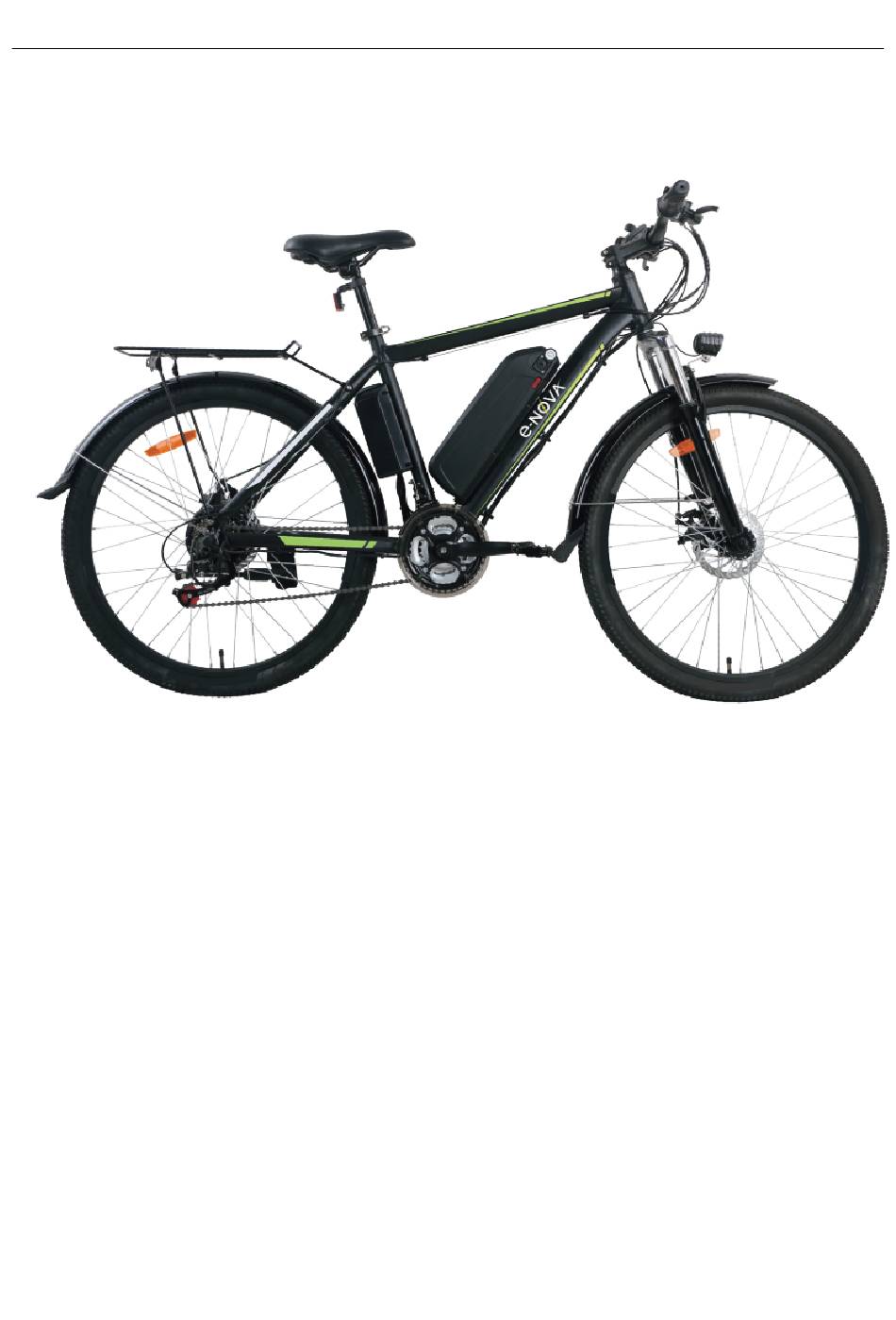

Version 1.1 User Manual e-NOVA CINB2201 Contents 1. Warranty conditions 2. Safety Instructions 2.1 Electrical Safety 3. Features 3.1 Electrical System 4. Parts of the Bicycle 4.1 Parts 4.2 The saddle and seatpost 5. General Terms of Use 5.1 IMPORTANT! Before riding your bicycle: 5.2 Throttle... -
Page 2: Warranty Conditions
The warranty is void in case of improper assembly of the bike, abuse, neglect, lack of maintenance, misuse, or accidents, as well as improper charging of the battery or use of any charger not supplied by e-nova. In no case shall Novaterr, our directors, officers, employees, affiliates, agents, contractors, interns, suppliers,... -
Page 3: Safety Instructions
Version 1.1 2. Safety Instructions Read the instruction manual thoroughly and follow the safety instructions in particular very carefully before the use of bicycles Always obey traffic regulations. • Do not use if you are not familiar with the bike and operating instructions before riding •... -
Page 4: Features
Version 1.1 3. Features Height-adjustable seatpost, suitable for different rider heights. • The bike can be operated with or without the electrical assistance. • Maximum weight of the rider: 136kg/300lb • Ebike gross weight: approx.30kg • 3.1 Electrical System Battery: 36 Volt lithium-ion (Li-ion) 10Ah •... -
Page 5: General Terms Of Use
Version 1.1 5. General Terms of Use 5.1 IMPORTANT! Before riding your bicycle: Check that the seatpost and handlebars are tightened securely. • Check that all bolts, nuts and fasteners are properly tightened. Pay special attention to the engine • mounts, the front fork, seatpost, saddle and handlebar. -
Page 6: Charging The Battery
Version 1.1 5.5 Charging the battery You can charge the battery when it is on the bike, or you can remove the battery and charge it in a more convenient place. To charge the battery, first pull out the charging connector cover, then connect the AC charger to the charging plug on the battery and then plug the charger into an AC outlet. -
Page 7: Brakes
Version 1.1 5.7 Brakes Do not brake too sharply or abruptly. Otherwise, you may fall from the bicycle. • The left brake lever controls the front wheel brake, and the right brake lever controls the rear wheel • brake. To reduce the effect of inertia, it is recommended to shift your weight backward while braking. •... -
Page 8: Technical Specifications
The charger connected to the battery but the battery Check that the battery is not fully charged is not charging already Check that the charger is properly connected 7.1 Technical Specifications Model CINB2201 Type Pedelec Weight 24.3 kg Permissible Gross Weight Maximum 75 kg... -
Page 9: The Front Wheel
Version 1.1 8.2 The front wheel Tear off the front fork packaging and install the front wheel on the front fork. Pay attention to the orientation of the front wheel: the front wheel disc is on the same side as the front fork disc brake seat. -
Page 10: The Seatpost And Saddle
Version 1.1 8.4 The seatpost and saddle Loosen the quick release and insert the saddle into the seatpost. Straighten the angle of the saddle so that it is in line with the bike frame, and adjust the height to a suitable height (be careful not to exceed the seatpost safety line) and lock the quick release handle. -
Page 11: The Front Light And The Front Fender And Rear Fender
Version 1.1 8.6 The front light and the front fender and rear fender Position the light on the front fork. Insert the bolt and go through the front light and the front fork hole, paying attention to the gasket on the bolt head. Take the front fender and install it behind the front fork. - Page 12 Version 1.1 Please make sure to leave enough of a gap between the rear fender and the tire. You can adjust the gap using the rear fender bracket.
