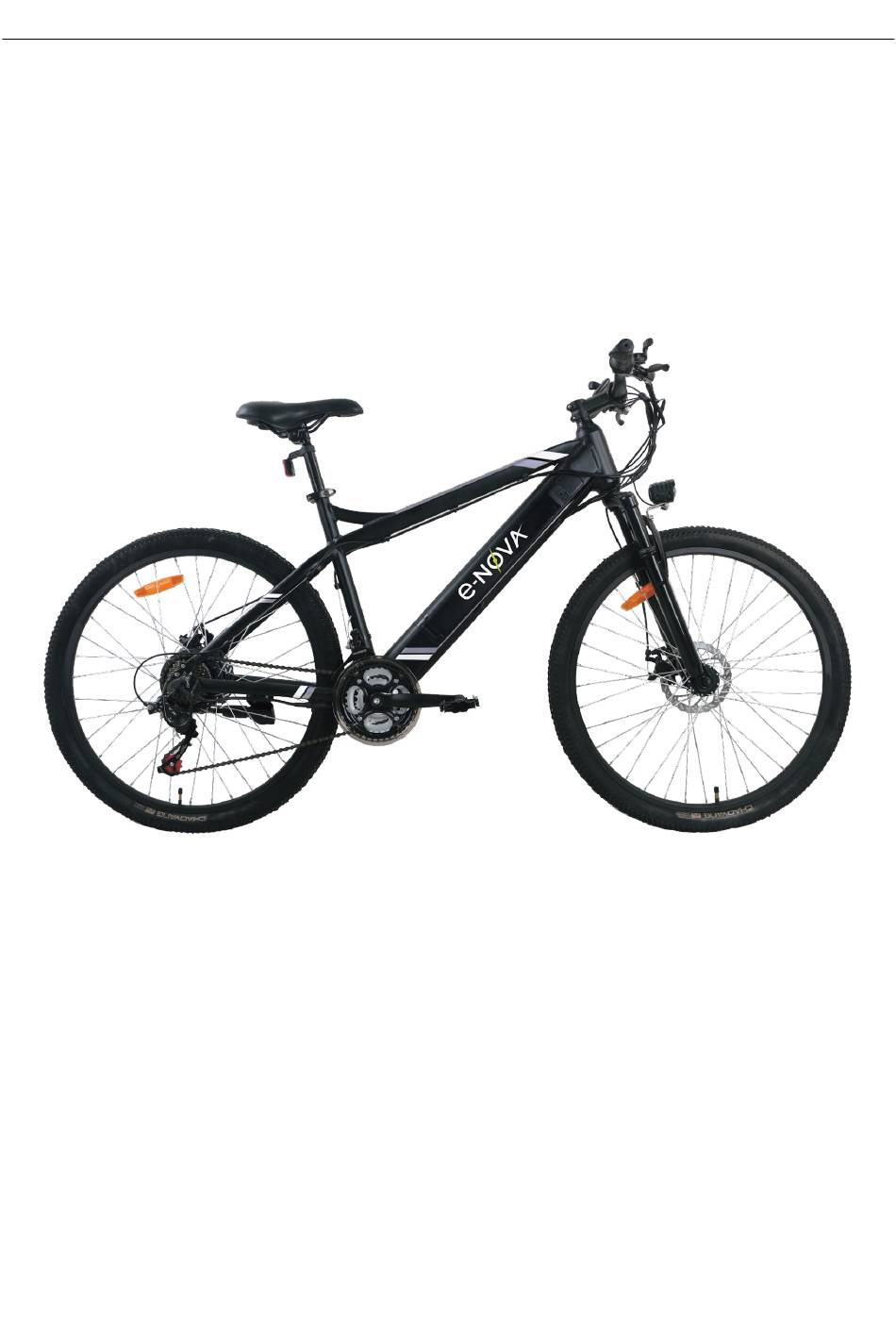

- Page 1 Version 1.1 User Manual e-NOVA CPNB2201...
-
Page 2: Table Of Contents
The warranty is void in case of improper assembly of the bike, abuse, neglect, lack of maintenance, misuse, or accidents, as well as improper charging of the battery or use of any charger not supplied by e-nova. In no case shall Novaterr, our directors, officers, employees, affiliates, agents, contractors, interns, suppliers,... -
Page 3: Safety Instructions
Version 1.1 service providers or licensors be liable for any injury, loss, claim, or any direct, indirect, incidental, punitive, special, or consequential damages of any kind, including, without limitation lost profits, lost revenue, lost savings, loss of data, replacement costs, or any similar damages, whether based in contract, tort (including negligence), strict liability or otherwise, arising from your use of any of the service or any products procured using the service, or for any other claim related in any way to your use of the service or any product, including, but not limited to, any errors or omissions in any content, or any loss or damage of any kind... -
Page 4: Features
Version 1.1 If not used regularly, the battery must be recharged every two months. • Please keep the battery in a dry, cool and ventilated place. Avoid high temperatures, cold temperatures, • and/or high humidity environments. IMPORTANT! Please read this manual carefully and strictly follow the instructions to assemble, operate and maintain this product. -
Page 5: General Terms Of Use
Version 1.1 tighten the screw back in place. Ensure that the saddle remains firmly in place. General Terms of Use 5.1 IMPORTANT! Before riding your bicycle: Check that the seatpost and handlebars are tightened securely. • Check that all bolts, nuts and fasteners are properly tightened. Pay special attention to the engine •... -
Page 6: Removing The Battery
Version 1.1 5.4 Removing the battery To remove the battery, unlock the battery using the key. Insert the key into the lock and turn it counterclockwise, then remove the battery. When you're done, put the battery back in place and lock. 5.5 Charging the battery You can charge the battery when it is on the bike, or you can remove the battery and charge it in a more convenient place. -
Page 7: Button And Display
Version 1.1 5.8 Button and Display Headlight Button Bell Shifter LED Control Unit Throttle 5.9 Control Unit The throttle and pedal assist will not work when the display is just on. The throttle is activated by twisting the right handlebar, while the pedal assist is activated when you set the controller to step 1 (low), 2 (medium), or 3 (high). -
Page 8: Maintenance And Repairs
The charger connected to the battery but the battery Check that the battery is not fully charged is not charging already Check that the charger is properly connected 7.1 Technical Specifications Model E-Nova ZNH-E-1911 Type Pedelec Weight 22.5 kg Permissible Gross Weight Maximum 75 kg... -
Page 9: Assembly Guide
Version 1.1 8. Assembly guide 8.1 Take out the bike from the original packaging Remove all the parts from the original packaging. Check if the parts are damaged before assembly. The seatpost, saddle and handlebars are tied to the Ebike, and the front wheel is tied to the front fork legs. (Use scissors to cut the cable tie for assembling use) In addition, there are pedals, charger, charger cable and assembly tools in the cardboard box. -
Page 10: The Seatpost And Saddle
Version 1.1 should be at equal distance from the center of the stem), and correct rotation angle of the handlebars. Tighten the screws of the front cover of the stem. Rotate the handlebar to make sure that the handlebars are perpendicular to the direction of the front wheel. -
Page 11: The Battery
Version 1.1 8.6 The battery Take out the battery, align it with the notch on the left, and slide it in to the left. The battery is flush with the plastic part. You will hear the sound of the key lock, when it is locked. Check whether the battery is locked. -
Page 12: The Front Light
Version 1.1 8.7 The front light Take the screw out and pass the screw through the center hole of the front light corresponding to the front fork gantry, paying attention to the gasket on the screw head. Take 4 mm hex key, fix the front screw and lock the screw, pay attention to the position of the front light.
