Page 1: Table Of Contents

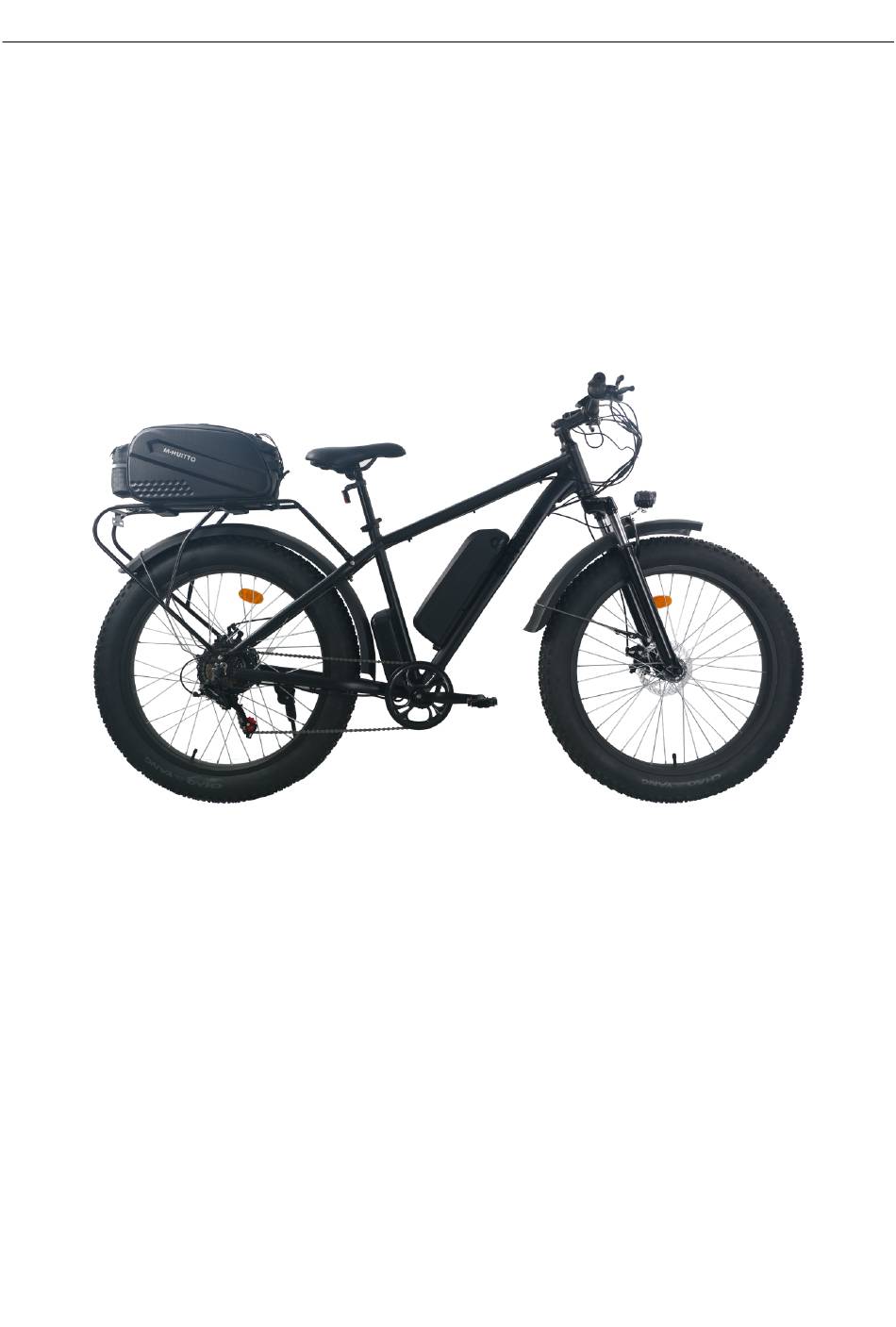

Version 1.0 User Manual PERFORMANCE-NOVABIKE HPNB2201 Contents 1. Warranty conditions 2.★★Safety Instructions★★ 2.1 Electrical Safety 3. Features 3.1 Electrical System 4. Parts of the E-bike... -
Page 2: Warranty Conditions
Version 1.0 4.1 Parts 4.2 The saddle and handlebar stem 5. General Terms of Use 5.1 IMPORTANT! AIways before riding a bicycle: 5.2 Throttle 5.3 During the riding 5.4 Battery and Charger 5.5 Charging the battery 5.6 Removing the battery 5.7 Battery level 5.8 Brakes 5.9 Button and Display... -
Page 3: Safety Instructions
Version 1.0 indirect costs unless otherwise stipulated by mandatory law. Safe disposal of the product The appliance and its accessories must not be disposed of with normal household waste at the end of its life cycle. 2.★★Safety Instructions★★ Read the instruction manual thoroughly and follow the safety instructions in particular very carefully •... -
Page 4: Features
Version 1.0 In order to ensure the battery life, the battery must be recharged every two months. • Please keep the battery in a dry, cool and ventilated place. Avoid high temperature, super cold, and high • humidity the environment. IMPORTANT! Please read this manual carefully and strictly following it during the use of this product. -
Page 5: Electrical System
Version 1.0 3.1 Electrical System Battery: 48 Vol lithium-ion (Li-ion)13Ah • Engine:48 V,500W, brushless • Pedal Sensor: speed sensor • Top speed: 42km/h(limited) • Operating Distance: Up to 38-47km • 4. Parts of the E-bike 4.1 Parts 1. Frame 2. Changeable battery 3. -
Page 6: General Terms Of Use
Version 1.0 with a safety limit of subscriptions. Failure to follow these instructions may lead to serious personal injury. 1. Open the stem I saddle lock lever. 2. Adjust the stem /saddle to the desired height. Do not exceed the safety limit indication. 3. -
Page 7: Charging The Battery
Version 1.0 When you charge the battery, insert the battery into a safe place away from children. • Only use the supplied AC charger to charge the battery. Contact your dealer if you need a new charger. • Never open, repair or modify the charger/battery by yourself. •... -
Page 8: Button And Display
Version 1.0 (right). Move the body weight of backward braking, to reduce the effect of inertia. • Keep your brakes in good condition and adjust / Export adjusted brakes if necessary. If the brake • pads are worn out, replace the brake pads in good time or deliver your bikes for repair. Before riding, always check the brakes. -
Page 9: Maintenance
Version 1.0 7. Maintenance Problem Solution Low top speed Charging the battery fully Power switched on but the engine does not work Install the battery again Shortened Range View tire pressures Charge the battery again or let the charger examined Replace the battery with a new battery Power switched on;... -
Page 10: Installation Guide
Version 1.0 Type Pedelec Weight 32kg Permissible Gross Weight Maximum 120 kg Dimensions (W D H) mm 1540x300x880 × × Maximum Speed 42km/h(Limited) Maximum Mileage 38-47km Display 3 step LCD Battery 48V, Li-ion,13Ah Chargers 100V~240V/42V*2A Charging time 3~4 hours Brakes Disc Brake Motor 48V 500W... -
Page 11: The Handlebar And The Stem
Version 1.0 8.3 The handlebar and the stem ①Hold the stem upright and pre-lock the upper screws of the stem. ②Loosen the 4 screws of the front cover of the stem, then take the handlebar and put it into the stem to lock the handlebar, pay attention to the corresponding middle position of the handlebar, and tighten the screws at a proper angle of the handlebar. -
Page 12: The Battery
Version 1.0 8.6 The battery ①Take out the battery, align it with the notch on the left, and slide it in to the left. The battery is flush with the plastic part. When you hear the sound of the key lock, then itis locked. ②Check whether the battery is locked.
