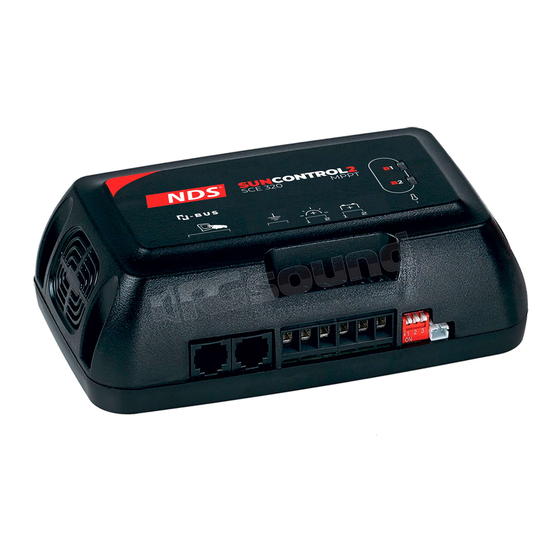

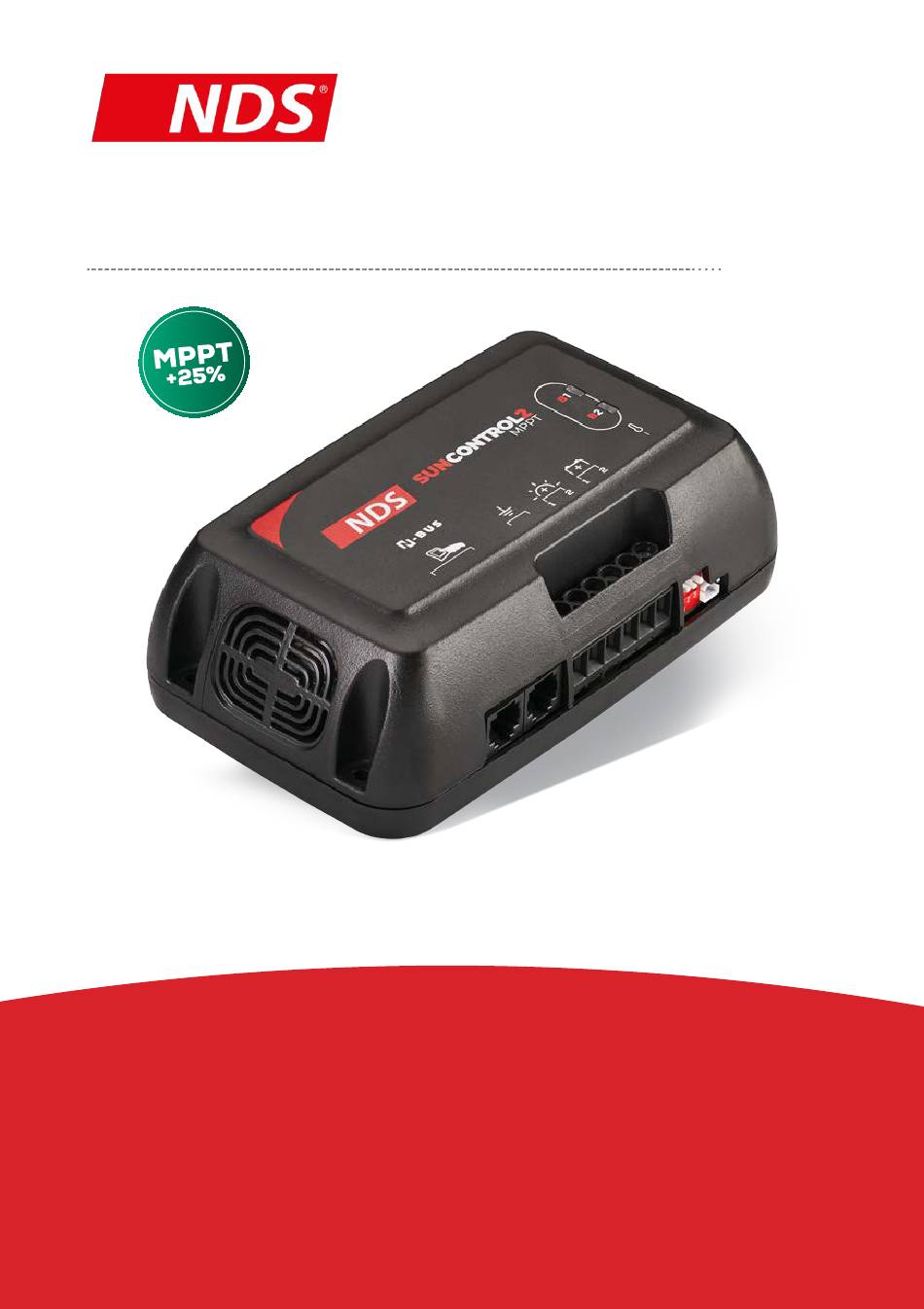

- Page 1 SUNCONTROL2 User manual ENGLISH VALID FOR THE FOLLOWING MODELS SCE 320 SCE 360...
- Page 2 INSTRUCTIONS FOR THE PROPER DISPOSAL This electronic product is subject to the European Directive 2012/19 / EU. Comply with local waste disposal regulations, do not dispose of old products with normal household waste. The proper disposal of products that can no longer be used prevents potential negative consequences for the environment and for the population.
- Page 3 INDEX 1. SAFETY INSTRUCTIONS 2. PACKAGE CONTENTS 3. DESCRIPTION 4. OPERATIONS 5. STRUCTURE 6. N-BUS NETWORK AND CONTROLLERS 7 7. INSTALLATION 8. CHARGING CURVE SELECTION 9. LED INDICATORS 10. FUSE REPLACEMENT 11. TECHNICAL FEATURES 12. WIRING DIAGRAMS SAMPLES 13. F.A.Q. 14.
-
Page 4: Safety Instructions
• The information contained in this manual may be changed without notice. NDS Energy s.r.l. reserves the right to make changes and improvements to the product at any time without notice and without... -
Page 5: Package Contents
obligation to apply these changes to the devices previously distributed. • The images of the products are purely indicative and may therefore not be fully representative of the characteristics of the product, differing in colour, size or accessories 2. PACKAGE CONTENTS Check the contents of the package: •... -
Page 6: Main Features
The touch screen display DT002 (optional) with new management software, allows you to view the charge information and set the various settings with the new communication protocol NDS. MAIN FEATURES • MPPT technology (+25% performances) • Charging curve selection: GEL, AGM, Wet, and LiFePO •... - Page 7 4.OPERATIONS SUNCONTROL2 charges up to two batteries: one service battery (B1) and one starter battery (B2), with priority charging to the service battery. SUNCONTROL2 will start charging the batteries if the following conditions are satisfied: 1. The connected Solar Panels deliver a voltage 1V higher than the voltage of the batteries to be recharged.
- Page 8 5. STRUCTURE FRONTAL CONNECTION 3 4 5 6 7 8 9 10 Fig.2 CONNECTION FUNCTION Display Bus DTB01 connection N-BUS network connection Solar panel negative connection Battery negative connection Solar panel positive connection 1 Solar panel positive connection 2 Leisure battery positive connection (B1) Starter battery positive connection (B2) Dip Switch - Charging curve selection Temperature probe connection...
- Page 9 6. N-BUS NETWORK AND CONTROLLERS N-BUS devices can be networked for optimal operation of the entire NDS energy system. To start setting up your new energy system, simply connect two or more N-BUS devices with the optional data cable, available in va ri o u s l e n g t h s ( B C03 M , B C0 6 M o r B C 1 0 M ) .
-
Page 10: Installation
7. INSTALLATION Place the SUNCONTROL2 on the chosen surface and secure the entire device using the fixing holes integrated in the shell with the supplied screws or equivalent (Fig.1). Fig. 1 All electrical and setup connections are on the front, it is not necessary to disassemble the plastic shells, except for the protection fuse replacement. -
Page 11: Basic Connection
BASIC CONNECTION STARTER BATTERY N-BUS CHAIN LEISURE BATTERY SOLAR PANELS... - Page 12 8. CHARGING CURVE SELECTION The Dip Switches, located next to the power connections, allow you to select the proper charging curve for the installed services battery, use the table to set the correct curve for your battery. The Dip Switches affect the B1 charging curve (leisure battery), not B2 (starter battery).
-
Page 13: Charging Curve
NOTE • The default setting is Curve 1 for GEL batteries - desulphation OFF. • In order to safeguard the battery, with an ambient temperature below 0°C, the LiFePO charge curve will not be started. CHARGING CURVE B1 - PHASE DISCUSSION With voltage between 8V and 10.5V, a current between 1A and 2A will be delivered, every 5 PULSE CHARGE... - Page 14 With battery voltage equal to Vmax (Maximum voltage of the selected charging curve), will be delivered a costant voltage equal to the ABSORPTION selected curve Vmax. The delivered current will CHARGE decrease as the battery state of charge increases till about 3A. Timeout 6 hours. An approximately 2A constant current will be delivered, allowing the battery voltage to rise independently to the maximum value of 15.8V.
-
Page 15: Led Indicators
9. LED INDICATORS The two LEDs on the upper part of the device, marked B1 and B2, allow you to quickly understand the charge status of the connected battery. Each LED can emit different colors referred to a precise state of charge of the battery, the table below explains the relationship between the LED color and the battery state of charge. -
Page 16: Fuse Replacement
10.FUSE REPLACEMENT If the protective fuse on the SUNCONTROL2 electronic board is damaged, it can be replaced with the original replacement fuse (supplied) or with a common 25A (for SCE320) or 30A (for SCE360) automotive fuse. FUSE: • 25A (SCE320) •... -
Page 17: Technical Features
11. TECHNICAL FEATURES DESCRIPTION SCE320 SCE360 INPUTS Maximum input Voltage solar 29,5V 29,5V panels (open circuit voltage) Solar Panel input Connections Solar Panel input Maximum 50W - 160W 50W - 200W Power Suppoerted OUTPUT B1 Battery nominal voltage Charging current maximum output Minumum battery capacity 60Ah... - Page 18 OUTPUT B2 Battery nominal voltage Charging current maximum output Minumum battery capacity 15Ah/10Ah 15Ah/10Ah required Lead-acid/LiFePO Minimum/maximum voltage 8V - 12,5V 8V - 12,5V starting charge Maximum charging voltage 14,4V 14,4V Temperature regulated fan speed Maximum charging timeout GENERAL Charging algorithm OPTICHARGE Stand-by self-consumption <2mA <2mA...
- Page 19 12.WIRING DIAGRAMS SAMPLES Simple connection, with solar panels, bus display (optional). solar solar panel panel display N-BUS CHAIN sun control 2 alternator 34 5 6 7 8 Max.6 temperature probe (optional) TS002 leisure leisure battery battery...
- Page 20 Connection with solar panels, bus display (optional), original control unit. solar solar panel panel alternator sun control 2 display 34 5 6 7 8 N-BUS CHAIN temperature probe (optional) TS002 125A 100A FRIDGE aC/DC 12V APPLIANCE E.G. LIGHT. WATER, PUMP...
- Page 21 Connection with solar panels, display bus (optional), original control unit and TEMPRA lithium battery. solar solar panel panel alternator sun control 2 display 34 5 6 7 8 125A FRIDGE 100A aC/DC 12V APPLIANCE E.G. LIGHT. WATER, PUMP control unit...
- Page 22 13.F.A.Q. • About solar panels, what’s the maximum voltage supported by SUNCONTROL2? Maximum supported voltage is 29,5V. • Is it possible to connect one 200W solar panel only, on a single SUNCONTROL2 connection? It’s possible to connect just one bigger solar panel (200W), for example on SUNCONTROL2 Pin N°5, but...
- Page 23 DECLARATION OF EU CONFORMITY - SUN CONTROL 2 Company: NDS Energy s.r.l. Address: via Giovanni Pascoli, 96/98 65010 - Cappelle sul Tavo (PE) Italy Declares under its own responsibility that the product: Commercial Name: SUN CONTROL2 Models: SCE320, SCE360, SC320M, SC350M...
- Page 24 compliance for radiated emissions and electromagnetic immunity on vehicles is demonstrated in compliance with the directive: ✓ ECE R10 compliance with the restriction on the use of hazardous substances is demonstrated by compliance with directive 2011/65/EU (ROHS2). Cappelle sul Tavo, Administrator and legal representative 14/06/2022...
-
Page 25: Warranty
14.WARRANTY... - Page 28 Tutta l’energia che ti serve all the energy you need 0078_MANS_SUN2_SCE_GB00 NDS ENERGY S.R.L. Via G. Pascoli, 96/98 65010 - Cappelle sul Tavo (Pe) Italy Tel.:+39 085 4470396 Web: www.ndsenergy.it Email: customer@ndsenergy.it LIKE US: facebook.com/ndsenergysrl...
