SINGLE READER
EXPANSION
MODULE
The ADC-ACX1 Single Reader Expansion Module provides a
solution for interfacing to a one Wiegand reader and door
hardware. It also provides LED control and buzzer control.
Two Form-C contact relay outputs may be used to control
locking hardware. The two inputs provided can be used for
monitoring door contacts and request to exit devices.
Input circuits can be configured as unsupervised or supervised
using end of line resistors. Communication to the Alarm.com
Door Controller is accomplished using a 2-wire RS-485
interface. The ADC-ACX1 requires 12 to 24V DC for power.

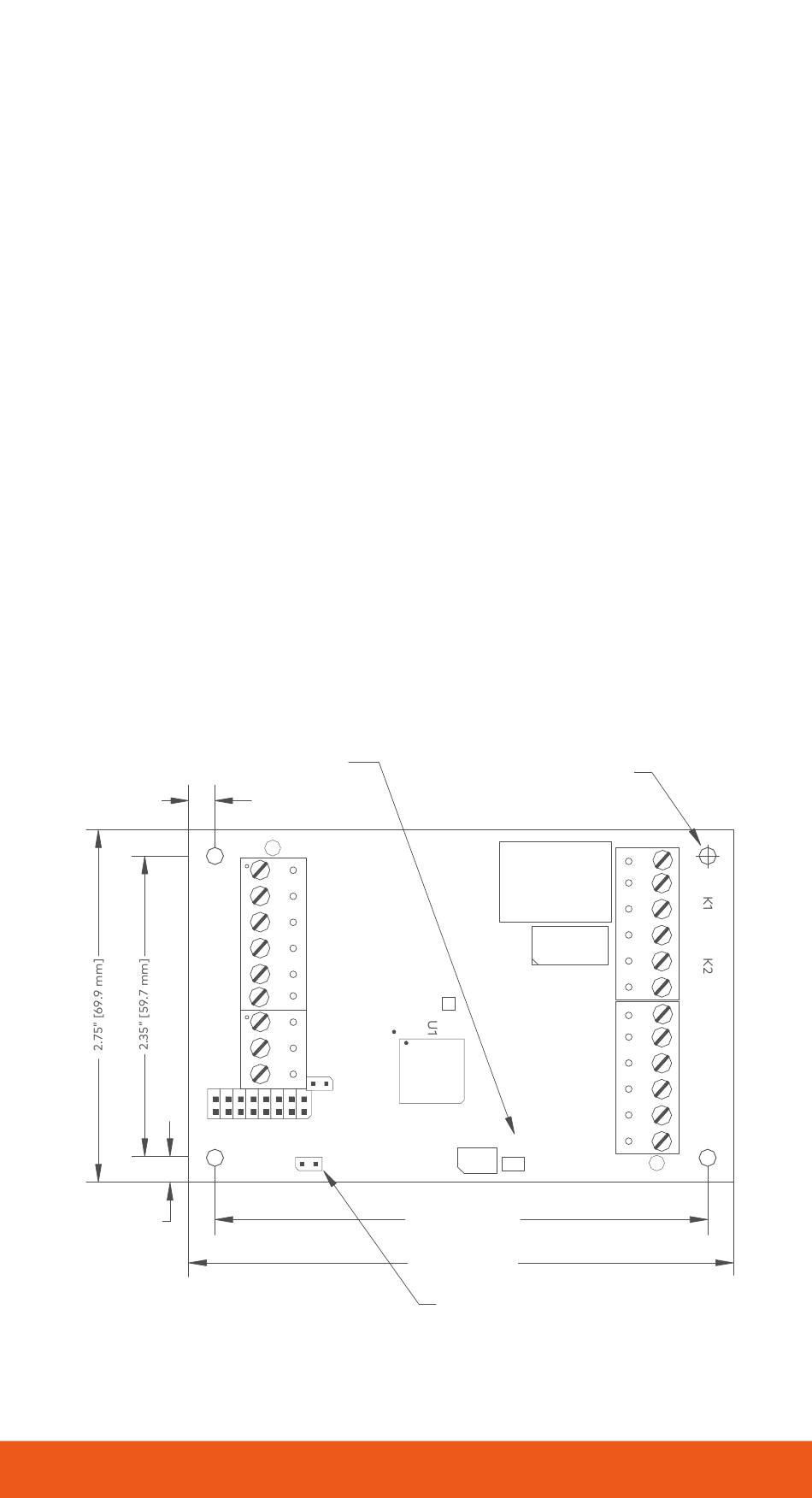

0.20" [5.1 mm]
GND
BZR
LED
CLR
D1
DAT
D0
VO
TR+
TR-
GND
TB1
12
1 2 3 4 5 6 7 8
0.20" [5.1 mm]
STATUS LEDs
TB4
14
13
Ø0.156" [Ø4.0 mm]
K1
K2
15
B A
3.85" [97.8 mm]
4.25" [108 mm]
TAMPER INPUT
NORMALLY OPEN SWITCH
TB3
NC
C
NO
NO
NC
C
VIN
GMD
12
12
11
11
TB2
