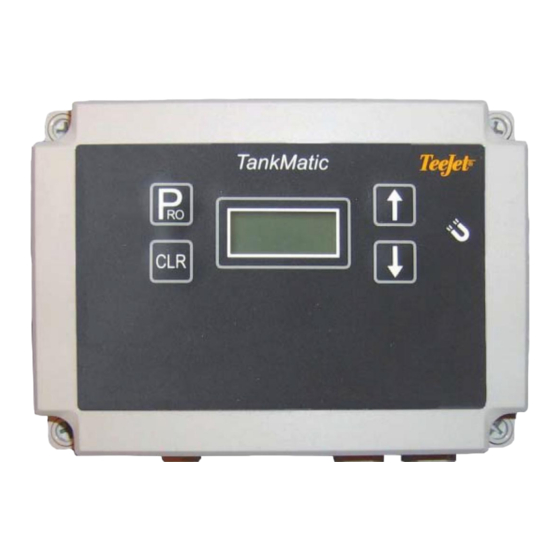

- Page 1 User Manual Tankmatic Mølhavevej 2 9440 Aabybro Denmark Tel. +45 9696 2500 Fax. +45 9696 2501 www.teejet.com 020-032-UK 25/07/2012 Page 1 of 6...
- Page 2 1. Characteristics - Simple and accurate electronic gauge - Measurement by highly sensitive pressure sensor - Technology based on an experience of over 15 years - Automatic calibration for all forms of tanks - High accuracy: 100 calibration points and 1000 points of measurement - Accurate measurement of tank contents regardless of the type of filler - Auto fills with an optional fill valve - Overfill Protection...
- Page 3 3. Connections 020-032-UK 25/07/2012 Page 3 of 6...
- Page 4 4. General Function Description The unit will power on and show the first working screen Tank 1. Power on 1 525 l t The unit will power off and 2. Power off 5. Functionality Function Display Comments Possible actions Main screen Actual tank content Tank...
- Page 5 6. Program Function Display Possible actions Comments Access / Exit All settings and calibration Push Pro for 3 seconds will be stored in non volatile memory only when exiting the program by pushing Pro for 3 seconds Do not power off the unit before doing this or all values will be lost.
- Page 6 Maximum Tank Ad m axi to modify value Calibration This is the sensor value when tank is full 976 adc (see previous step) CLR to calibrate automatically, the new measured value is displayed. Pro to validate and go to next screen Tank shape Shape calibration...
