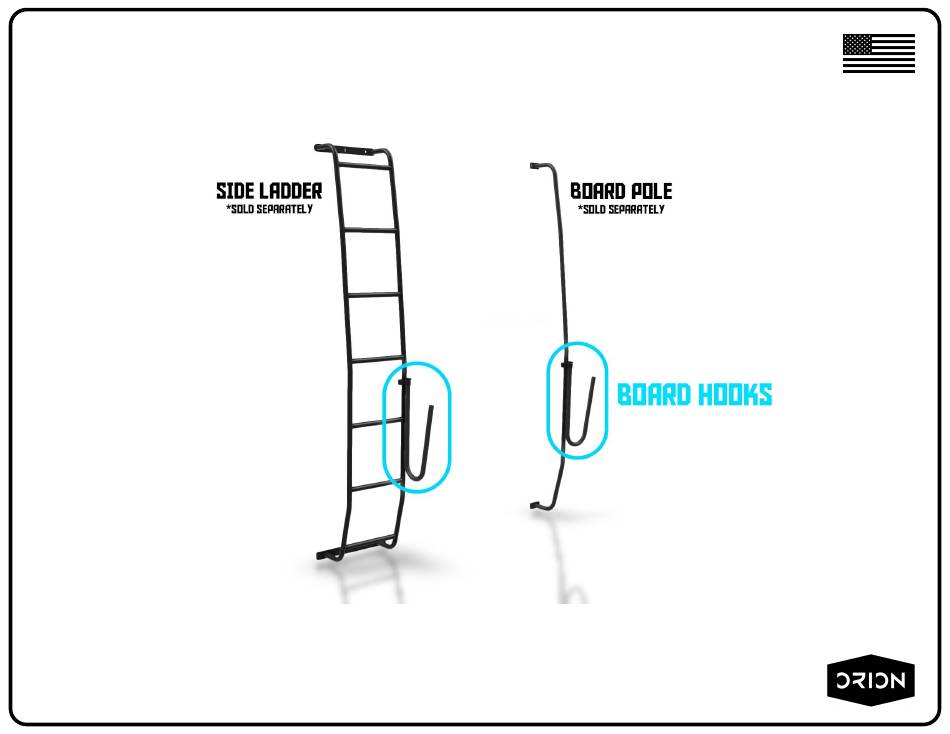

- Page 1 ORION VAN GEAR Proudly Made in Oregon Surf/SUP Board Hooks INSTALLATION GUIDE support@orionvangear.com - (971) 267-2552...
- Page 2 INSTRUCTIONS AND WARNINGS BEFORE BEGINNING THE INSTALLATION. THE RESPONSIBILITY TO CORRECTLY INSTALL ORION VAN GEAR PRODUCTS IS YOURS AND MUST BE TAKEN SERIOUSLY. ORION VAN GEAR LLC WILL NOT BE HELD LIABLE OR RESPONSIBLE FOR DAMAGES OR PERSONAL INJURIES RESULTING FROM THE USE OF OUR PRODUCTS.
- Page 3 MATERIALS REQUIRED REQUIRED ● 1x 3/16”Allen Key ● 1x 1 oz Anti-seize Lubricant [RECOMMENDED ON ALL NYLON LOCKNUT JOINTS] RECOMMENDED ● Extra Rags (to keep things clean) *Included hardware shown on next page...
- Page 4 INCLUDED HARDWARE Hooks 2x SOCKET-HEAD SCREWS HEX NYLON NUT Hand Screw 2x 3/4” BL Hook Clamp 2x Back Clamp 2x Cotter Pin 2x Silver...

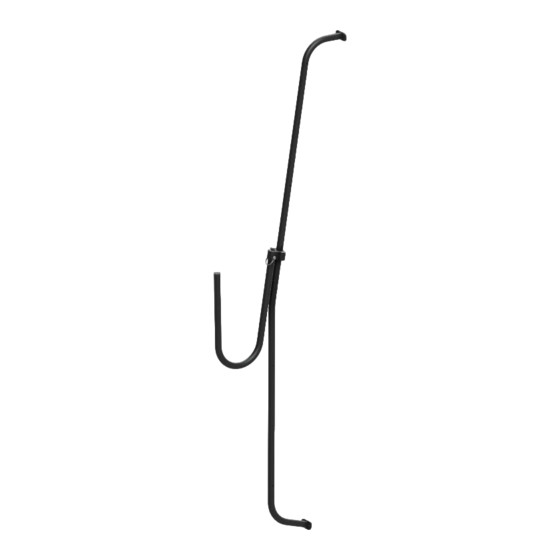

- Page 5 STEP 1 1A - Determine the location and height on your Ladder and/or Board Poles where you want the hooks to mount. - Secure 1x preassembled Hook/Front clamp assembly and 1x Back Clamp to the ladder/board pole at height determined in 1A using 2x 3/4" SCREWS & 2x NYLON NUTS. {Apply Anti Seize) 1C - Repeat above steps for additional hooks BL NYLON NUT INSERTS THROUGH BACK CLAMP...
- Page 6 STEP 2 2A- Hooks are designed to locked into place with included cotter pins at 3 different possible 90 degree orientations, either perpendicular to the van or parallel (right or left facing) to the van. To change orientation, remove the cotter pin, loosen the hand screw* and rotate, then secure cotter pin and tighten hand screw*.
- Page 7 OR REPLACEMENT PARTS CONTACT US: support@orionvangear.com (971) 267-2552 STOKED WITH YOUR NEW ORION PRODUCTS? Help us spread the word about by tagging us in your photos and videos (@OrionVanGear) on Instagram, Facebook, and TikTok! We can’t wait to see your adventures and hear your stories! instagram.com/orionvangear...
