TILLER OPERATION

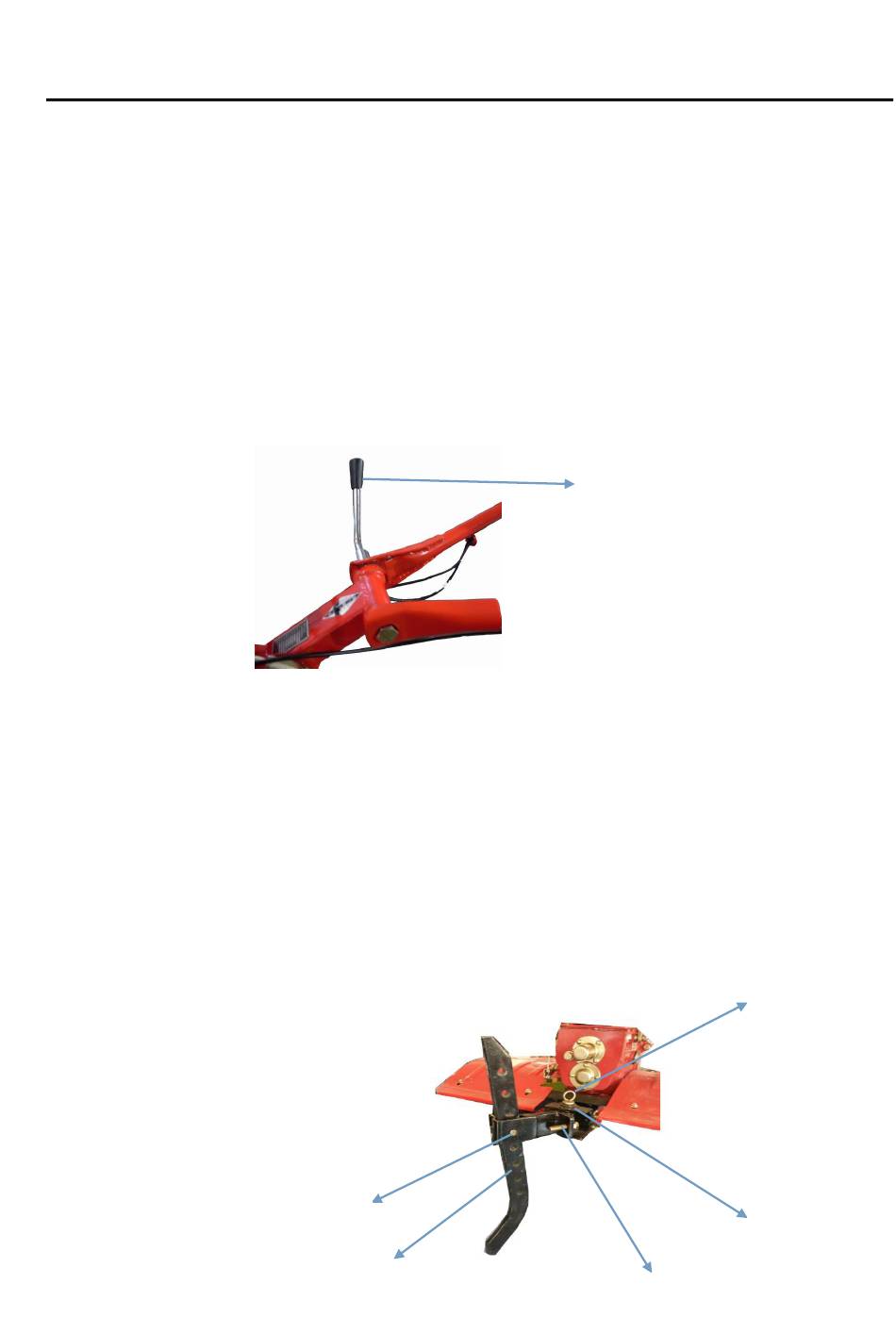

1. Handlebar height adjustment
CAUTION:
Before adjusting the handlebar place the tiller on firm level ground to
prevent the handle from collapsing accidentally.
To adjust the handlebar height, loosen the adjuster select the appropriate holes and
tighten the adjuster.
(1) ADJUSTER
2. Tilling depth adjustment
Install the hitch attachment in the hitch box with a hitch pin.
The tilling depth adjustment can be made as follows:
Remove the pin and lock pin loosen the bolt securing the drag bar and sliding the drag
bar up or down as necessary.
(1) HITCH BOX
(2) HITCH PIN
(3) LOCK PIN
(4) DRAG BAR
(5) PIN
(5)
(4)
(1)
(2)
(1)
17
