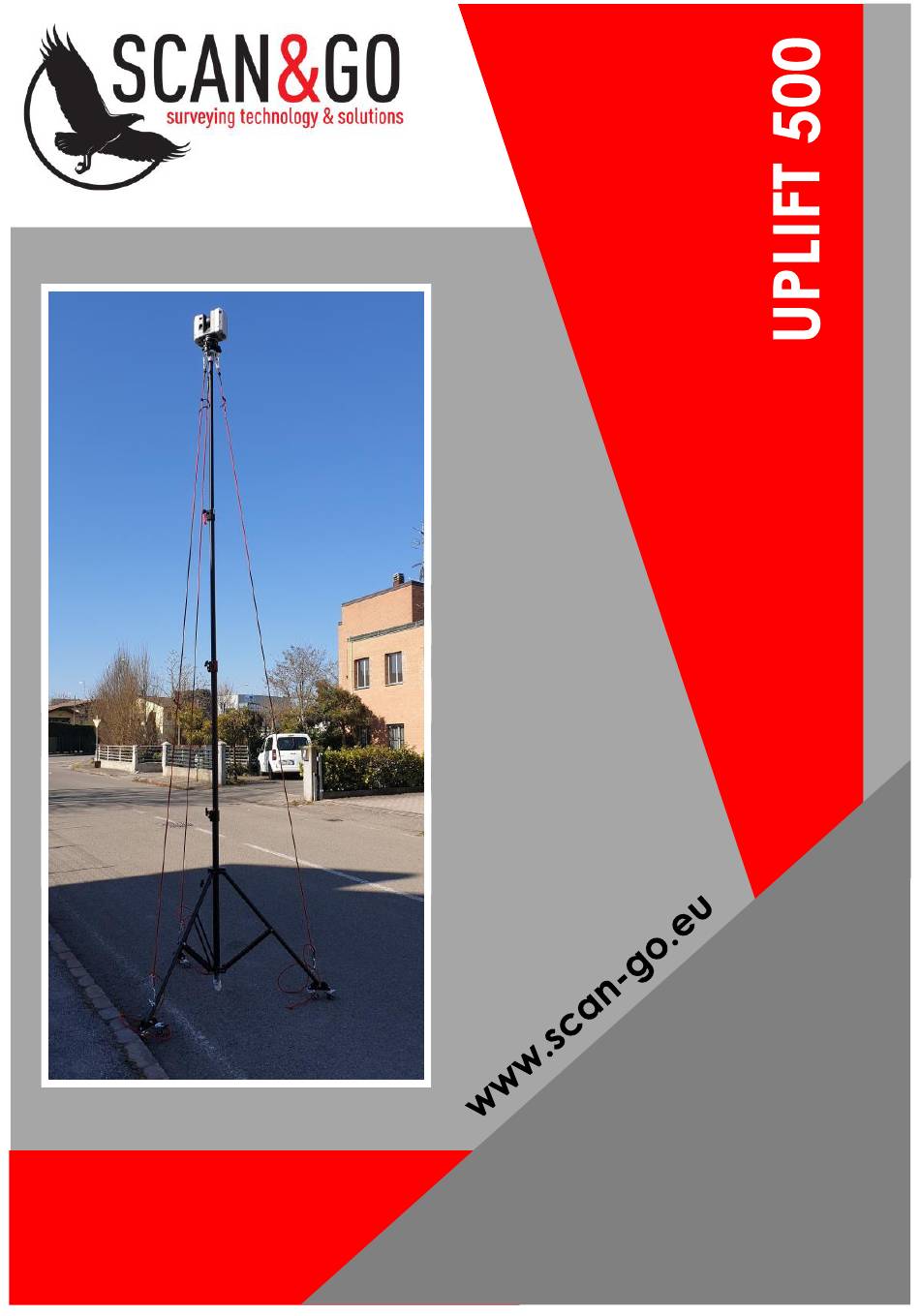

- Page 1 SCAN&GO srl Via della Tecnica 34 A/B - 41051 Castelnuovo Rangone (MO) - Italy USER MANUAL Cell. +39 3924627285 info@scan-go.eu July 2022...
- Page 2 Uplift500 STEEL TELESCOPIC LIFTER UPLIFT500 is a telescopic lifter made in painted steel, with manual lifter composed of 4 sections. The best solution for using the laser scanner at maximum height of 5.00 mt. Combines stability with great sturdiness. All metallic components guarantee maximum durability and strength It is equipped with: double safety locking system by means of safety-bolt pressure knob...
- Page 3 DETAILS AND ACCESSORIES 5/8’’ STANDARD CONNECTION COLUMN DOUBLE SAFETY LOCKING SYSTEM DOUBLE COLUMN BLOCK 1 TELESCOPIC LEG RUBBER FEET BRAKING WHEELS WIND BRACING KIT ACCESSORIES INCLUDED SOFT BAG FOR ACCESSORIES WIND BRACING KIT BRAKING WHEELS RUBBER FEET BUBBLE LEVEL ADAPTERS TO BE ORDERED SEPARATELY ADP38 ADAPTER 3/8”...
- Page 4 INSTALLATION AND USE INSTRUCTIONS HEELS INSTALLATION OPENING Lower the crossbar to the maxi- mum opening of the legs. Place the elevator on a solid surface and loosen the locking Use the telescopic leg to level screws the elevator Connect the wind bracing ropes Instal the tool to the top-head and the legs of tripod...
- Page 5 INSTALLATION AND USE INSTRUCTIONS Loosen the thumb-screw Lift the extension up to Insert the pin into the ho- of first extension the stop hole le and tighten the knob Carry out the same operation for all the other extensions COMPLETE WITH THE TENSIONING OF THE BRACES BEING CAREFUL NOT TO OVERDO WITH THE TENSION FORCE PAY EXTREME ATTENTION TO SUSPENDED...
- Page 6 REQUIREMENTS SAFETY MEASURES IT IS COMPULSORY TO SECURE THE ELEVATOR AGAINST SUDDEN WIND ACTIONS, IF USED OUTDOORS. POSSIBLY, WEIGHTS CAN BE USED TO BE POSITIONED ON THE FEET OF THE ELEVATOR. DO NOT PLACE STAIRS ON THE ELEVATOR. DO NOT STAND UNDER THE ELEVATOR WHEN THE LOAD IS LIFTED. DO NOT MOVE THE LIFT WHEN IT IS FULLY LIFTED.
- Page 7 REQUIREMENTS The use in the presence of functional anomalies and discrepancies in the terms of use and safety instructions described in this manual. If something happens, request and wait for assistance from the personnel. • The instructions, drawings and documentation contained in this document are of confidential technical nature, of pro- perty of the manufacturer and may not be reproduced in any manner, either wholly, or in part.
