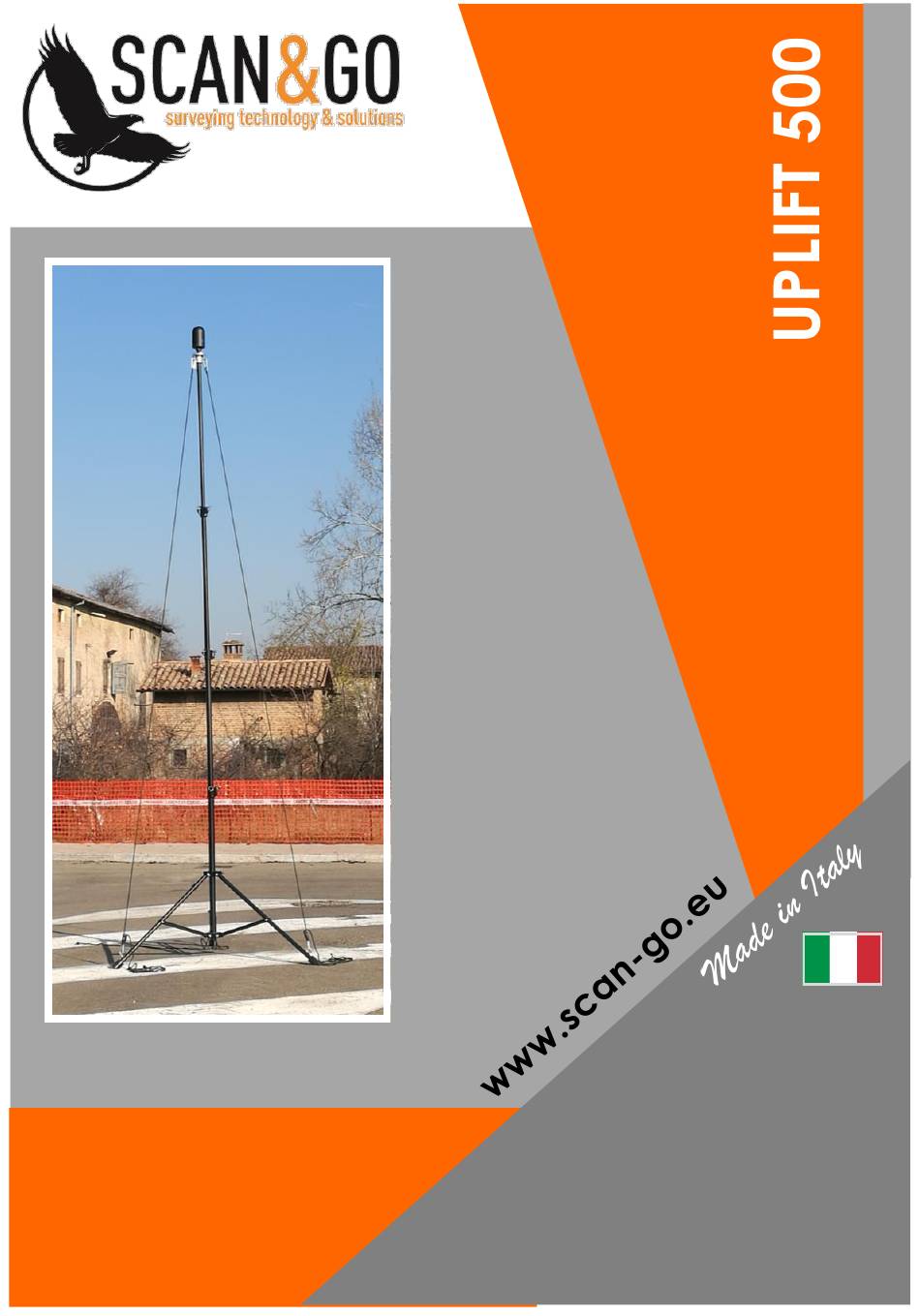

  • Page 1 USE AND SCAN&GO srl MAINTENANCE Via della Tecnica 34 A/B - 41051 Castelnuovo Rangone (MO) - Italy HANDBOOK Telefono +39 059798545 info@scan-go.eu January 2018...
  • Page 2 Uplift500 STEEL TELESCOPIC LIFTER UPLIFT500 is a telescopic lifter made in painted steel, with manual lifter composed of 4 sections. The best solution for using the laser scanner at a great height, maximum height is 5.00 mt. Combines stability with great sturdiness. All metallic components (articulated parts, pressure knobs, leg braces, etc.) guarantee maximum durability and strength.
  • Page 3 DETAILS AND ACCESSORIES 5/8’’ CONNECTION COLUMN DOUBLE SAFETY LOCKING SYSTEM WITH SAFETY-BOLT AND PRESSURE KNOB DOUBLE REINFORCING BRACES ADJUSTABLE LEGS RUBBER FEET COVER BRAKING WHEELS (option) ACCESSORIES TRILOCK WINDBRACING KIT ADAPTER 3/8” SOFT BAG FOR THE ACCESSORIES BRAKING WHEELS Item to be ordered separately Item included in the order...
  • Page 4 INSTRUCTIONS FOR INSTALLATION AND USE Breaking Wheels installation Remove the rubber feet cover and screw the wheels 1° STEP UPLIFT500 OPENING Place the lifter on a solid and perfectly plane surface and proceed as follows: Loosen the screw (A) + (B) Bring down the gimbal until the connecting rods reach the desired position and tighten the screw.
  • Page 5 2° STEP: To lift the UPLIFT500 proceed as follows: Loosen the thumb-screw of Start lifting the fist pole until is Insert the safety pin into the hole, first extension (A) completely out lock the thumb-screw(A) Continue in the same way for all extensions to the complete opening of the pole Complete the procedure by pulling the wind bracing ropes being careful not to overdo...
  • Page 6 SUMMARY TECHNICAL DATA Height when closed 178 cm   Maximum Height 500 cm  Basic diameter 170 cm  Section  Maximum load 60 kg  Weight 16 kg  Dimension when closed 178x20x20 cm REQUIREMENTS SAFETY MEASURES 1) The lifter must be placed in a solid and plane surface. 2) It is compulsory to secure the equipment with the provided straps that must be hooked to cement blocks or eventually to unmovable structures, if it is used in open spaces so that it is possible to protect it against the wind.
  • Page 7 The use in the presence of functional anomalies and discrepancies in the terms of use and safety instructions described in this manual. If something happens, request and wait for assistance from the personnel.  The instructions, drawings and documentation contained in this document are of confidential technical nature, of property of the manufacturer and may not be reproduced in any manner, either wholly, or in part.
