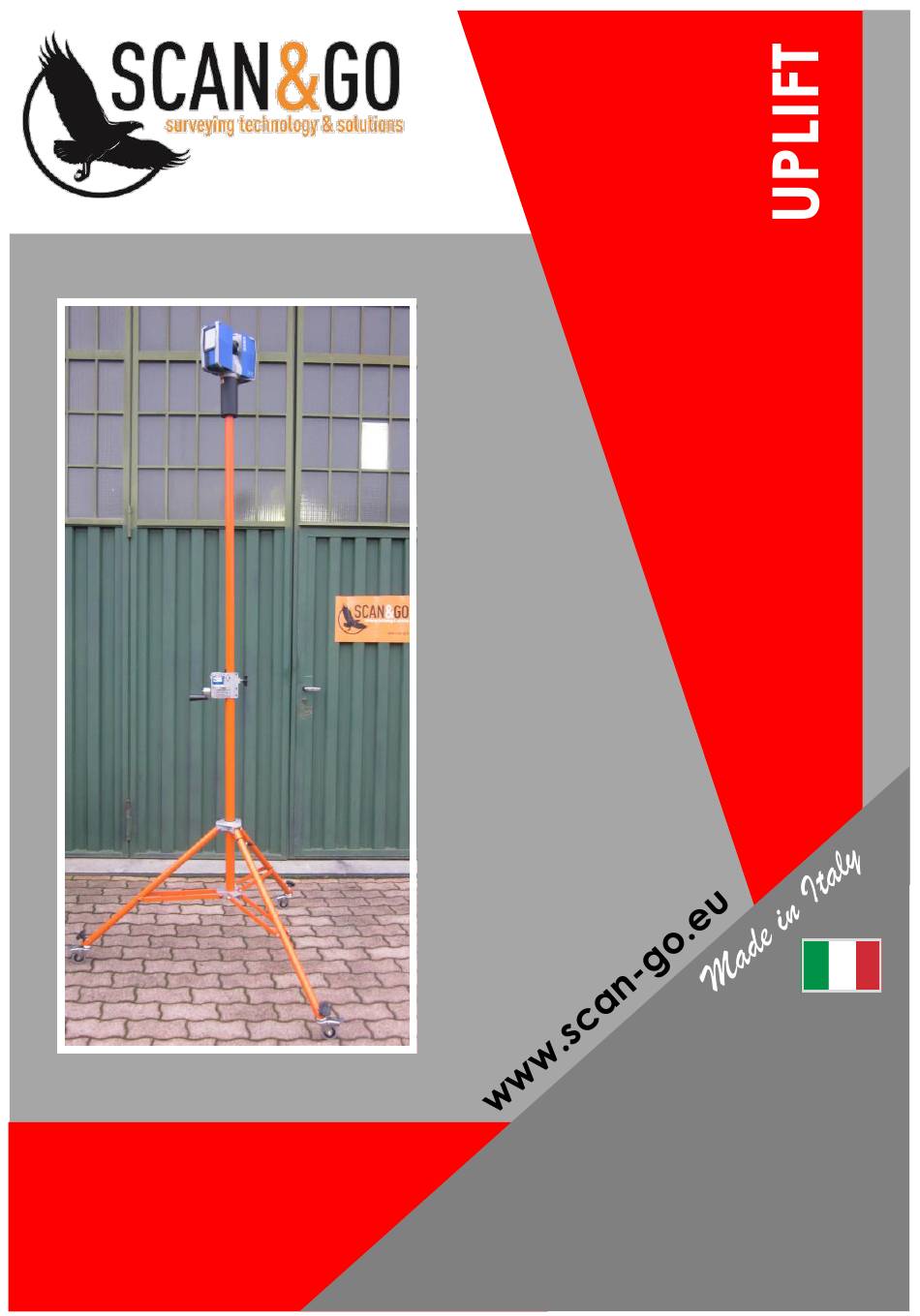

- Page 1 SCAN&GO srl Via della Tecnica 34 A/B - 41051 USER MANUAL Castelnuovo Rangone (MO) - Italy Cell. +39 3924627285 info@scan-go.eu January 2018...
- Page 3 TELESCOPIC LIFTER WITH MECHANICAL WINCH UPLIFT is a telescopic lifter made in painted steel, with mechanical lifter composed of 2 extension (+ 1 additional extension of 1 mt. as option). The maximum height is 2.20 mt., and reaches 3.20 mt with the additional element.
- Page 4 DETAILS AND ACCESSORIES 5/8’’ CONNECTION COLUMN MECHANICAL WINCH SPHERICAL BUBBLE ADJUSTABLE LEGS ROUND PLATES FITTED WITH RUBBER FEET BREAKING WHEELS 1 METER ADDITIONAL EXTENSION ACCESSORIES TRILOCK BREAKING WHEELS and ROUND PLATES FITTED WITH RUBBER FEET ROUND PLATE SOFT BAG FOR THE TRANSPORT 1 METER EXTENSION Item to be ordered separately Item included in the offer...
- Page 5 INSTRUCTIONS FOR INSTALLATION AND USE 1° STEP Place the lifter on a solid and perfectly plane surface and proceed as follows: Decide whether to use the Round Plates or the Breaking Wheels To install the Breaking Wheels screw the knob. To install the Round Plates pull out the locking screw and insert the plate.
- Page 6 2° STEP: To lift the UPLIFT proceed as follows: Loosen the thumb-screw (B) Start lifting the load, by manually activating the winch handle clockwise, until the wanted height is reached. Lock the thumb-screw (B) 3° STEP: To descent the UPLIFT proceed as follows:...
- Page 7 To close the UPLIFT proceed as follows: Loosen the screw (A) Close the connecting rods, turn and tighten the thumb- screw (A) to close the UPLIFT UPLIFT WITH EXTENSION Extension installation: Screw the extension on the top of the UPLIFT...
-
Page 8: Safety Measures
It is therefore recommended to limit, as far as possible, the influence of the above risks, both for the operational staff and for other persons, in the following way: * prohibit the transit and parking space surrounding the Uplift * maintain the efficiency of the equipment Prohibited the use of the platform in the installer mode different from the original configuration and delivery processes other than those provided by the manufacturer. - Page 9 The use in the presence of functional anomalies and discrepancies in the terms of use and safety instructions described in this manual. If something happens, request and wait for assistance from the personnel. The instructions, drawings and documentation contained in this document are of confidential technical nature, of property of the manufacturer and may not be reproduced in any manner, either wholly, or in part.
-
Page 10: Warranty
The manufacturer is deemed non-responsible in the case of: inappropriate use of the UPLIFT use of the equipment, against to any other applicable national regulations; serious lack of attention in the maintenance;... - Page 11 Notes Notes Notes Notes...
