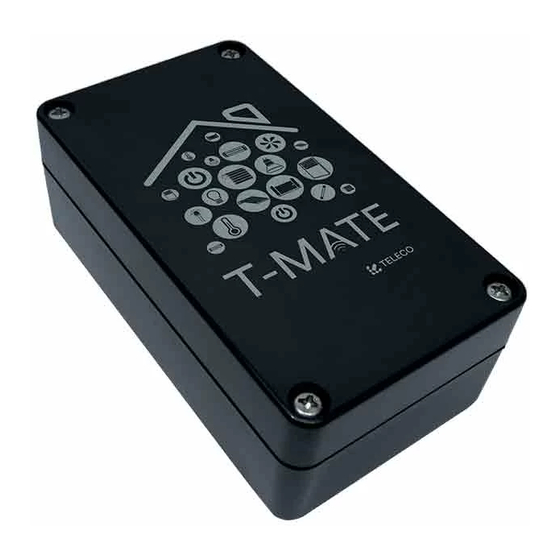

T-MATE: 5VDC BLUETOOTH INTERFACE, PROGRAMMABLE BY MEANS OF AN APP, TO CONTROL ANY
TELECO PRODUCT.
Product code
TMATExxxAL
TMATExxxBL
Characteristics
•
Available in both 868.3MHz and 916MHz frequencies.
•
Easy access via Bluetooth from any compatible device.
•
Up to 50 programmable device commands.
•
Possibility to create scenarios.
•
Weekly timer to send commands at a specific date and time.
T-MATE App
DIMENSIONS AND CONNECTIONS
65 mm
T-MATEXXXAL-BL
This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights
TELECO AUTOMATION SRL
Via dell'Artigianato, 16 - 31014 Colle Umberto (TV) ITALY
TELEPHONE: +39.0438.388511 - www.telecoautomation.com
(power supply included)
Bluetooth
115 mm
25 mm
15 mm
868.3MHz
916MHz
868.3MHz
916MHz
* The Blue Series receivers are bidirectional. They can receive
and execute commands and send the status back to T-Mate
Thermoplastic ABS
Not suitable for direct UV exposure
The product must be fixed vertically.
The product guarantees IP54 rating
if properly assembled.
DOC.: T770.06_EN
*
DATE: 16/02/22
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teleco TMATE AL Series
Summary of Contents for Teleco TMATE AL Series
- Page 1 65 mm 25 mm The product must be fixed vertically. The product guarantees IP54 rating if properly assembled. 15 mm DATE: 16/02/22 T-MATEXXXAL-BL DOC.: T770.06_EN This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights...
- Page 2 INSTALLATION Download the app T-Mate from App Store or Google Play. Check the compatibility with your device first. Once downloaded, it is possible to use it in DEMO mode, even without any TMATE paired. Pairing Activate the Bluetooth communication on your device and power TMATExxxAL/BL ON. Launch the T-Mate app.
- Page 3 TIMERS Set dates General switch for all the set timers Tap the O p e n S e t u p m e n u ► command Devicename ► Schedule button to set to set system date/time. It’s the timers possible to set 2 groups of days: weekdays and weekend.
- Page 4 ADVANCED SCENARIO PROGRAMMING Once the scenario has been completed, it’s possible to assign it to a transmitter button or to a wired N.O. button connected to the input 4-5. Enable/disable the scenario recall on the wired input. When transmitters or Tap to delete all the associated transmitter buttons.
- Page 5 MEMORIZATION 14.2 MEMORIZATION For its proper functioning the T-Mate transmitter must be memorized in the controlled receiver. Refer to instruction manual of the receiver for the procedure of memorization. T-Mate transmitter Daisy transmitter REMOTE MEMORIZATION OF OTHER RADIO CODES FROM STANDARD TRANSMITTER 14.3 REMOTE MEMORIZATION OF OTHER RADIO CODES FROM STANDARD TRANSMITTER Note: The button P3 is located inside the standard transmitter.
- Page 6 SCENARIOS Home page ► Scenarios ► select scenario Execute the scenario Status of the single receivers associated (if part of Blue Series) TECHNICAL SPECIFICATION Power supply 5 Vdc 868.3 MHz (TMATE868xL) Transmission frequency 916 MHz (TMATE916xL) Bluetooth module Bluetooth 4.1 (BLE) at 2.4GHz Operating temperature range -20°C ÷...
- Page 7 If you are having problems with its range of action, fix the device up high. The manufacturer, Teleco Automation s.r.l, declares that the type of radio equipment is compliant with Directive 2014/53/EU. The full text of the EU compliance declaration is available at the following Internet address: www.telecoautomation.com/ce.
- Page 8 TELECO AUTOMATION BENELUX SPRL TELECO AUTOMATION OCEANIA PTY LTD TELECO AUTOMATION IBÉRICA S.L. BELGIUM AUSTRALIA SPAIN Tel. +32.67561967 Tel. +61.(07)5502.7801 Tel. +34.966.16.82.24 info@telecoautomation.be info@telecoautomation.com.au jv.lopez@telecoautomation.com This document is the property of Teleco Automation Srl, which reserves all reproduction and copyrights...
