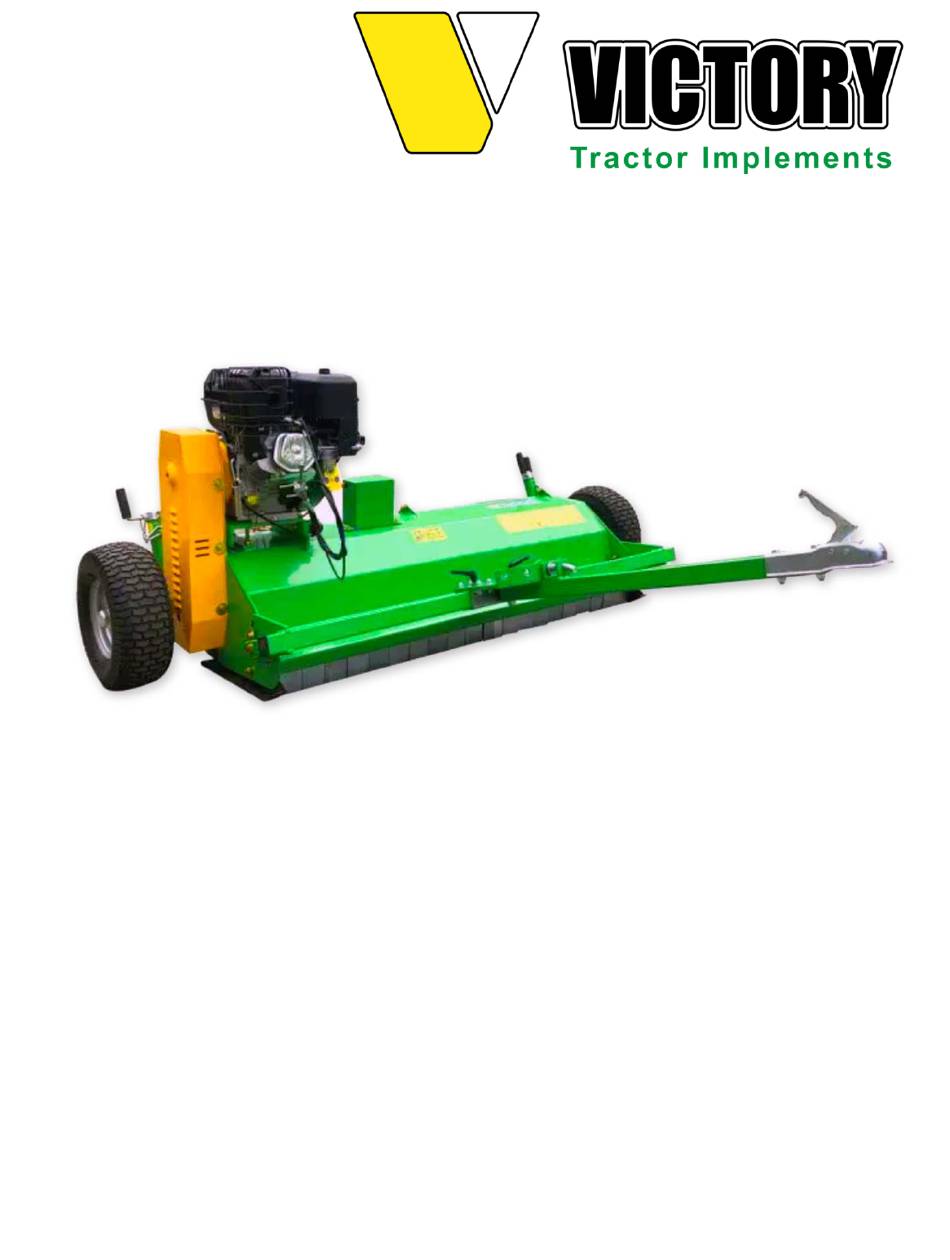

- Page 1 Operator's Manual MATV SERIES 48”- 60” Flail Mower With Gasoline Powered Motor VERSION 2. - EN-US 2022...
- Page 2 No part of this documentation may be reproduced in any form without the written permission of Victory Tractor Implements. History of changes: Operator’s Manual Date: Chapters: Description: Version: V1.0 First edition. V2.0 August 2022 Editorial update. Layout update. Operator’s Manual Victory MATV Series - Page 2 of 66 - Version 2.0...
-
Page 3: Table Of Contents
Safety for Starting and Stopping ..................22 4.12 Calamities ........................... 22 ASSEMBLING and OPERATION ....................23 Important Assembly Notes: ....................23 Assembling the MATV Flail Mower ..................24 Operator’s Manual Victory MATV Series - Page 3 of 66 - Version 2.0... - Page 4 Decommissioning and Environment ................... 44 7.8.1 Decommissioning Requirements ................44 7.8.2 Environment ........................ 44 List of Consumables ......................44 7.10 Spare Parts And Wearing Parts ..................45 Operator’s Manual Victory MATV Series - Page 4 of 66 - Version 2.0...
- Page 5 Briggs & Stratton Engine ....................53 APPENDIX ..........................54 10.1 General troubleshooting list for gasoline engines ............. 54 Operator’s manual ..............55 ® 10.2 Copy of Briggs & Stratton Operator’s Manual Victory MATV Series - Page 5 of 66 - Version 2.0...
-
Page 6: Preface
PREFACE Identification ◼ The Victory MATV is a Gasoline powered Flail mower with adjustable side shift, suitable for several types of ATV vehicles equipped with 2” car hook. No tractor with PTO is needed. ◼ The mower is a robust, compact engine-driven Flail mower with replaceable flails and a hinged rear gate. -
Page 7: Victory Tractor Implements Warranty
This Warranty does not apply to any part or product that, in Victory’s judgment shall have been misused or damaged by an accident or lack of regular maintenance or care or which has been repaired or altered in a way that adversely affects its performance or reliability, or which has been used for a purpose for which the product is not designed. -
Page 8: Warranty Provisions
Warranty Provisions Victory Tractor Implements guarantees the proper functioning of the provided equipment. However, Victory is not responsible for unsafe situations, accidents, or damage, which are the result of: ◼ ignoring warnings and regulations as stated on the machine or in this Operator's manual;... -
Page 9: Introduction
INTRODUCTION CONGRATULATIONS! You have purchased the Victory MATV gasoline-powered Flail mower with a manually adjustable side shift drawbar and car hook. It is the strongest, safest, and most compact in its category. You can use the mower with a car, SUV, Pickup or Quad / ATV / UTV, or lawn tractor. -
Page 10: Manual Update
For Product management is essential: - Chapter 9; Specifications. Owner Assistance If customer service or spare parts are required, please contact Victory Tractor Implements at (562) 534-8182. Victory has trained technicians, spare parts, and equipment to service the device. The parts on your machine are specially designed; replace these parts always with genuine Victory parts. -
Page 11: Safety Warning Messages In This Manual
◼ Always adhere to the recommendations and warnings in this manual. They are the recommendations of Victory Tractor Implements and several essential components manufacturers. If you ignore these recommendations, there will be no warranty. ◼ Any warranty claim will be rejected if you exceed the maintenance intervals for the essential machine components claim. -
Page 12: Intended Users
Steel ruler. ◼ ◼ Open-end wrench set. Allen Hex key set. ◼ ◼ Adjustable wrench. Heavy leather gloves. ◼ ◼ Torque wrench. This manual. ◼ Measuring tape. Operator’s Manual Victory MATV Series - Page 12 of 66 - Version 2.0... -
Page 13: Safety
Do not remove the brought warning stickers or markings. ◼ Always clean the machine properly and keep the workplace free of dirt and obstacles. ◼ Always ensure sufficient ambient lighting. Operate only in daylight. Operator’s Manual Victory MATV Series - Page 13 of 66 - Version 2.0... -
Page 14: Personal Protective Equipment
Always use tools that are in a good state of repair. Ensure you know how to use the tools before doing any work. ◼ ONLY use replacement parts from the same brand as the relevant part. Operator’s Manual Victory MATV Series - Page 14 of 66 - Version 2.0... -
Page 15: Additional Safety Rules For Flail Mowers
Operating the mower in temperatures below freezing is NOT recommended. Hardened steel (used on flails) can become brittle in temperatures below freezing and may result in breakage. Operator’s Manual Victory MATV Series - Page 15 of 66 - Version 2.0... -
Page 16: More Safety Tips For Safe Operation
• Use flashing warning lights if you cross public roads. ◼ The maximum transport speed for any Victory implement is twenty mph on paved surfaces and ten mph maximum on an unpaved surface. Do not exceed. Never travel at a rate that does not allow adequate control of steering and stopping. -
Page 17: Keep Riders Off Machinery
◼ For the ATV hook connection, also use a safety chain or cable. Some common areas of interference are: ◼ Drawbar linkage. ◼ Several height adjustments. Operator’s Manual Victory MATV Series - Page 17 of 66 - Version 2.0... -
Page 18: Not Allowed Use
Not Allowed Use ◼ Using the MATV for activities other than mower activities is not allowed. ◼ It is not allowed to modify the equipment in any way. Operator’s Manual Victory MATV Series - Page 18 of 66 - Version 2.0... -
Page 19: 4.10 Safety Decals And Markings On The Matv
◼ Keep all safety decals clean and legible. ◼ Replace all damaged or missing decals or labels. To order new ones, call Victory Implements. ◼ Some new equipment installed during repair requires safety labels to be affixed to the replaced component as specified. - Page 20 • Danger of cutting off body parts. WARNING Decal • Hazard of rotating components. WARNING Decal • Do not come too close to the machine. WARNING Decal • Finger Pinch Hazard; Driving belts. Operator’s Manual Victory MATV Series - Page 20 of 66 - Version 2.0...
- Page 21 WARNING Decal • Finger Pinch Hazard; turning components. WARNING Decal • Swinging devices, keep a safe distance. ATTENTION POINT Decal • Ad grease regularly to the desired nipple. Operator’s Manual Victory MATV Series - Page 21 of 66 - Version 2.0...
-
Page 22: 4.11 Safety For Starting And Stopping
Any operator matching the user description in the manual must read and understand the Operator's manual. ◼ Always know your controls and how to stop the engines in an emergency quickly. Operator’s Manual Victory MATV Series - Page 22 of 66 - Version 2.0... -
Page 23: Assembling And Operation
The highly variable offset function enables you to drive more closely to walls and fences and easily mow under bushes or solar panels. The offset values usually are only reached by tractors and their hydraulic side shift mowers. Operator’s Manual Victory MATV Series - Page 23 of 66 - Version 2.0... -
Page 24: Assembling The Matv Flail Mower
Battery housing. Height adjuster. Wheel support bracket with a wheel. Remote throttle control handle and cable. Front beam weldment. Sole plate weldment. Traction bracket. 10. Towing coupling. Operator’s Manual Victory MATV Series - Page 24 of 66 - Version 2.0... - Page 25 STEP 1: Unpack Unpack the crate and check that all parts are secure. Please contact us immediately if any part is missing or damaged at Victory Tractor Implements. Scope of delivery: ◼ ◼ Mower body with a gasoline engine and flail shaft Sole plate weldment.
- Page 26 Step 3: Install the drawbar Operator’s Manual Victory MATV Series - Page 26 of 66 - Version 2.0...
- Page 27 Tighten bolts (2) and (3) on both sides. ◼ Adjust the mowing height. If the mowing height is very high, you must re-adjust the traction bracket angle. Operator’s Manual Victory MATV Series - Page 27 of 66 - Version 2.0...
- Page 28 Remove the dipstick and check the oil level. The correct oil level is at the top of the full indicator on the dipstick. If the oil level is low, slowly add oil to the overflowing engine oil fill point. Reinstall and tighten the dipstick. Operator’s Manual Victory MATV Series - Page 28 of 66 - Version 2.0...
- Page 29 Tighten both nuts (1) & (2). ◼ Repeat this action on the other mower side. Step 8: ◼ Check that all fasteners are tightened correctly, and all securing pins are in place. Operator’s Manual Victory MATV Series - Page 29 of 66 - Version 2.0...
-
Page 30: Operation
• Always try to prevent the mowing tines from coming into contact with solid objects to reduce the possibility of property damage, serious injury, or even death. Operator’s Manual Victory MATV Series - Page 30 of 66 - Version 2.0... -
Page 31: Additional Rules For Safe Operation
Act as follows before dismounting the MATV. Lower the mower to the ground, shut off the engine, and allow rotating pieces to come to a complete stop. Operator’s Manual Victory MATV Series - Page 31 of 66 - Version 2.0... -
Page 32: Human
5.3.5 Workplace You operate the MATV from the vehicle’s driver's seat. Furthermore, you need a minimum distance of 1 m around the mower for adjustments and repair. Operator’s Manual Victory MATV Series - Page 32 of 66 - Version 2.0... -
Page 33: Emergency Stop Procedure
Adjust the rear roller height. ◼ Move the vehicle in position and fit the mower to the 2” hook. ◼ Connect the remote throttle regulator to your ATV. Operator’s Manual Victory MATV Series - Page 33 of 66 - Version 2.0... -
Page 34: Inspection Checklist
• When moving from normal working conditions to heavier cutting, it may be evident that the engine dies down and loses revs. SLOW DOWN IMMEDIATELY to allow the engine revs to build up again. Operator’s Manual Victory MATV Series - Page 34 of 66 - Version 2.0... -
Page 35: Stopping The Mower
It is essential for both optimal machine performance and long-lasting belt lifetime that the belts are correctly tensioned at all times. After an initial first 2 hours of work, check belt tension. Operator’s Manual Victory MATV Series - Page 35 of 66 - Version 2.0... - Page 36 Correct if necessary. See the following figure. ◼ Tighten the four bracket bolts and nuts (2). ◼ Secure all nuts of the tensioning bolts. Operator’s Manual Victory MATV Series - Page 36 of 66 - Version 2.0...
-
Page 37: Aligning The Pulleys
Use a straight steel ruler to check that both pulleys align. ◼ Align the engine bracket plates if necessary. ◼ Recheck the drive belts tension. Correct if necessary. ◼ Install the pulley cover. Operator’s Manual Victory MATV Series - Page 37 of 66 - Version 2.0... -
Page 38: Maintenance, Adjustment, And Repair
This manual describes periodic maintenance that the owner can do. However, any care that requires special tools or technical experience should be left to Victory authorized service technicians. Check the mower tines frequently. They must be sharp, free of nicks and cracks, and securely fastened. -
Page 39: Preventive Maintenance
◼ Replace and repair broken nipples immediately. ◼ If nipples do not take grease, remove and clean them thoroughly; clean the lubricant passageway. Replace nipples if necessary. Operator’s Manual Victory MATV Series - Page 39 of 66 - Version 2.0... -
Page 40: Service Period
Drain the engine oil and clean the engine thoroughly. Fill with new oil up to the dedicated oil level. Replace the air filter components. See Briggs & Stratton documentation. Operator’s Manual Victory MATV Series - Page 40 of 66 -... -
Page 41: Ordering Parts
If there is any space, remove the wheel and inspect the bearings. Replace any faulty bearing. Ordering Parts Contact Victory Tractor Implements to order spare parts. When ordering spare parts, you must always have the following information: ◼... -
Page 42: Cleaning
This section can help the operator when a problem arises. It gives basic guidelines if something on the Heavy-duty Flail mower is not working correctly. If the procedures in this section do not solve the problem, the owner should contact the Victory Service department for assistance. ◼... -
Page 43: General Troubleshooting List For Mower Functions
◼ Touch up all paint nicks and scratches to prevent rusting. ◼ Protect essential moving parts against corrosion by lightly oiling these parts. Operator’s Manual Victory MATV Series - Page 43 of 66 - Version 2.0... -
Page 44: Decommissioning And Environment
Information on different waste collection is available from your municipal environmental organization. List of Consumables ◼ Gasoline. ◼ Engine oil. ◼ Grease; Grade Type II. Operator’s Manual Victory MATV Series - Page 44 of 66 - Version 2.0... -
Page 45: 7.10 Spare Parts And Wearing Parts
Wearing parts for the MATV Flail mower: ◼ Drive belts: 03.12.BX.17.1118 ◼ Flail hammers 320 g. 02.ATV.00.006 ◼ Engine centrifugal clutch: 02.ATV.00.112A ◼ Wheels: 02.ATV.00.003 ◼ Air filter components: See B&S Manual. Operator’s Manual Victory MATV Series - Page 45 of 66 - Version 2.0... -
Page 46: Exploded View Drawings
EXPLODED VIEW DRAWINGS VICTORY MATV Parts; Exploded View Operator’s Manual Victory MATV Series - Page 46 of 66 - Version 2.0... - Page 47 U shape bracket 03.01.5782.M12x65 Hexagon head bolt M12x65 03.01.5782.M12x60 Hexagon head bolt M12x60 02.ATV.00.006 320 g Flail hammer 02.ATV.00.006.A ATV Y blade 02.ATV.120.005 ATV120 rotor 02.ATV.150.005 ATV150 rotor Operator’s Manual Victory MATV Series - Page 47 of 66 - Version 2.0...
- Page 48 Inner pipe 02.ATV.00.278 Plate 02.ATV.00.279 Outer pipe 02.ATV.00.280 03.01.70,1. M8x35 Hexagon socket cap head screws M8x35 03.05.276.51104 Deep groove ball bearing 51104 03.05.276.6004 Deep groove ball bearing 6004 Operator’s Manual Victory MATV Series - Page 48 of 66 - Version 2.0...
- Page 49 ATV trailer bar height adjustm. plate for 2019 version, left side. 02.ATV.00.093.A ATV trailer bar height adjustm. plate for 2019 version, right side. 02.ATV.00.095 ATV wheel shaft bushing. 02.ATV.00.096 ATV throttle cable, 6 meter version. Operator’s Manual Victory MATV Series - Page 49 of 66 - Version 2.0...
-
Page 50: Torque Specifications
Tighten all bolts to the torques specified unless otherwise noted. ◼ Check the tightness of bolts periodically, using this bolt torque chart as a guide. ◼ Replace fasteners with the same length and grade of bolt. Operator’s Manual Victory MATV Series - Page 50 of 66 - Version 2.0... -
Page 51: Specifications And Features
Mows grass and undergrowth up to 15″ high. ◼ Large hinged rear service gate. ◼ Large and wide wheels, mountable in various positions. ◼ Fully adjustable drawbar for variable offset positions. Operator’s Manual Victory MATV Series - Page 51 of 66 - Version 2.0... - Page 52 Free shipping and two years warranty. ◼ CE Tested; following the 2006/42/EC Machine directive. Drawbar offset dimensions: DIM. A (mm) B (mm) C (mm) MOWER MATV 48” 1135 MATV 60” 1285 Operator’s Manual Victory MATV Series - Page 52 of 66 - Version 2.0...
-
Page 53: Briggs & Stratton
Before operating, read all safety precautions and instructions in the Briggs & Stratton manual. See supplier's documentation. Link to the Briggs & Stratton Manual and Parts List: https://www.briggsandstratton.com/na/en_us/support/manuals.html Operator’s Manual Victory MATV Series - Page 53 of 66 - Version 2.0... -
Page 54: 10 Appendix
• High oil sump level. Slow acceleration. Clogged fuel filter. Engine jerks. Clogged fuel pipes. • Insufficient coolant level. Engine overheats. • High oil sump level. • Clogged cooler fins. Operator’s Manual Victory MATV Series - Page 54 of 66 - Version 2.0... -
Page 55: Copy Of Briggs & Stratton Operator's Manual
10.2 Copy of Briggs & Stratton ® Operator’s manual Operator’s Manual Victory MATV Series - Page 55 of 66 - Version 2.0... - Page 56 Operator’s Manual Victory MATV Series - Page 56 of 66 - Version 2.0...
- Page 57 Operator’s Manual Victory MATV Series - Page 57 of 66 - Version 2.0...
- Page 58 Operator’s Manual Victory MATV Series - Page 58 of 66 - Version 2.0...
- Page 59 Operator’s Manual Victory MATV Series - Page 59 of 66 - Version 2.0...
- Page 60 Operator’s Manual Victory MATV Series - Page 60 of 66 - Version 2.0...
- Page 61 Operator’s Manual Victory MATV Series - Page 61 of 66 - Version 2.0...
- Page 62 Operator’s Manual Victory MATV Series - Page 62 of 66 - Version 2.0...
- Page 63 Operator’s Manual Victory MATV Series - Page 63 of 66 - Version 2.0...
- Page 64 Operator’s Manual Victory MATV Series - Page 64 of 66 - Version 2.0...
- Page 65 Operator’s Manual Victory MATV Series - Page 65 of 66 - Version 2.0...
- Page 66 Operator’s Manual Victory MATV Series - Page 66 of 66 - Version 2.0...
