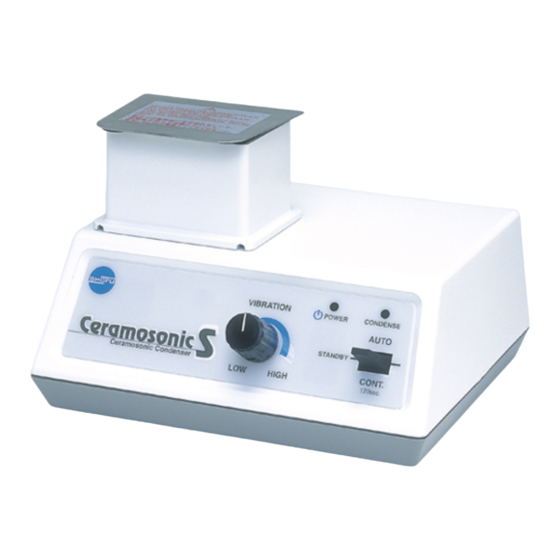

Read this manual carefully for the safe use of this unit. SHOFU Ceramosonic Condenser Ultrasonic condensing unit for porcelain build-up Directions For Use...
Page 18
- Introduction - Contents - Introduction - Thank you for purchasing “CERAMOSONIC S”, ultrasonic - Notes - condenser for porcelain build-up. This direction for use pro- vides all the necessary operating information that you might Features ................1 require, including daily care and cautions. Please read this Intended use ................
Features 1. Easy and reliable porcelain condensation by ultrasonic wave Just touching the vibrating platform with a pair of tweezers produces easy and reliable porcelain condensation. Micro-vibration by ultrasonic wave condenses porcelain more densely without ruining porcelain build-up. 2. Easy starting with the touch sensor Condensation starts easily by touching the vibrating platform with a pair of tweezers.
1. Safety information Understand the following items to use the product safely. Installation and Connection Descriptions of warnings and cautions Warning This manual provides safety information using the following • Use ground terminal outlet and make sure ground- symbols to prevent accidents resulting in injury or death ing.
Page 21
This may result in an electric shock. Should the equip- ment have a problem, do not dissemble or touch inside • Unplug the power cord by grasping the power plug. and ask for inspection and repair by authorized SHOFU Insulation degradation may cause injury, burns or fire. representative.
2. Part names and functions (1) Main unit (2) Vibrator protect case (3) Vibrating platform (4) Front panel (5) Mode switch AUTO STANDBY CONT. 120 sec. (6) VIBRATION controller HIGH (7) POWER * Blinks when malfunctions (8) CONDENSE (9) POWER ○...
3. Directions for use 3.2 Connection 3.1 Installation 1. Make sure the power switch is OFF (on the back Notes side of the main unit). • Do not hold the vibrating platform to carry the unit. This may result in deformation or removal of the platform. 2.
Page 24
(3) CONT. (Continue Mode) 3.3 Procedure • Vibration continues for 120 sec. The switch in- 1. Turn on the POWER switch on the back side of the stantly flips back to STANDBY. main unit ( | side). • If flipping down to CONT again, vibration restarts 2.
Notes • Vibration pattern or strength may differ when in use. • If turning off and restarting the equipment with the Adjust the VIBRATION to obtain desirable perfor- mode set at AUTO, AUTO mode operation can be mance. continued. • When discontinuing the operation, set the switch at •...
5. Operation Condensing Opaque porcelain Operational tip 1. Build up Opaque porcelain using a brush or spatula How to control vibration strength and set the tweezers against the vibrating platform (1) VIBRATION controller intermittently. Remove the moisture leaking up out of Set basic vibration strength.
Page 27
Condensing Body and Enamel porcelain 1. After building up Body and Enamel porcelain, take the frame out of the model using tweezers. After addi- tional application to the contact points, hold the tweezers handle leaning against the vibrating platform to condense. Exercise extra caution for not ruining the shape since the porcelain contains ample water before condensation.
6. Maintenance / Check How to adjust sensitivity controller (1)Turn the controller slowly from left to right ( ○ to ◎ ) (5)Check the performance by touching the platform with a while keeping the mode switch at AUTO. set of tweezers. (2)Stop turning at such position that vibration starts.
• Do not polish the main unit with a cleanser or steel Storage wool sponge. This damages the surface. Avoid dust for long time storage. 7. EU Declaration of Conformity Manufacturer: SHOFU Inc. Head Office 11 kamitakamatsu-Cho, Fukuine Higashiyama-Ku Kyoto 605-0983 Japan Product: CERAMOSONIC ”S” condenser The product CERAMOSONIC ”S”...
• Vibration level will change during use. It is not regarded as a problem. Adjust the vibration controller at an adequate level. • In case of extraordinarily weak or strong vibration, ask for inspection and repair by authorized SHOFU representative.
9. Specification Type SCC-S Main unit: Supply voltage AC100-240V±10%, 50/60Hz Power cord : (AC 125 type cord) AC100-110V±10%, 50/60Hz Power cord : (AC 250 type cord) AC220-240V±10%, 50/60Hz Power input 20VA* Electric consumption Output frequency 27.5kHz±10% Dimensions 160(W) x 140(D) x 110(H)mm Weight 1.0kg Usage condition...
This product is shipped after strict inspection. Should the product have any problem under normal usage within one year from the date of purchase, repair will be free of charge. However, the following cases are not covered by the warranty: ・ Problem or damage caused by misuse or mishandling. ・ Problem or damage caused by improper repair or remodeling. ・ Problem or damage caused by fire, earthquake, flood and other natural disaster or abnormal voltage. ・ Replacement of accessories. ・ No indication of purchase date, user name, and dealer name on the warranty card, receipt or invoice from SHOFU or its dealers. ・ Deformation or excessive impact to the vibrating platform as well as wear and tear due to normal use may cause loud operating sound, which is not regarded as a problem. Repair cost will be charged.
