Summary of Contents for Peloton BIKE

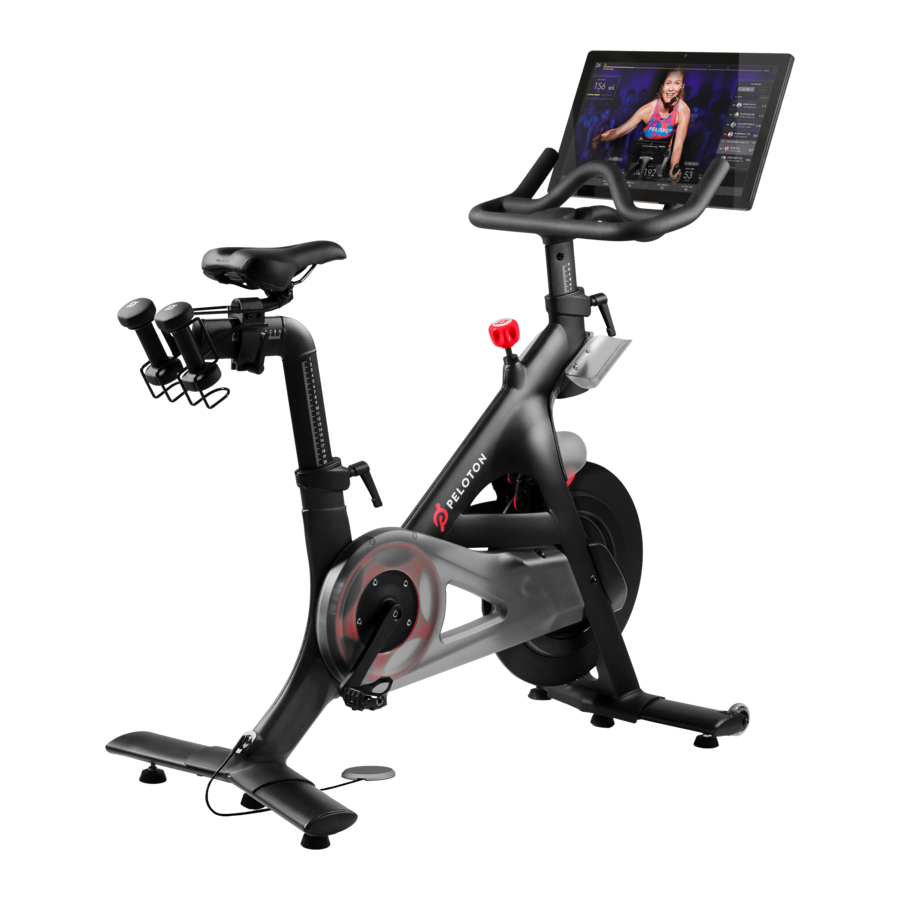

- Page 1 B I K E H O M E A S S E M B L Y G U I D E...
- Page 2 Keep children and pets away from the Bike at all times. The Bike and Bike package are extremely heavy and require more than one person to lift or carry. Lifting heavy objects can cause muscle strain and back injuries.
-
Page 3: Getting Ready
V I D E O I N S T R U C T I O N S Scan the QR code or go to onepeloton.com/setup/bike access assembly video and instructions online. 3 | G E T T I N G R E A D Y... - Page 4 Clear a 5 ft by 5 ft space for assembly. � Locate a pair of scissors or a similar tool. The Bike includes all the tools you � will need for assembly, but you will need scissors to unpack it.
- Page 5 Open the outer carton. Inside, find the inner bike carton, the home assembly kit, and the touchscreen box. Clear away the rest of the cardboard, but leave the unfolded outer carton under the Bike--it will protect the Bike and your floor during the assembly process.
- Page 6 Clip the zip ties on the frame and remove the handlebars and monitor arm. Remove the remaining packaging materials from the carton. B I K E C A R T O N Handlebars Bike Frame Monitor Arm Box B Box A...
- Page 7 G E T T I N G R E A D Y I D E N T I F Y PA R T S Before beginning to assemble your Bike, locate and identify all parts and tools. H O M E A S S E M B LY K I T...
- Page 8 * The large hardware bag in Box C contains the same bolts and washers as hardware bags 1 & 2. You shouldn’t need it to assemble your Bike, but if you need a spare bolt or washer, you can find it here.
-
Page 9: A S S E M B L I N G T H E B I K E
R E M O V I N G T H E B I K E F R O M T H E C A R T O N Make sure the L-handles at the front of the Bike and seat tube point straight down. - Page 10 Peloton Bike. A second person may be helpful when raising and lowering the Bike. Slowly lower the Bike onto its left side. Make sure the stabilizer insert stays in place. Remove the carton base from the bottom of the Bike.
- Page 11 A D D I N G T H E S TA B I L I Z E R S Fit the front stabilizer tightly against the front foot of the Bike. Note: Make sure you have the correct stabilizer. The front stabilizer has wheels and the rear stabilizer does not.
- Page 12 D × 2 C × 2 Loosen the L-handle at the front of the Bike by turning it counterclockwise. Insert the handlebar post into the head tube and move it to its lowest position–you’ll need access to the bottom of the post.
- Page 13 A S S E M B L I N G T H E B I K E PA R T S A N D T O O L S Having trouble inserting the handlebar post? A plastic clip inside the head tube may be getting in the way. Reach into the head tube and press both sides of the clip flat.
- Page 14 * The two water bottle holders are identical, so you can use either one on either side of the Bike. 1 4 | A S S E M B L I N G T H E B I K E...
- Page 15 Make sure each pedal is correctly threaded before screwing it in. Misaligning the threads or turning a pedal in the wrong direction could lead to injury and damage the pedal and Bike. L E F T R I G H T Rotate the crank arms until both are parallel with the floor.
- Page 16 Once both pedals are hand-tight, use your pedal wrench to fully tighten them. Remember to turn the wrench toward the front of the Bike on both sides. 1 6 | A S S E M B L I N G T H E B I K E...
- Page 17 A S S E M B L I N G T H E B I K E PA R T S A N D T O O L S A D D I N G T H E W E I G H T H O L D E R S Make sure the L-handle under the seat points straight down.
- Page 18 A S S E M B L I N G T H E B I K E PA R T S A N D T O O L S AT TA C H I N G T H E T O U C H S C R E E N Carefully lay the touchscreen face down on a towel or mat.
- Page 19 A S S E M B L I N G T H E B I K E PA R T S A N D T O O L S Align the plate with the screw holes on the back of the touchscreen. Secure the touchscreen to the monitor arm using your Phillips head screwdriver and (4) bolts J.
- Page 20 A S S E M B L I N G T H E B I K E PA R T S A N D T O O L S Snap the square panel back onto the touchscreen. Insert the monitor arm into the handlebar base. Push it in as far as it will go and make sure the touchscreen is fully upright.
- Page 21 A S S E M B L I N G T H E B I K E PA R T S A N D T O O L S C O N N E C T I N G T H E T O U C H S C R E E N Open the plastic clamp at the back of the touchscreen.
- Page 22 PA R T S A N D T O O L S L E V E L I N G T H E B I K E Gently push the seat and handlebars from side to side to check if the bike rocks or wobbles.
- Page 24 © Peloton 2022, Peloton Interactive, Inc. All rights reserved. onepeloton.com P L - 0 1 | 4 0 0 0 8 7 9 5 - B...
