Timespace X200 Instruction Manual

Hide thumbs Also See for X200:
Table of Contents

Advertisement

Quick Links

Download this manual

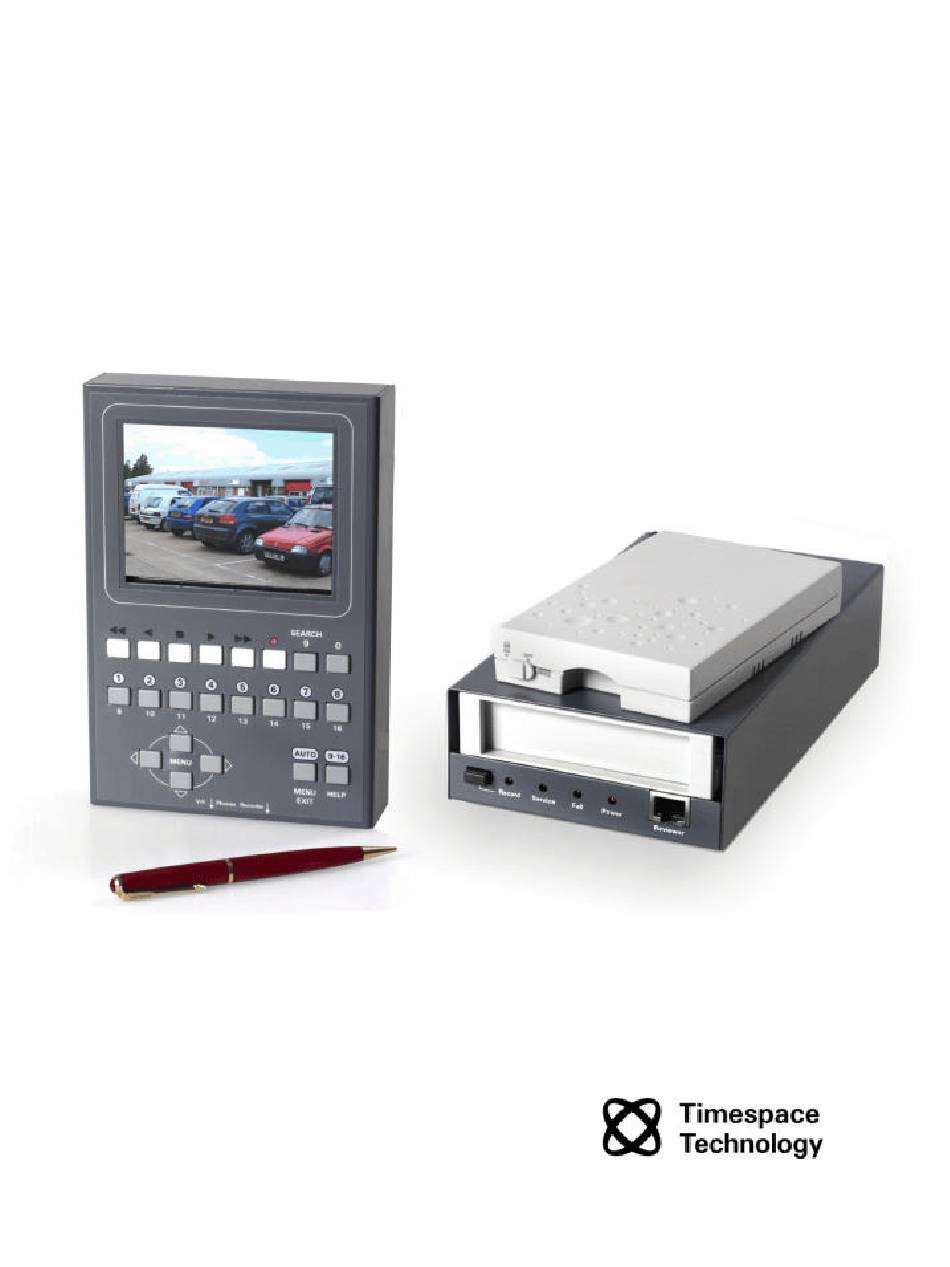

X200
Digital Video Recorder
and Product Family
Instruction Manual
th
© 4
October 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X200 and is the answer not in the manual?

Questions and answers

Related Manuals for Timespace X200

Summary of Contents for Timespace X200

  • Page 1 X200 Digital Video Recorder and Product Family Instruction Manual © 4 October 2004...

  • Page 2: Table Of Contents

    Shock and Vibration ............................5 EMC ..................................5 Conformity................................5 SYSTEM OVERVIEW ............................. 7 RECORDING TIME CALCULATION ........................ 9 COMPATIBILITY WITH X 100 HARD DISK CARTRIDGES ..............10 X200 DIGITAL RECORDER ..........................11 Installation................................12 Connector Specifications and Diagrams....................17 Programming...............................23 Help Screens ...............................23 Software Updates ...............................24 File System................................25...
  • Page 3 GPS Menu ................................45 Statistics Menu ...............................46 Advanced Menu .............................47 Reset System Menu .............................49 Normal Recording Menu ..........................50 Timer Recording Menu..........................52 Timer Recording Times Menu........................53 Shot Recording Menu ..........................55 Audio Recording Menu..........................56 Alarm Recording Menu..........................57 Alarm Inputs Menu ............................58 Alarm Output / LEDs Menu ........................59 Video Switcher Menu ...........................60 HARD DISK CARTRIDGE..........................61 X201 REVIEWER ..............................62...

  • Page 4: Safety

    SAFETY Meets the requirements of BS EN60950 (Safety Requirements of Information Technology Equipment). Designed to be powered from an external power source which complies with the Low Voltage Directive (73/23/EEC). Designed for indoor use in the temperature range 5° to 40°C, 20% to 80% RH (non- condensing).

  • Page 5: Environmental

    X200 mounted horizontally and ambient temperature measured 15cms above the centre of X200. If the X200 is to be mounted in an enclosure is important that the internal temperature inside the enclosure does not exceed the specification above and any new enclosure design should be tested.

  • Page 6: Shock And Vibration

    Shock and Vibration Due to the nature of hard disk drives it is essential that the X200 is isolated from vibration and shock as much as possible. Consideration should be paid to the mounting position so that the levels of shock and vibration that may be encountered are minimized.
  • Page 7 PE29 6TT United Kingdom declare that the X200 Digital Video Recorder Meets the intent of the European Council Directive 89/336/EEC referred to as the Electromagnetic Compatibility (EMC) Directive. The product conforms to the following standards which have been listed in the Official Journal of the European Union.

  • Page 8: System Overview

    PC, using the USB Interface Kit, (which includes PCLink200, a proprietary reading and archiving software package). The X201 Reviewer is used to program the menu settings on X200, to check camera views and to review recordings on the installed X200 Hard Disk Cartridge. Recording will continue during this reviewing process.
  • Page 9 Diagramatic Explanation of Use RECORDING The X200 Digital Video Recorder is used With a removable Hard Disk Cartridge to Record from multiple video and audio sources REVIEWING / CONFIGURING The X201 Reviewer is used for on-site reviewing of video/audio recordings and to configure the optional menu settings of the X200 Digital Video Recorder.

  • Page 10: Recording Time Calculation

    RECORDING TIME CALCULATION The following table allows the calculation of recording time in days and other parameters shown in bold below. Fill out 5 of the 6 entries A to F and calculate the missing entry. Number of cameras A_______________ Number of images/sec for each camera B_______________ Amount of motion (%)

  • Page 11: Compatibility With X100 Hard Disk Cartridges

    X100 will mean that all menu settings will revert to the factory default settings. It is possible to record both .oba* (X100 file) and .xba (X200 file) on the same cartridge without any compatibility problems. Please note however that the X100 will only list and play back .oba files and the X200 will only list and play back .xba files.

  • Page 12: X200 Digital Recorder

    X200 DIGITAL RECORDER...

  • Page 13: Installation

    The X200 can be used free-standing or it can be mounted on a wall or bulkhead. Power can be applied to X2 00 either via 12V DC jack socket (use PSU supplied with X200), or 12V screw terminals. NB: Do not use both power inputs simultaneously.
  • Page 14 Anti-Vibration Kit For use in mobile installations subject to shock and vibration. Please adhere to the following instructions for the installation of the Anti-Vibration Kit. Failure to do so may result in the Mounting System not working correctly. Inventory of Parts The Anti-Vibration Kit consists of the following parts - Description Wire Rope Mounts...
  • Page 15 It is necessary to allow a minimum clearance of at leas t 10mm around the body of the X2 00 when mounted on the T406 Anti Vibration Kit. This is to allow free movement of the X200 on the anti vibration mounts and to prevent collision with either the enclosure or peripheral...
  • Page 16 Cable Installation Please note that when installing cables to the rear of the X200 it is important not to arrange or clamp them in such a way as to impede the free movement of the rear anti- vibration mounts. Installation Procedure It is advised that some form of thread-lock compound should be used on the screws securing the wire rope mounts to both the X200 and mounting surface.
  • Page 17 This is strongly advised for maximum vibration and shock isolation. If it is not possible to mount the X200 in the horizontal orientation then the following vertical orientation may be used. It must be noted however that this vertical orientation is not as effective at isolating the X200 from vibration and shock as the horizontal orientation.

  • Page 18: Connector Specifications And Diagrams

    Connector Specifications and Diagrams X200-16 Rear Panel Pin numbering of both 25 Way Male D type connectors on X200 (looking at rear panel). Video 5 - 16 Connector Video GND In 5 Video In 5 Video GND In 6 Video In 6...
  • Page 19 X200-16 Cable Harness Recommended Specification A common cable harness can be used for both 25 Way D type connections on the X200-16 Connector 25 Way Female D type Shell Recommended max overall width 56mm (the two 25 way connectors are...
  • Page 20 X200-04 and X200-16 RS232 Connector The X200 has a 9 way male D-type connector (DB9) which can be used to support 1 or 2 RS232 peripherals. Conventional Cable Using a conventional cable (DB9 male to DB9 female straight through (1-1, 2-2, 3-3 etc.)) the...
  • Page 21 RS232 port 2 (other device) Power supply for GPS unit (500mA max) ß Ignored by X200 ß Receive Data Serial Data Ground X200-04 Rear Panel 1 BNC video output 4 BNC video inputs Audio Connector 5 pin 180° female DIN connector (DIN 41524)
  • Page 22 If the Hard Disk Cartridge is switched off and then on (or replaced) or the Load System Upgrade has been performed the X200 will reboot. In this case as per at power on all four LED’s will illuminate whilst the X200 initialises and will remain lit during system check (menu disabled) until the unit is operational.
  • Page 23 Reviewer Connector Connect X101 or X201 reviewer to X200 using this socket. Signals for this connector are as follows: Video out Video ground Audio ground RS232 Rx RS232 Tx Audio out (line level) Power ground...

  • Page 24: Programming

    Programming The configuration of the X200 is by the menu system, this is accessed using the X201 Reviewer. Please refer to the section on the X201 Reviewer for details of its use. Connect Data Link Cable (supplied with X201 Reviewer) from socket marked "Reviewer" on X200 to socket marked “Recorder”...

  • Page 25: Software Updates

    Check the software version in the statistics menu to verify the new version has been loaded. The current software and menu settings on an X200 can also be saved as a .xos file. This can then be used to transfer the software version and menu settings to another X200.

  • Page 26: File System

    SYSTEM RECORDING MODE : >SINGLE PASS The X200 records until the Hard Disk Cartridge is full and then stops. Recordings may be deleted in the RESET menu or loop recording enabled so that the oldest files will be overwritten first.

  • Page 27: Transferring Images To Video Tape

    / fast forward until it is in the desired recording position. Using an X201 reviewer select the file to be transferred from the X200 by using the files menu. Scroll through the file list until the required file is found and then press the right menu button next to the file so that it appears on the screen of the X201 Reviewer.

  • Page 28: Video Compression

    Video Compression The X200 records images, audio, GPS and other data into 10 minute or 1 hour proprietary format files ending with the .xba file extension. A trade-off between image quality and file size can be made by selecting from the four levels of video quality: low, medium, high and v. high.

  • Page 29: Audio

    The X200 has two line-level audio input and output channels. Connection to the X200 is via a 5 pin 180° female DIN connector (DIN 41524) on the rear panel of the X200 which is detailed in the Connector Specifications section of this manual.

  • Page 30: Pc Access Precautions

    PC Access Precautions It is important to understand that the X200 file system is a subset of the PC FAT32 file system. The PC will access the X200 disk cartridges with no problems but the X200 will not be able to read every FAT32 file system written by the PC.

  • Page 31: The Menu System

    Any changes made to the menu system have immediate effect on the operation of the system. The menu is stored on non-volatile Flash memory inside the X200. To revert to the factory settings run a RESET MENU TO THE FACTORY DEFAULT STATE WITH: ENGLISH LANGUAGE function in the RESET SYSTEM menu.

  • Page 32: Menu Navigation

    Menu Navigation The menu system on the X200 can be accessed by using the X201 R eviewer. Connect the dedicated 8 way (Ethernet style) cable (supplied with X201) to the recorder and consult the instructions for X201 Reviewer. Press any of the 4 menu buttons to enter the main menu. Once in the menu system, their function is as follows: Move arrow cursor up to the next item.
  • Page 33 The SEARCH key on the X201 Reviewer accesses a menu allowing the user to go to a specific time and date in the recorded footage. Pressing this button will enter the PLAYBACK SEARCH screen as seen below. If the footage on a given camera cannot be found (it may not have been recorded), a "NO FOOTAGE FOR SELECTED CAMERA"...

  • Page 34: Main Menu

    Main Menu MAIN MENU OTHER MENU NORMAL RECORDING TIMER RECORDING SHOT RECORDING AUDIO RECORDING ALARM RECORDING ALARM INPUTS ALARM OUTPUT / LEDs VIDEO SWITCHER Sub-menus available from the MAIN MENU: • OTHER MENU – Leads to the other menu items. •...

  • Page 35: Other Menu

    Other Menu OTHER MENU FILES PASSWORD TIME AND DATE CAMERA TEXT FILE SYSTEM STATISTICS ADVANCED RESET Sub-menus available from the OTHER MENU: • FILES – Allows listing and access to all recordings on the Hard Disk Cartridge. • PASSWORD – Settings for password protection and change password facility. •...

  • Page 36: Files Menu

    Write-protected files appear as write-protected (read only) on the PC. You can change the write-protect status either on the PC or as explained on the X200. Any files that are not write -protected on the X200 get overwritten (oldest first) during the process of recording.

  • Page 37: Password Menu

    Password Menu PASSWORD PASSWORD REQUIRED FOR : RECORD: MENU: SWITC HER: PLAY: >CHANGE PASSWORD . . . The password menu restricts user access to the four key parts of the system. Here is a summary of the menu selections available: •...
  • Page 38 Examples Selection Set to RECORDING MENU SWITCHER PLAY Allow the user to Allow the user to Full protection - no review footage and carry out basic Result: functions available. look at live cameras functions, but without only. access to any menus. The password for the unit when the unit is shipped is 0000.

  • Page 39: Time And Date Menu

    Time and Date Menu TIME AND DATE TIME: > 00 : 00 : 00 DATE: 01 / 01 / 04 MODE DD/MM/YY SET CLOCK TO THESE SETTINGS . . SUMMERTIME ADJUST: SUMMER / WINTER TIME: WINTER The time and date menu sets up the date, time and seasonal correction. •...

  • Page 40: Camera Text Menu

    Camera Text Menu CAMERA TEXT 1 C210KHD DOOR 2 C210KHD FRNT 3 C210KHD REAR 4 C210KHD DRVR DUPLICATE TEXT FROM CAM 1 . . TIMESTAMP POS: > BOTTOM LOW Allows the user to create an optional text label of up to 12 characters per camera. Use the up and down ‘MENU’...
  • Page 41 • TIMESTAMP POS: - The position of the timestamp can be moved to either bottom low/bottom-mid/bottom-high which are 3 positions below the main image or top-low/top- mid/top-high which are 3 positions above the main image. Select NO TIMESTAMP if you do not wish to see a timestamp on the recorded images.

  • Page 42: File System Menu

    • FILENAME TEXT – Enter up to 12 characters of text that will appear at the start of all files. For mobile applications a vehicle registration number could be used. The X200 serial number could also be used.

  • Page 43: File System Check

    NO CHECK / CHECK ONLY / CHECK AND CORRECT – Gives the option to check the file system at power on and optionally correct any errors. This is the recommended option as the X200 will check and correct both the file system and FAT of the Hard Disk Cartridge on start-up.

  • Page 44: Lan Menu

    LAN Menu IP ADDRESS : > 0 . 200 SUBNET MASK : 255 . 255 . 255 . GATEWAY : 0 . 255 PING TEST . . . MAC : 0 0 : 0 F : B 4 : 0 0 : 0 0 : 0 0 •...
  • Page 45 All Timespace Technology devices have a MAC address which begins 00 0F B4 followed by another three bytes. e.g. 00 0F B4 00 0A 48 The X200 LAN menu option allows the user to display its MAC address which may be useful in configuring access control with wireless networks.

  • Page 46: Gps Menu

    • Speed Units – Select either KPH for kilometres per hour or MPH for miles per hour. • Sync Clock with GPS – The X200 Digital Recorder includes a clock which is used to timestamp recording files and overlay the date and time on recorded images. Although accurate, the system can be configured to synchronize the clock with the date and time information received from the GPS receiver.

  • Page 47: Statistics Menu

    X200 in different recording environments. The total number of files along with the start date, end date and total amount of days recording...

  • Page 48: Advanced Menu

    • ENABLE X200 RECORD BUTTON – If set to YES the ‘Record’ button on the front of the X200 will switch Normal Recording on and off. If set to NO this button is disabled.
  • Page 49 Hard Disk Cartridge. The cartridge can then be used as a master to set up another X200 with the same software version and menu settings. Use LOAD SY STEM UPGRADE on the other X200 with the master cartridge inserted.

  • Page 50: Reset System Menu

    MENU EXIT button will abort this procedure. • RESET MENU TO FACTORY DEFAULT STATE – Pressing the right or left menu button will immediately reset the entire X200 menu system to its default settings . Please note that there is no undo option.

  • Page 51: Normal Recording Menu

    This sets whether the X200 will only record on connected cameras shown as highlighted on the connected camera list 01 – 16 at the bottom of the menu screen (01 – 04 on the X200- 04) or whether the X200 will record on all cameras specified in the recording parameters...
  • Page 52 • X IMAGES / SEC OUT OF 25 MAX – This displays how many images per second will be recorded during normal recording out of the X200 25 images per second maximum limit. Although less than 25 images per second can be recorded, the X200 is not able to record more than 25 images per second.

  • Page 53: Timer Recording Menu

    Pressing the right and left menu buttons next to a camera group will increase or decrease the number of cameras in that group respectively. Please note that this applies to the X200-16. The X200-04 lists each of the 4 cameras separately.

  • Page 54: Timer Recording Times Menu

    Timer Recording Times Menu TIMER RECORDING TIMES > IGNORE DAILY TIMES 08:15 17:00 COPY 08:15 17:00 DOWN 08:15 17:00 08:15 17:00 08:15 17:00 00:00 00:00 00:00 00:00 IGNORE PERIOD TIMES FROM : 00:00 00 / 00 / 00 TO : 00:00 00 / 00 / 00 The timer recording times menu sets the times that will be included or excluded for timer...
  • Page 55 • IGNORE PERIOD TIMES RECORD INSIDE PERIOD RECORD OUTSIDE PERIOD This enables the user to set a period of time, by time and date which is to be excluded/included from the daily timer recording parameters. Use the menu up and down buttons to move between the times and dates and enter the time or date using the number keys.

  • Page 56: Shot Recording Menu

    Shot Recording Menu SHOT RECORDING CAMERAS : > ALARM IN MENU RESOLUTION : NUMBER OF SHOTS : IMAGES / SEC : Shot recording allows a defined number of shots (images) to be recorded from an alarm input trigger. • CAMERAS – This takes the user to the alarm inputs menu in which they can which alarm inputs will be used as a trigger for shot recording and from which cameras to record images.

  • Page 57: Audio Recording Menu

    1 and 2 with a specific single camera or with all cameras. The X201 reviewer will play back the audio recorded for this input with the camera specified. Please note that this applies to the X200-16. The X200-04 will only have cameras 1-4 listed.

  • Page 58: Alarm Recording Menu

    Pressing the right and left menu buttons next to a camera group will increase or decrease the number of cameras in that group respectively. Please note that this applies to the X200-16. The X200-04 lists each of the 4 cameras separately.

  • Page 59: Alarm Inputs Menu

    CLOSED / OPEN The Alarm Inputs menu defines what the X200 will do when the 4 alarm inputs are either in a closed or open state. Closed is defined as a connection to the ‘-‘ terminal of the X200 input/output connector, whilst open indicates that no contact is being made.

  • Page 60: Alarm Output / Leds Menu

    LED’s are lit on the X200 front panel. CAMERA DISCONNECTED – When set to YES the alarm output is activated when a camera is disconnected from the X200 whilst recording on that camera. The alarm output will become inactive 5 seconds after the camera is reconnected.

  • Page 61: Video Switcher Menu

    The video switcher menu controls the automatic switching of cameras on the switcher output at the back of the X200 (X200-16 only) and also on the main video output when the unit is in AUTO mode (selected by pressing the AUTO key on the X201 Reviewer). On the X201 the number key LED is illuminated for the camera shown (1-8 number keys for cameras 1-8 with the addition of the 9-16 LED lit for cameras 9 –...

  • Page 62: Hard Disk Cartridge

    Please note that the use of Hard Disk Cartridges other than those manufactured by Timespace Technology will invalidate the warranty of the X200 recorder. The X200 records onto a 2.5" IDE hard disk contained in a cartridge. This cartridge is removable and can be swapped between X200’s.

  • Page 63: X201 Reviewer

    X201 REVIEWER...

  • Page 64: Function

    X200 to socket marked "Recorder" on X201. This connection provides power, video and audio from X200 to X201. When power (12V ±1.2V) is applied to the X200 and fed to the reviewer via the Data Link Cable the red LED on the bottom panel of the reviewer is illuminated.

  • Page 65: Controls

    Controls The keys on the X201 can be grouped into Menu Navigation, Playback & Recording, Camera Switcher and Search & Help. Menu Navigation MENU MENU EXIT Press any of the 4 menu buttons to enter the main menu. Once in the menu system, their function is as follows: Move arrow cursor to the previous item.
  • Page 66 Playback & Recording Rewind through recorded footage. The normal wind interval is 1 minute. Pressing the button again increases the wind interval to 5 minutes. Repeated presses increase the interval to 10 / 20 and finally 60 minutes. This rapid scan mode enables fast, flicker- free searching through recorded material.
  • Page 67 9-16 Press this button before pressing the number buttons 1-8 to access cameras 9-16 on the X200-16. AUTO Activate the auto switcher mode. In this mode, the monitor will show a live view and the cameras are cycled as specified in the "Video Switcher" menu. Press the AUTO button again to deactivate the auto switcher mode.
  • Page 68 Search & Help SEARCH 9–16 HELP HELP Applies when using any menu. Pressing this button will produce a help screen. Continue pressing any key to cycle through help screens until menu returns. SEARCH Go to a specific time and date in the recorded footage. Pressing this button will enter the PLAYBACK SEARCH screen as seen below .

  • Page 69: Audio

    X201 is in mono via channel 1 only. The audio signal from the X200 is transferred along with the video signal via the reviewer cable to the X201. No other cabling is required.

  • Page 70: Usb Interface Kit

    USB INTERFACE KIT Transferring Files to PC Any disk removed from the X200 recorder can be viewed on a PC and recording files (proprietary form at .xba files) are displayed. The disk is connected to the PC using an IDE /...

  • Page 71: Installing Usb Interface Kit Drivers (Windows 98 And Me Only)

    Installing USB Interface Kit Drivers (Windows 98 and ME Only) The USB / IDE Interface Drivers only need to be installed when running Windows 98 and ME. It is strongly advised that the supplied drivers are not installed when running Windows 2000 and XP as they already have appropriate drivers as part of the original Operating System installation.

  • Page 72: Pclink200 Reviewing And Archiving Software

    PCLINK200 REVIEWING AND ARCHIVING SOFTWARE...

  • Page 73: Accessing / Storing Images

    PCLink200 is a Windows based application that allows .xba files to be viewed on a PC. These files are automatically created by the X200 recorder on its removable disk cartridge. The cartridge must be connected to the PC to access the files on the cartridge.

  • Page 74: User Interface Quick Reference

    Operating Loading .xba files can be accomplished in a number of ways. If “Cartridge Autoload” has been selected in the Options menu the user will be asked if they want to load all footage from a Hard Disk Cartridge which is attached to the PC before or after PCLink200 is started (V1.0.1 onwards).
  • Page 75 File Menu • Load single or multiple XBA files • Print the currently selected camera screen • Selecting cameras to view Copy current camera screen to clipboard as a Windows bitmap • • Export current camera screen as Use the View Menu to select a Windows bitmap which cameras are to be •...

  • Page 76: User Interface In Detail

    User Interface in Detail Play Controls The Play controls are situated in the bottom left hand corner of the PCLink200 window . • Rewind – click once to rewind the footage by a few seconds whilst playing or stopped. Hold down to fast rewind the footage.
  • Page 77 Time and Date The current time and date of the footage shown on the screen is displayed directly above the play controls. Main menu and Toolbar. There are a number of menus available in the main menu bar across the top of the PCLink200 window.
  • Page 78 Controls menu. Play / Stop – This will toggle the footage from playing to stopped and vice-versa. Also controlled directly by the Space Bar on the keyboard. Jog Forwards – Causes the footage to jog forwards. Also controlled directly by the L key on the keyboard.
  • Page 79 Toolbar There are a number of icons on the toolbar which mirror functions from the menu. Open XBA file Open XBA folder Displays properties for all the currently loaded .xba files. It also highlights the file currently playing and allows the user to double -click files to jump to their start times Copy current image to clipboard Export current image...

  • Page 80: Remote Operation

    REMOTE OPERATION The X200 includes Ethernet local area connection (LAN) technology. It also incorporates a TFTP (trivial file transfer protocol) server which allows the video files to be downloaded using either a hard-wired or wireless network connection. The files can be accessed and downloaded using any TFTP client application such as Timespace Technology’s X-...

  • Page 81: Lan

    All Timespace Technology devices have a MAC address which begins 00 0F B4 followed by another three bytes. e.g. 00 0F B4 00 0A 48 The X200 LAN menu option allows the user to display its MAC address which may be useful in configuring access control with wireless networks. IP Address For devices communicating on a network, messages must identify the source and destination with an address.
  • Page 82 The ‘BYTES SENT’ and ‘BYTES RECEIVED’ fields update in real-time to show how many bytes are being transferred to and from the X200 and can provide further indication of data transfer.

  • Page 83: Wlan

    When using this feature, the MAC address of each client must be added to the list in the router. [It may be necessary to add both the MAC address of the X200 and the wireless bridge to which it is connected.]...
  • Page 84 Typical X200 Wireless LAN Configuration WIRELESS ROUTER WIRELESS COMMUNICATION VIDEO X200 DIGITAL WIRELESS CAMERA RECORDER BRIDGE VIDEO CAMERA VIDEO MICROPHONE CAMERA RECEIVER...
  • Page 85 Troubleshooting Hardwired Connection If it is suspected that the wireless connection is causing problems, the X200 standard RJ45 socket allows connection to the network using a standard UTP network cable. [Note that if a hardwired cable connection is made directly to a single computer then a cross-over cable may be necessary.]...
  • Page 86 Operation Single Client The X200 Digital Video Recorder will allow file download to one client at a time. During file transfer, any attempt by another client to download a file will be rejected or ignored. A transfer can be explicitly aborted with a Timespace extension to the TFTP protocol and implicitly aborted if no acknowledgement is received in response to a data packet within 20 seconds.
  • Page 87 Data Transfer Transfer Rate The X200 Digital Video Recorder is equipped with a 10Mb/s network interface controller and this could be a limiting factor when using with a wireless LAN connection. Current wireless standards include: • IEEE 802.11g – provides networking with speeds up to 54Mb/s •...
  • Page 88 Improving Transfer Range The following tips may help in increasing the transfer range or the signal strength and signal to noise ratio which can help improve the transfer rate. • Put the router or access point close to the centre of the area to cover. •...
  • Page 89 Glossary Bridge A device which forwards traffic between network segments based on data link layer information. ICMP Internet Control Message Protocol Internet Protocol Local Area Network Media Access Control Ping A software application used to determine whether two network devices are capable of communication.

  • Page 90: X-Communicate Lan/Wlan File Transfer Software

    TFTP client application. X-Communicate is a simple TFTP client application which runs under the Windows operating system to allow the listing and transfer of files from the X200. The screenshot below shows how the application appears during file download.
  • Page 91 Area. When selected, a dialog is displayed which prompts the user to select the name of the file to be used locally. By default, the same filename as on the X200 is displayed. If the file with the same already exists then the user is prompted to confirm that it is their intention to overwrite that file.
  • Page 92 Selecting this option displays the files on the X200 as large icons. List Selecting this option displays the files on the X200 as a list. Details This view option is the default. Selecting it displays the files on the X200 with details including: • Filename •...
  • Page 93 Where more files are available than can be displayed in the file listing area, the vertical scrollbar to the right can be used to move between pages. File Indicator This field shows the number of files available for download on the remote X200 specified by the entered IP address. Page Indicator This field shows the current and total page numbers.

  • Page 94: Specifications

    File transfer to PC GPS* Embedded Text Position (coordinates) and speed (kph or mph) GPS Data Files contain GPS position/speed/time for mapping Clock Lock Locks X200 clock to world GPS clock * Additional hardware required - not supplied by Timespace Technology...
  • Page 95 Switcher Out 1 on 25-way "D" connector (X200-16) Audio In 2 line on 25-way "D" connector (X200-16) 2 line on DIN 5 way audio socket (X200-04) Audio Out 2 line on 25-way "D" connector (X200-16) 2 line on DIN 5 way...
  • Page 96 Export video to AVI file OTHER ACCESSORIES USB INTERFACE KIT For access to X200 recordings via USB1 or USB2 socket of PC; includes software, cables, instructions, PCLink200 reading software. ANTI-VIBRATION KIT Shock and vibration protection in mobile and portable applications.

  • Page 97: Troubleshooting

    TROUBLESHOOTING Text Messages The following messages may be displayed on the X200 reviewer under the circumstances described: MANUAL OVERRIDE ENABLED You have chosen to override ALARM recording and turn recording off. To disable this manual override, press the record key again, after leaving this screen.
  • Page 98 The above message is embedded within the recording file when the X200 video recorder detects that there is no video signal on an input selected for recording. Check that the camera is working and properly connected to the X200 should this message be seen unexpectedly in recordings.
  • Page 99 "Cameras connected but no live views" Press "Auto" on the X201 Reviewer. "No picture on X201 monitor" Ensure that correct power supply to X200 (12V +/- 1.2V, 2A (continuous) 3A (peak). "PC can't see disk but recordings The hard disk boot / partition / FAT sectors viewable on X200"...
  • Page 100 X100 operating system installed on it then a PC Running Windows 98” although it may have enough free space available to save the X200 .xos file Windows 98 shows the disk as full. • Connect the cartridge to the PC via the USB Interface Kit.
