Timespace X500 Setup Manual

Ip camera setup
Hide thumbs Also See for X500:
Table of Contents

Advertisement

Quick Links

Download this manual

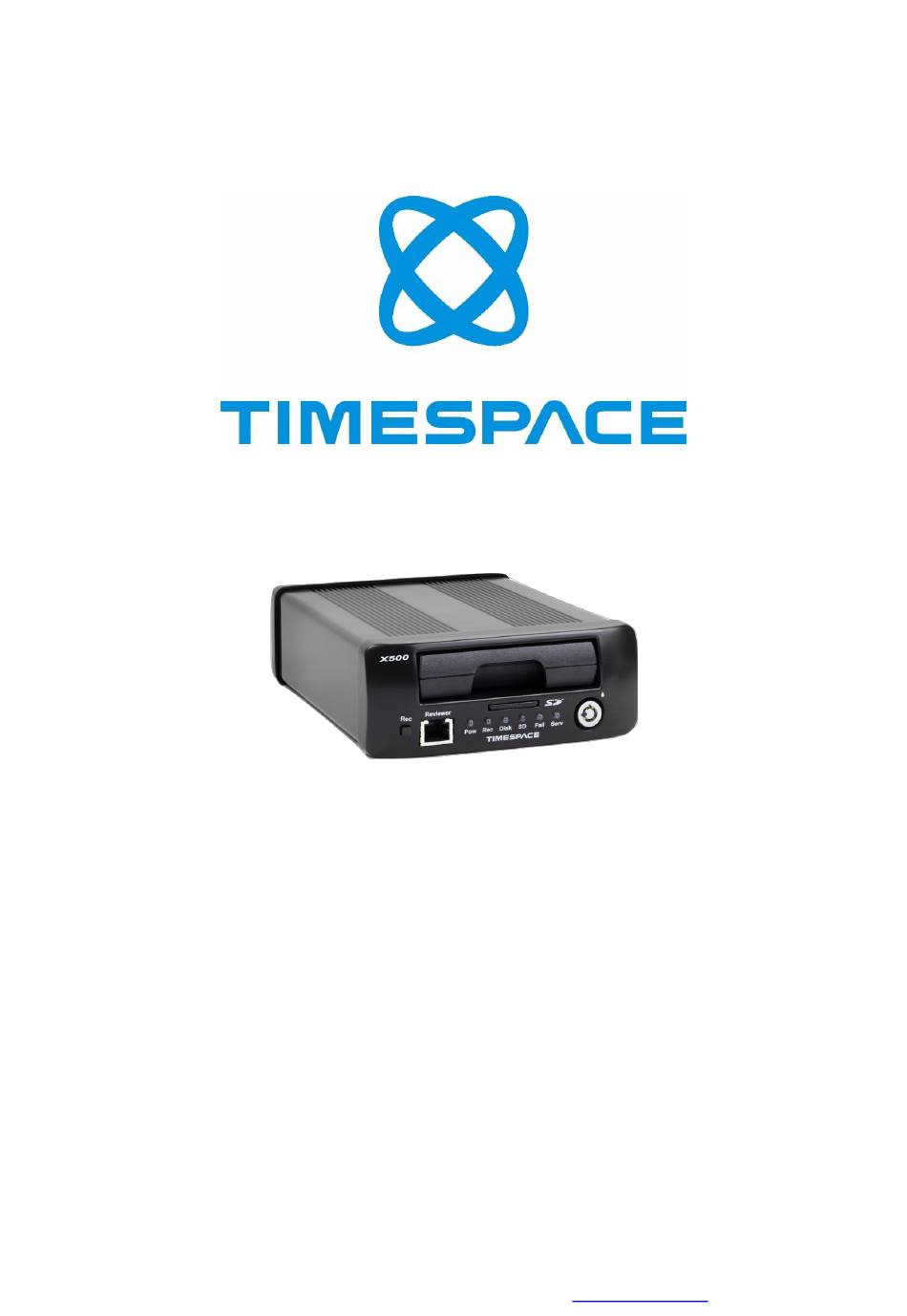

X500/R500
IP Camera Setup Guide
TT0926 Issue 1
th
28
August 2019
www.tspace.co.uk
01480 414147

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X500 and is the answer not in the manual?

Questions and answers

Related Manuals for Timespace X500

Summary of Contents for Timespace X500

  • Page 1 X500/R500 IP Camera Setup Guide TT0926 Issue 1 August 2019 www.tspace.co.uk 01480 414147...

  • Page 3: Table Of Contents

    X500/R500 set up for AXIS P12/M20 ............. 7 Bosch Dinion 7000 ....................8 Setting up Bosch Dinion 7000 HD camera ............. 8 X500/R500 Set up for Bosch Dinion 7000 HD ..........10 Bosch Dinion 8000 ....................11 Setting up Bosch Dinion 8000 MP camera........... 11 X500/R500 Set up for Bosch Dinion 8000 MP ..........
  • Page 4 15 KNC LDDi45 ......................41 15.1 Setting up KNC LDDi45 camera ..............41 15.2 X500/R500 Set up for KNC LDDi45 ............... 43 16 Milesight MS-C2973-PB ..................44 16.1 Setting up Milesight MS-C2973-PB camera ..........44 16.2 X500/R500 Set up for Milesight MS-C2973-PB ..........46 17 Synectics SY-FDEF3....................
  • Page 5 Revision Date Reason 28/08/19 Initial release...

  • Page 7: Introduction

    X500/R500 IP Camera Setup Guide 1 Introduction This setup guide has been produced to help users of the Timespace X500 and R500 digital video recorders (DVRs) to set up IP cameras on the DVRs. The guide provides specific setup details for cameras which, at the time of issue of this document, have been tested by Timespace and are confirmed as compatible with the X500 and R500 DVRs.

  • Page 8: Axis M3114-R

    X500/R500 IP Camera Setup Guide 2 Axis M3114-R 2.1 Setting up Axis M3114-R camera Connect to camera using ONVIF Manager. Select Profile <quality h264> via Profiles menu and then set stream via Video Streaming menu: Primary stream (Recorded stream): ...
  • Page 9 MJPEG Select Network- Settings to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 10: X500/R500 Set Up For Axis M3114-R

    X500/R500 IP Camera Setup Guide 2.2 X500/R500 Set up for Axis M3114-R  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have Axis M3114-R selected and then apply.

  • Page 11: Axis P12/M20

    X500/R500 IP Camera Setup Guide 3 AXIS P12/M20 3.1 Setting up AXIS P12/M20 camera Connect to camera using ONVIF Manager. Primary stream (Recorded stream):  25 fps  1280 x 720  H.264...
  • Page 12 MJPEG Select Network Settings to get to the IP address menu Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 13: X500/R500 Set Up For Axis P12/M20

    X500/R500 IP Camera Setup Guide 3.2 X500/R500 set up for AXIS P12/M20  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have AXIS P12/M20 selected and then apply.

  • Page 14: Bosch Dinion 7000

    X500/R500 IP Camera Setup Guide 4 Bosch Dinion 7000 4.1 Setting up Bosch Dinion 7000 HD camera Connect to camera using browser interface and select Configuration->Camera->Encoder Streams- >Stream 1 to get to the following menu. Primary stream (Recorded stream): ...
  • Page 15 MJPEG Select Configuration->Network->Network Access to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 16: X500/R500 Set Up For Bosch Dinion 7000 Hd

    X500/R500 IP Camera Setup Guide 4.2 X500/R500 Set up for Bosch Dinion 7000 HD  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2 ...

  • Page 17: Bosch Dinion 8000

    The Bosch 8000 camera can be set up to output at 4k resolution (3840 x 2160) on the main stream which is then recorded to the X500/R500 disk. Playback of this footage only runs on PCLink when installed with a Windows 64 bit operating system. The Windows 32 bit operating system may not...
  • Page 18 MJPEG Select Configuration->Network->Network Access to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 19: X500/R500 Set Up For Bosch Dinion 8000 Mp

    X500/R500 IP Camera Setup Guide 5.2 X500/R500 Set up for Bosch Dinion 8000 MP  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2 ...

  • Page 20: Canon Vb-H45

    X500/R500 IP Camera Setup Guide 6 CANON VB-H45 6.1 Setting up CANON VB-H45 camera Connect to camera using browser interface and select Video to get to the following menu. Primary stream (Recorded stream):  30 fps  1920 x 1080 ...
  • Page 21 X500/R500 IP Camera Setup Guide Select Network to get to the IP address menu Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address.

  • Page 22: X500/R500 Set Up For Canon Vb-H45

    X500/R500 IP Camera Setup Guide 6.2 X500/R500 Set up for CANON VB-H45  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have CANON VB-H45 selected and then apply.

  • Page 23: David Horn Fwn-Gy_L6

    X500/R500 IP Camera Setup Guide 7 David Horn FWN-GY_L6 7.1 Setting up David Horn FWN-GY_L6 camera Connect to camera using browser interface and select Admin->Device Configuration->Camera & Motion to get to the following menu. Primary stream (Recorded stream):  25 fps ...
  • Page 24 X500/R500 IP Camera Setup Guide Select Network Configuration->Network Configuration to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address.

  • Page 25: X500/R500 Set Up For David Horn Fwn-Gy_L6

    X500/R500 IP Camera Setup Guide 7.2 X500/R500 Set up for David Horn FWN-GY_L6  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2 ...

  • Page 26: Harris Tech Pericam

    X500/R500 IP Camera Setup Guide 8 Harris Tech Pericam 8.1 Setting up Harris Tech Pericam camera Connect to camera using browser interface and select Configuration->Video/Audio->Main Stream(Normal) to get to the following menu. Primary stream (Recorded stream):  25 fps ...
  • Page 27 MJPEG Select Comms: Configuration->Network->Basic Settings to get to the IP address menu: Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address.

  • Page 28: X500/R500 Set Up For Harris Tech Pericam

    X500/R500 IP Camera Setup Guide 8.2 X500/R500 set up for Harris Tech Pericam  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2 ...

  • Page 29: Hik Ds-2Cd2510F

    X500/R500 IP Camera Setup Guide 9 HIK DS-2CD2510F 9.1 Setting up HIK DS-2CD2510F camera Connect to camera using browser interface and select Basic Configuration->Video/Audio->Main Stream(Normal) to get to the following menu. Primary stream (Recorded stream):  25 fps  1280 x 960 ...
  • Page 30 MJPEG Select Configuration->Basic Configuration->Network to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 31: X500/R500 Set Up For Hik Ds-2Cd2510F

    X500/R500 IP Camera Setup Guide 9.2 X500/R500 Set up for HIK DS-2CD2510F  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have HIK DS-2CD2510F selected and then apply.

  • Page 32: Hik Ds-2Cd2542Fwd-Is

    X500/R500 IP Camera Setup Guide 10 HIK DS-2CD2542FWD-IS 10.1 Setting up HIK DS-2CD2542FWD-IS camera Connect to camera using browser interface and select Configuration->Video/Audio->Main Stream(Normal) to get to the following menu. Primary stream (Recorded stream):  12 fps  1920 x 1080 ...
  • Page 33 MJPEG Select Configuration->Network->Basic Settings to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 34: X500/R500 Set Up For Hik Ds-2Cd2542Fwd-Is

    X500/R500 IP Camera Setup Guide 10.2 X500/R500 Set up for HIK DS-2CD2542FWD-IS  S On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2 ...

  • Page 35: Hik Ds-2Cd4B26Fwd-Iwz

    X500/R500 IP Camera Setup Guide 11 HIK DS-2CD4B26FWD-IWZ 11.1 Setting up HIK DS-2CD4B26FWD-IWZ camera Connect to camera using browser interface and select Configuration->Video/Audio->Main Stream(Normal) to get to the following menu. Primary stream (Recorded stream):  25 fps  1920 x 1080 ...
  • Page 36 MJPEG Select Configuration->Network->Basic Settings to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 37: X500/R500 Set Up For Hik Ds-2Cd4B26Fwd-Iwz

    X500/R500 IP Camera Setup Guide 11.2 X500/R500 Set up for HIK DS-2CD4B26FWD-IWZ  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have HIK DS-2CD4B26FWD-IWZ selected and then apply.

  • Page 38: Hik Ds-2Cd6510D-Io

    X500/R500 IP Camera Setup Guide 12 HIK DS-2CD6510D-IO 12.1 Setting up HIK DS-2CD6510D-IO camera Connect to camera using browser interface and select Basic Configuration->Video/Audio->Main Stream(Normal) to get to the following menu. Primary stream (Recorded stream):  25 fps  1280 x 960 ...
  • Page 39 MJPEG Select Configuration->Network->Basic Settings to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 40: X500/R500 Set Up For Hik Ds-2Cd6510D-Io

    X500/R500 IP Camera Setup Guide 12.2 X500/R500 Set up for HIK DS-2CD6510D-IO  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have HIK DS-2CD6510D-IO selected and then apply.

  • Page 41: Hik Ds-2De4215Iw-De

    X500/R500 IP Camera Setup Guide 13 HIK DS-2DE4215IW-DE 13.1 Setting up HIK DS-2DE4215IW-DE camera Connect to camera using browser interface and select Configuration->Video/Audio->Main Stream(Normal) to get to the following menu. Primary stream (Recorded stream):  25 fps  1920 x 1080 ...
  • Page 42 MJPEG Select Configuration->Network->Basic Settings to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 43: X500/R500 Set Up For Hik Ds-2De4215Iw-De

    X500/R500 IP Camera Setup Guide 13.2 X500/R500 Set up for HIK DS-2DE4215IW-DE  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have HIK DS-2DE4215IW-DE selected and then apply.

  • Page 44: Knc Hdi47

    X500/R500 IP Camera Setup Guide 14 KNC HDi47 14.1 Setting up KNC HDi47 camera Connect to camera using ONVIF Manager. Select Profile 1 via Profiles menu and then set stream via Video Streaming menu: Primary stream (Recorded stream):  25 fps ...
  • Page 45 MJPEG Select Network Settings to get to the IP address menu Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 46: X500/R500 Set Up For Knc Hdi47

    X500/R500 IP Camera Setup Guide 14.2 X500/R500 Set up for KNC HDi47  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have KNC HDi47 selected and then apply.

  • Page 47: Knc Lddi45

    X500/R500 IP Camera Setup Guide 15 KNC LDDi45 15.1 Setting up KNC LDDi45 camera Connect to camera using ONVIF Manager. Select Video Streaming menu for 0:H264: Primary stream (Recorded stream):  25 fps  1920 x 1080  H.264...
  • Page 48 MJPEG Select Network Settings to get to the IP address menu Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 49: X500/R500 Set Up For Knc Lddi45

    X500/R500 IP Camera Setup Guide 15.2 X500/R500 Set up for KNC LDDi45  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have KNC LDDi45 selected and then apply.

  • Page 50: Milesight Ms-C2973-Pb

    X500/R500 IP Camera Setup Guide 16 Milesight MS-C2973-PB 16.1 Setting up Milesight MS-C2973-PB camera Connect to camera using browser interface and select Basic Settings->Video->Primary Stream to get to the following menu. Primary stream (Recorded stream):  25 fps  1920 x 1080 ...
  • Page 51 MJPEG Select Basic Settings->Network to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 52: X500/R500 Set Up For Milesight Ms-C2973-Pb

    X500/R500 IP Camera Setup Guide 16.2 X500/R500 Set up for Milesight MS-C2973-PB  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have Milesight MS-C2973-PB selected and then apply.

  • Page 53: Synectics Sy-Fdef3

    X500/R500 IP Camera Setup Guide 17 Synectics SY-FDEF3 17.1 Setting up Synectics SY-FDEF3 camera Connect to camera using ONVIF Manager. Select Profile <Profile 1> via Profiles menu and then set stream via Video Streaming menu: Primary stream (Recorded stream): ...
  • Page 54 MJPEG Select Network- Settings to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 55: X500/R500 Set Up For Synectics Sy-Fdef3

    X500/R500 IP Camera Setup Guide 17.2 X500/R500 Set up for Synectics SY-FDEF3  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have Synectics SY-FDEF3 selected and then apply.

  • Page 56: Synectics S-Vrmdf4-2Mp

    X500/R500 IP Camera Setup Guide 18 Synectics S-VRMDF4-2MP 18.1 Setting up Synectics S-VRMDF4-2MP camera Connect to camera using browser interface and select Streaming->Video Format->Video Resolution to get to the following menu. H.264 + MJPEG Primary Stream (Recorded Stream) H.264 Format: 1920 x 1080...
  • Page 57 H264-1 Frame Rate: 13 Select System->Network->Basic to get to the IP address menu Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address.

  • Page 58: X500/R500 Set Up For Synectics S-Vrmdf4-2Mp

    X500/R500 IP Camera Setup Guide 18.2 X500/R500 Set up for Synectics S-VRMDF4-2MP  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have Synectics S-VRMDF4-2MP selected and then apply.

  • Page 59: Trendnet Tv-Ip311Pi

    X500/R500 IP Camera Setup Guide 19 Trendnet TV-IP311PI 19.1 Setting up Trendnet TV-IP311PI camera Connect to camera using browser interface and select Advanced->Video Format->Main Stream to get to the following menu. Primary stream (Recorded stream):  25 fps  1920 x 1080 ...
  • Page 60 MJPEG Select Advanced->Network->TCP/IP to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address. NB each camera will need a unique address in the same subnet.

  • Page 61: X500/R500 Set Up For Trendnet Tv-Ip311Pi

    X500/R500 IP Camera Setup Guide 19.2 X500/R500 Set up for Trendnet TV-IP311PI  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have Trendnet TV-IP311PI selected and then apply.

  • Page 62: Vivotek Md8562

    X500/R500 IP Camera Setup Guide 20 Vivotek MD8562 20.1 Setting up Vivotek MD8562 camera Connect to camera using browser interface and select Configuration->Media->Video->Stream 1 to get to the following menu. Primary stream (Recorded stream):  1920 x 1080...
  • Page 63 704 x 576 Select Configuration->Network->General Settings->Network Type to get to the IP address menu. Set the IP address. Timespace recommends this is set to one of the default IP addresses which range from 192.168.10.200 – 203, or to your chosen IP address.

  • Page 64: X500/R500 Set Up For Vivotek Md8562

    X500/R500 IP Camera Setup Guide 20.2 X500/R500 Set up for Vivotek MD8562  On the DVR, set IP address of camera in MAIN MENU > IP CAMERAS Note this has to be on the same subnet as VLAN2  Set selected type to have Vivotek MD8562 and then apply.
